Name: BD Diesel TrackMaster 68RFE Transmission
Brand: BD Diesel
SKU: VR-157051778
Price: 9655 USD
Availability: InStock

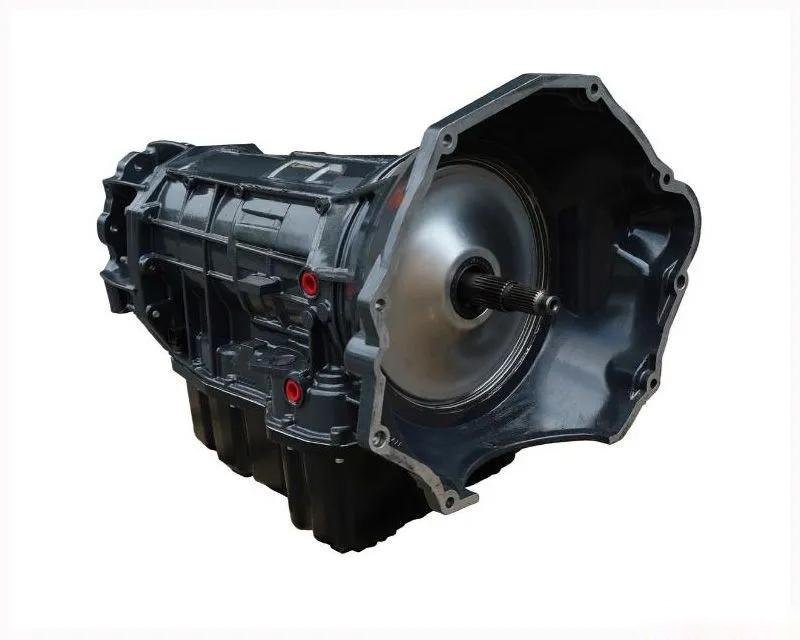

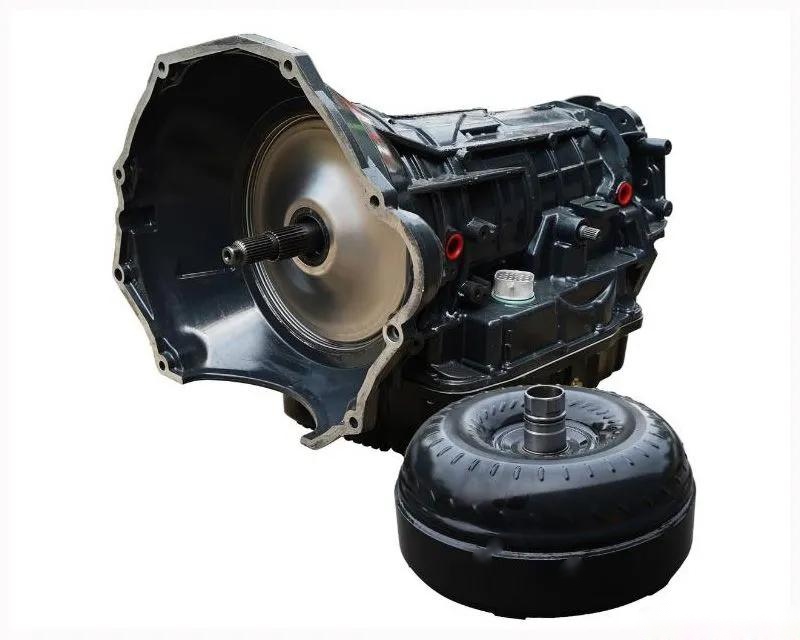

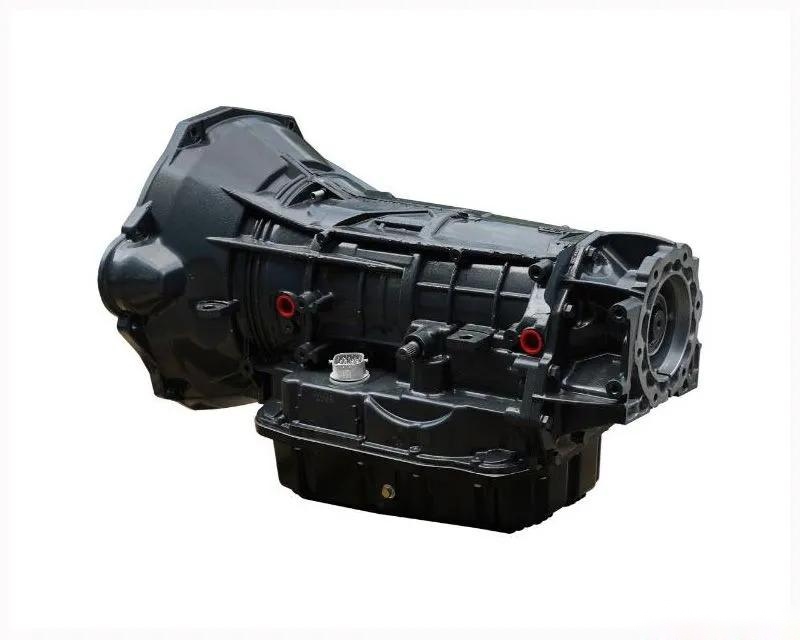

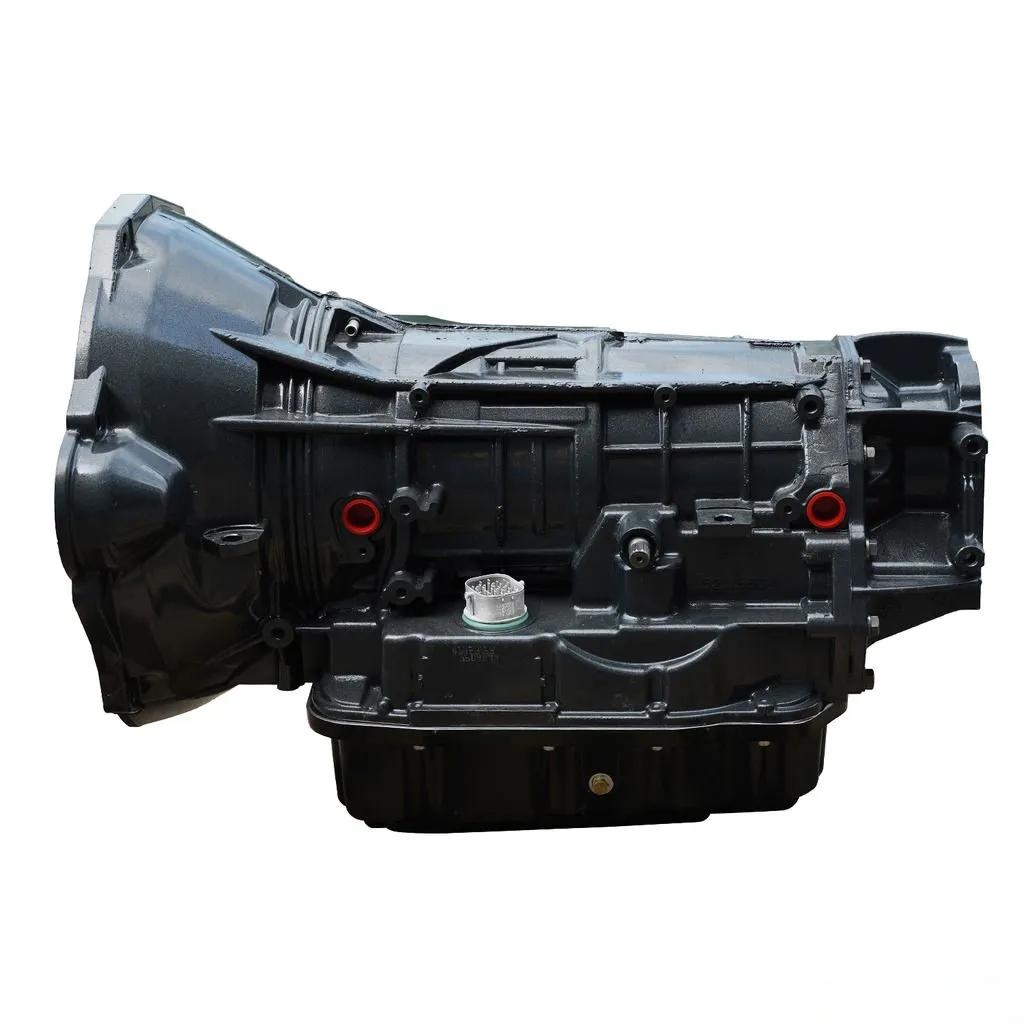

The BD TrackMaster 68RFE transmission is engineered as BD’s top-of-the-line, uncompromising performance solution for heavily modified Cummins-equipped RAM trucks. Earning its name from its proven racing pedigree and use in high-demand competition applications, this transmission is built to handle tremendous amounts of power. It features a super-duty HD billet OD drum which, combined with our BD Big Stack technology and a heavy-duty Billet Input Shaft, delivers an impressive 50% increase in total overdrive (OD) clutch apply capacity. The TrackMaster also incorporates a ProTech68 valve body that addresses common cross-leak issues, optimizes line pressure management, and enhances overall clutch holding, ensuring extreme durability and power delivery for those who tow heavy, operate hot-shot towing applications, or push their truck’s performance to its limits.

The BD Advantage:

Achieves an impressive 50% increase in total OD clutch apply capacity, thanks to the HD Billet OD
Drum and BD Big Stack OD clutch pack.
Features a heavy-duty Billet Input Shaft.
ProTech68 valve body addresses cross leaks and optimizes line pressure management for enhanced clutch holding power under load.
Multi-disc ProForce 3D torque converter

Features:

ProTech68 valve body features gasket equipped hard anodized finish eliminates internal cross leaks, and improved fluid routing for optimal pressure management.
Includes ProTech68 Pressure controller module for 250psi line pressure. (2007.5-2018 Models)
TCC limit valve machined and sleeved.
Billet steel SSV bore; thicker accumulator plate.
Heavy-duty low-reverse sprag; Billet 4c spring retainer.
Billet 2c piston girdle; QT100 billet pressure plates.
Heavy Duty Billet Input Shaft.

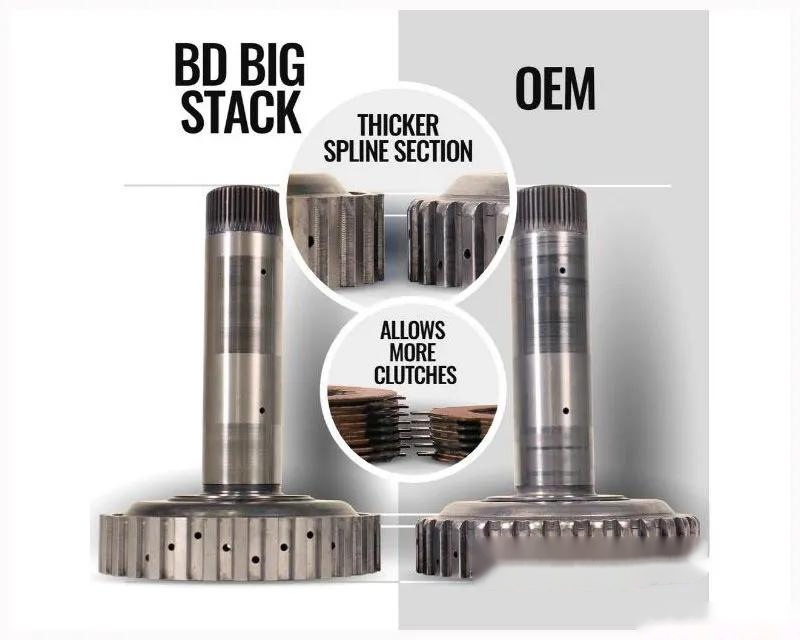

Big Stack OD shaft & Heavy-Duty Billet OD Drum.
Deep aluminum pan (additional fluid capacity).
ProForce 3D multi-disc torque converter.
Increased clutch counts in OD (8+8), Rev (2+2), 2C (3+3), 4C (3+3), UD (5+5), LR (7+7)

Fitment:
