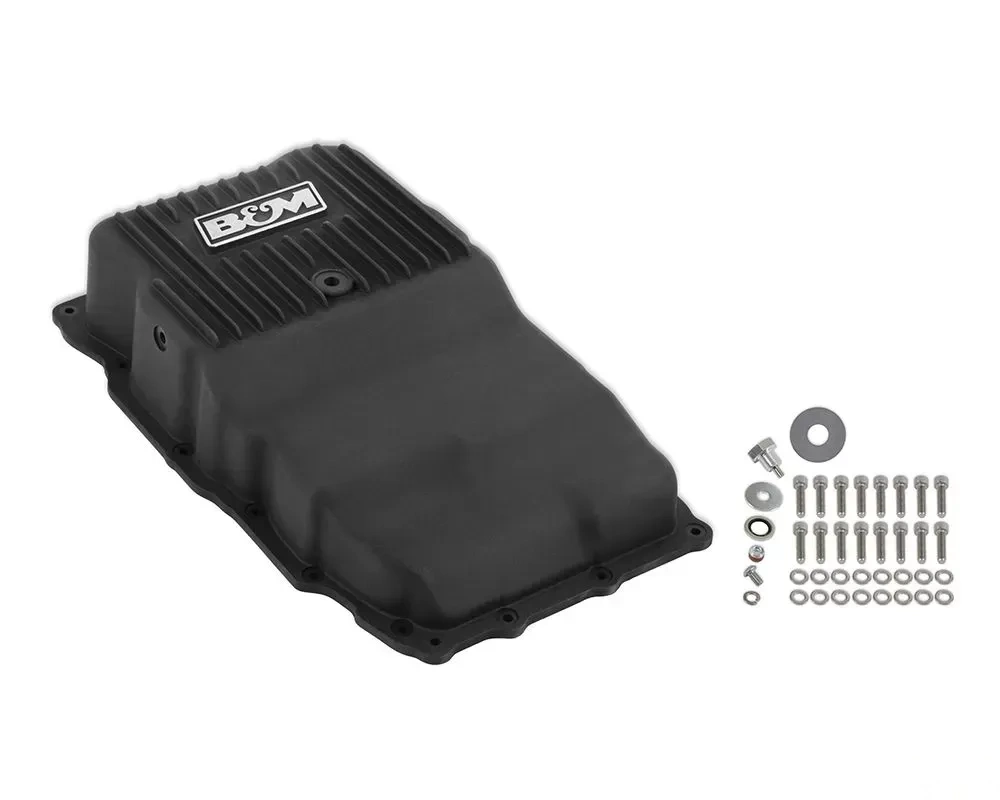

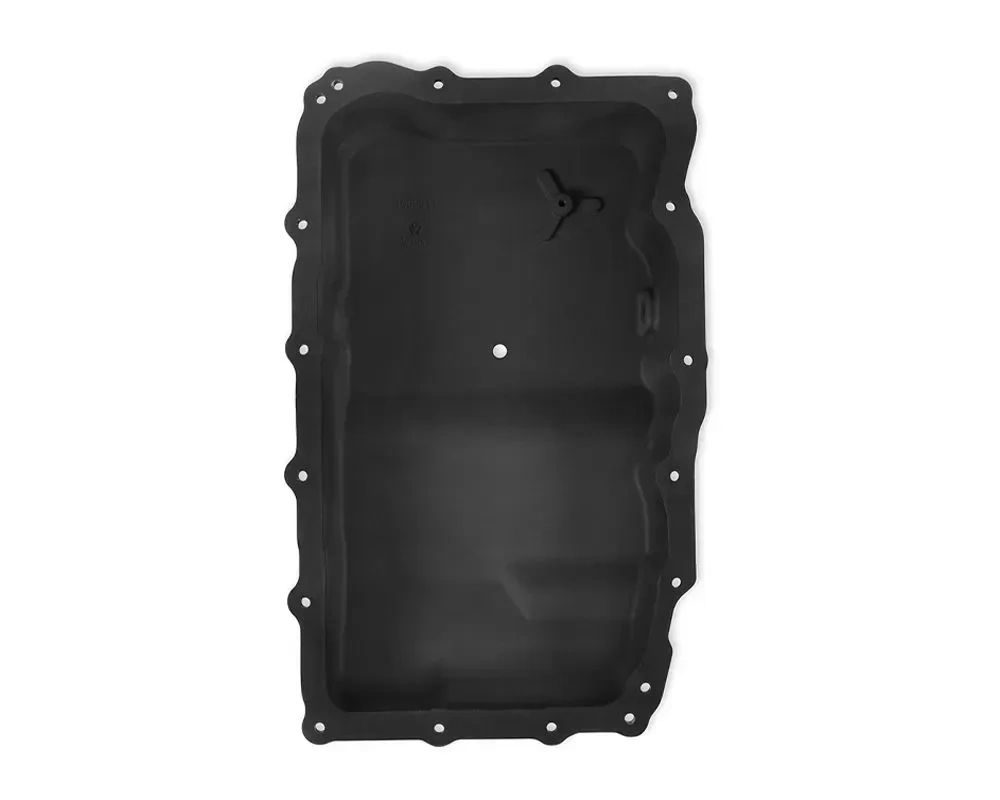

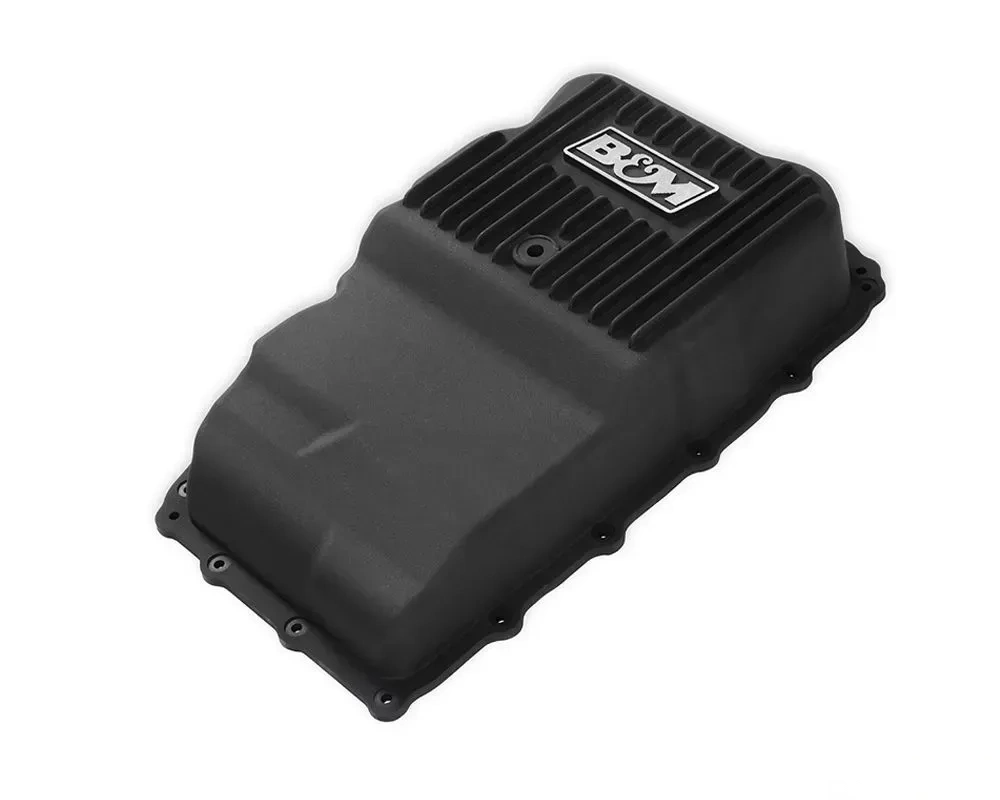

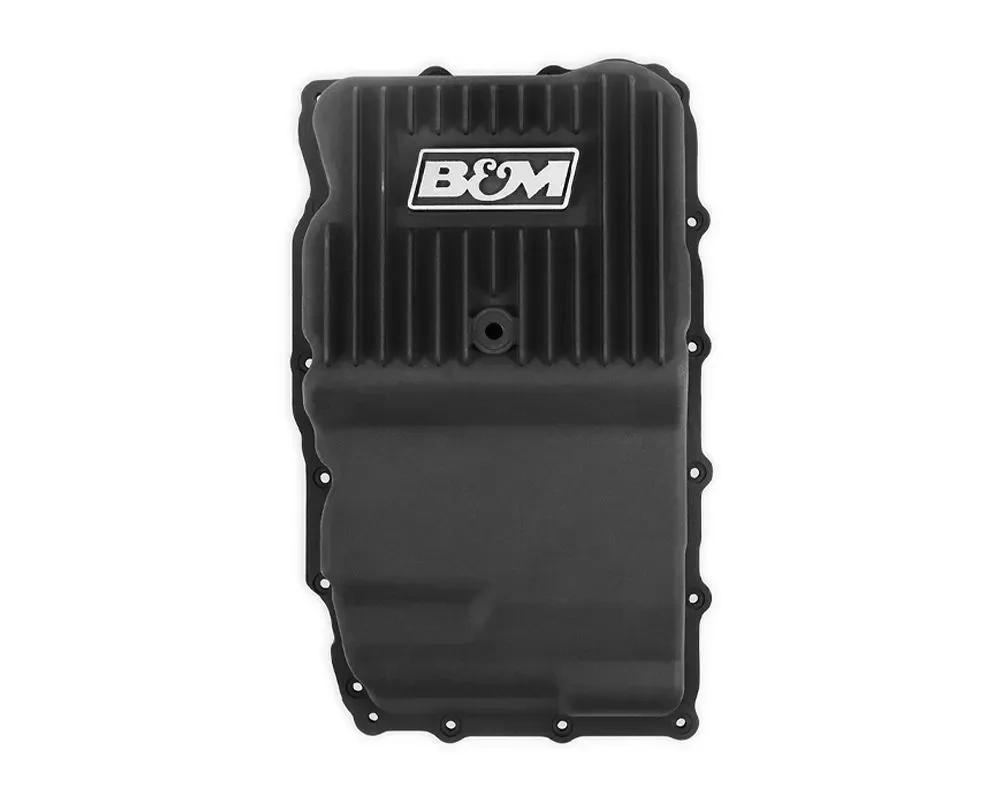

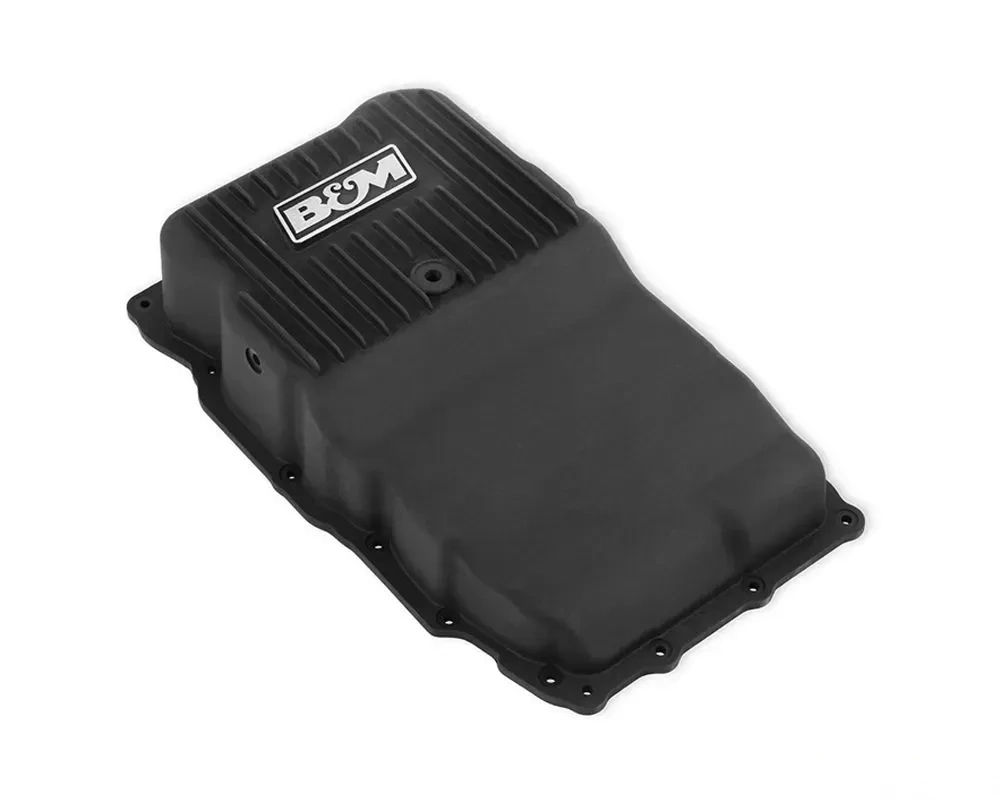

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation.

Features:

• Drain Port with Magnetic Drain Plug for Easy Servicing
• Durable A356 Aluminum Construction
• Features a Temperature Sensor Port
• Custom B&M Logo cast into the pan
• Additional 2-Quart Fluid Capacity
• Lifetime Limited Warranty
• Over 65 Years of B&M Experience and Quality
• Finned design for increased strength and cooling
• Hardware Included

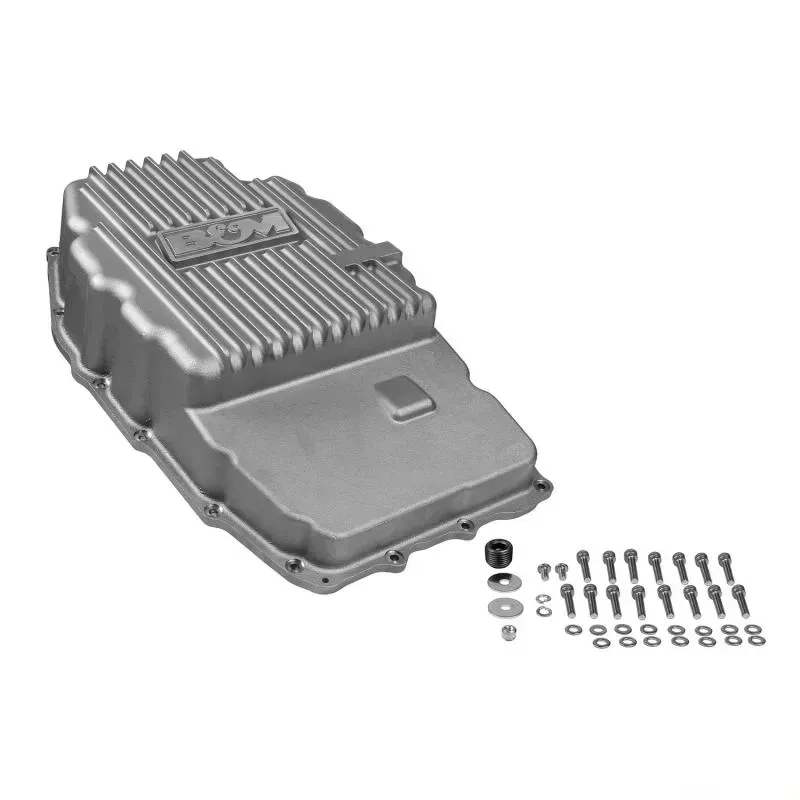

• Natural or black anodized finishes are available

Specifications:

• Additional Fluid Capacity (qts): 2
• Bolt Count: 16
• Bolt/Studs Included: Yes
• Color/Finish: Black Anodized
• Drain Plug Included: Yes
• Drain Plug Type: Magnetic
• Emission Code: 5
• Filler Plug Included: No
• Gasket Included: No
• Material: A356.0-T6 Aluminum
• Product Type: Automatic Transmission Pans
• Temp Sensor Port: Yes
• Transmission: 10L80
• Transmission Type: Automatic
• UPC:090127469392
• California Proposition 65 Chemical Name: Chromium (hexavalent compounds)
• California Proposition 65 Required: Yes

What's in the box:

• Transmission Pan and Installation Hardware

Fitment:

• GM 10L80 2017-2023

Emissions: This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
