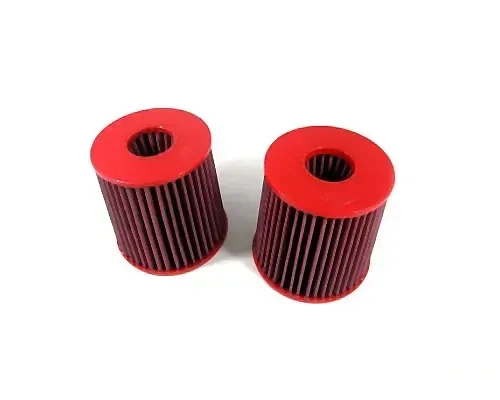

The BMC Air Filter FB742/08 was manufactured developed and, in order to guarantee a higher air passage opposite the conventional paper filter one McLaren 3.8L V8 Full Kit.

By the replacement of the paper filter with a BMC Air Filter FB742/08, with which the same technologies and materials of the formula 1 - Filter are used, clear advantages result to series vehicle also at McLaren.

The panel/cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).



Air flow chart for a sample BMC air filter against an OEM paper filter

Temperature 25°C - Humidity 25% - Pressure 1020mbar

Test ran with oem airbox, and the related air flow constrictions.

This chart has a pure illustrative purpose and does not refer to the present filter.

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.


Specifications:

• Type: cylindrical
• Inside diameter: 84 mm
• Outside diameter: 154 mm
• Length: mm

Fitment:

• McLaren 540C 3.8 V8 Full Kit 540 HP 2015-2021
• McLaren 570GT 3.8 V8 Full Kit 570 HP 2016-2021
• McLaren 570S 3.8 V8 Full Kit 570 HP 2015-2021
• McLaren 570S Spider 3.8 V8 Full Kit 570 HP 2017-2021
• McLaren 600LT 3.8 V8 Full Kit 600 HP 2018-2021
• McLaren 600LT Spider 3.8 V8 Full Kit 600 HP 2019-2021
• McLaren 620R 3.8 V8 Full Kit 620 HP 2020-2021
• McLaren 625C 3.8 V8 Full Kit 625 HP 2015-2016
• McLaren 625C Spider 3.8 V8 Full Kit 625 HP 2015-2016
• McLaren 650S 3.8 V8 Full Kit 650 HP 2014-2017
• McLaren 650S Can-Am Spider 3.8 V8 Full Kit 650 HP 2015-2016
• McLaren 650S Spider 3.8 V8 Full Kit 650 HP 2015-2017
• McLaren 675LT 3.8 V8 Full Kit 675 HP 2015-2017
• McLaren 675LT Spider 3.8 V8 Full Kit 675 HP 2016-2017
• McLaren MP4 12C 3.8 V8 Full Kit 600 HP 2011-2014
• McLaren MP4 12C 3.8 V8 Full Kit 625 HP 2011-2014
• McLaren MP4 12C Spider 3.8 V8 Full Kit 625 HP 2011-2014
