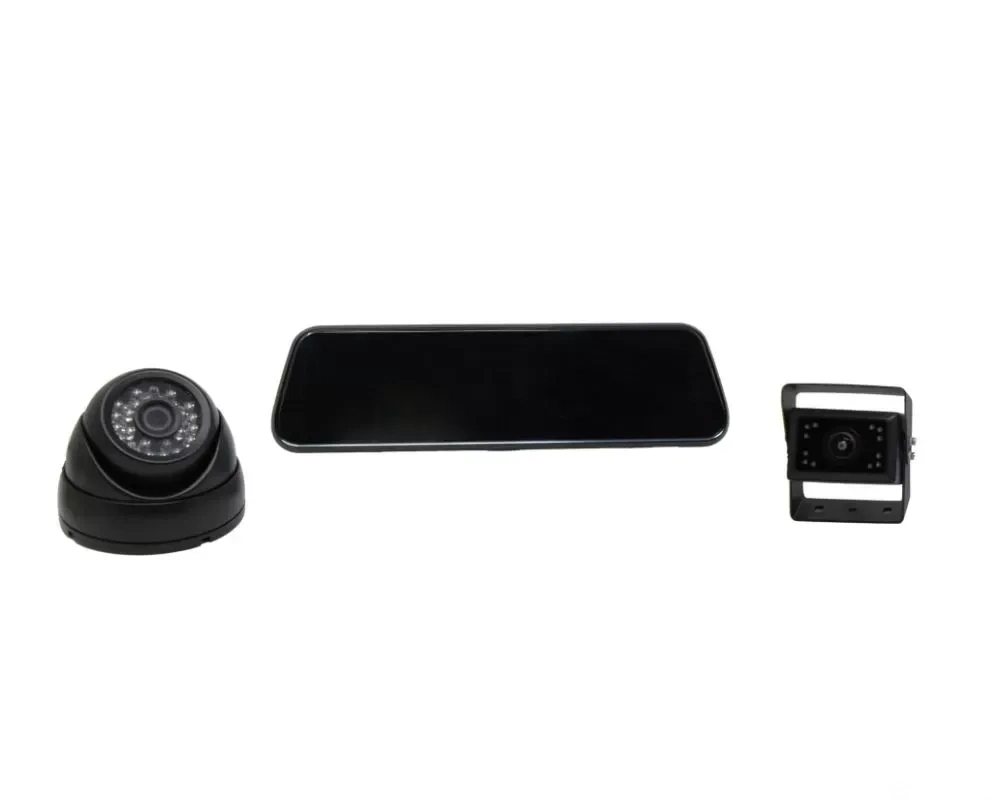

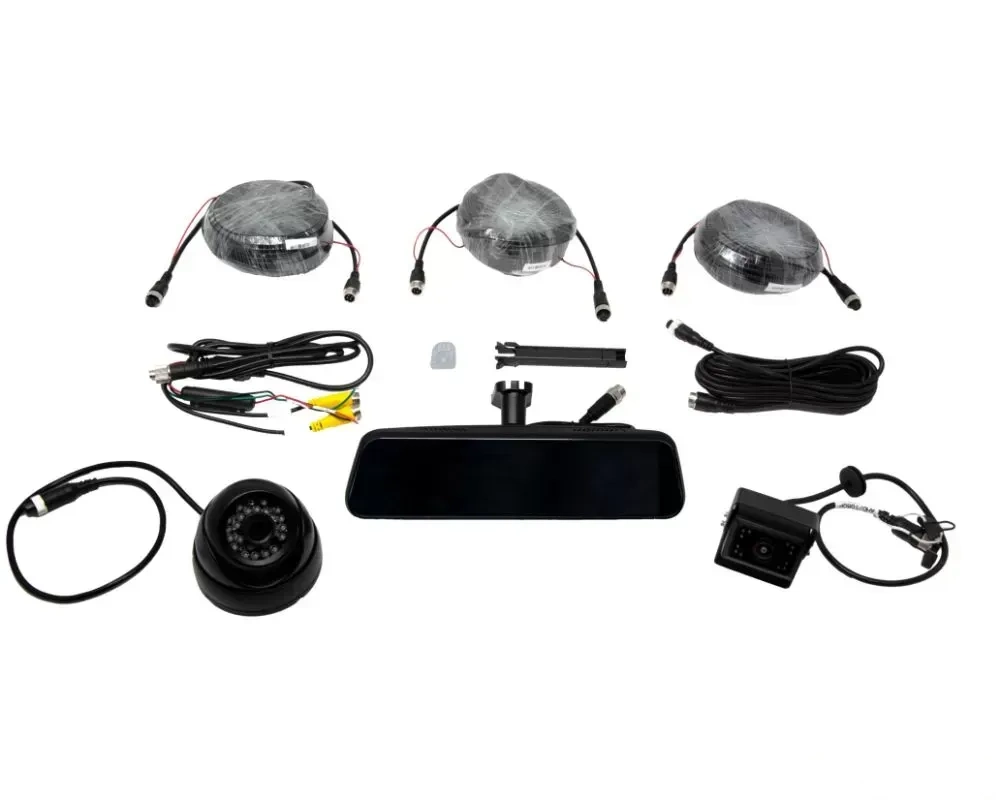

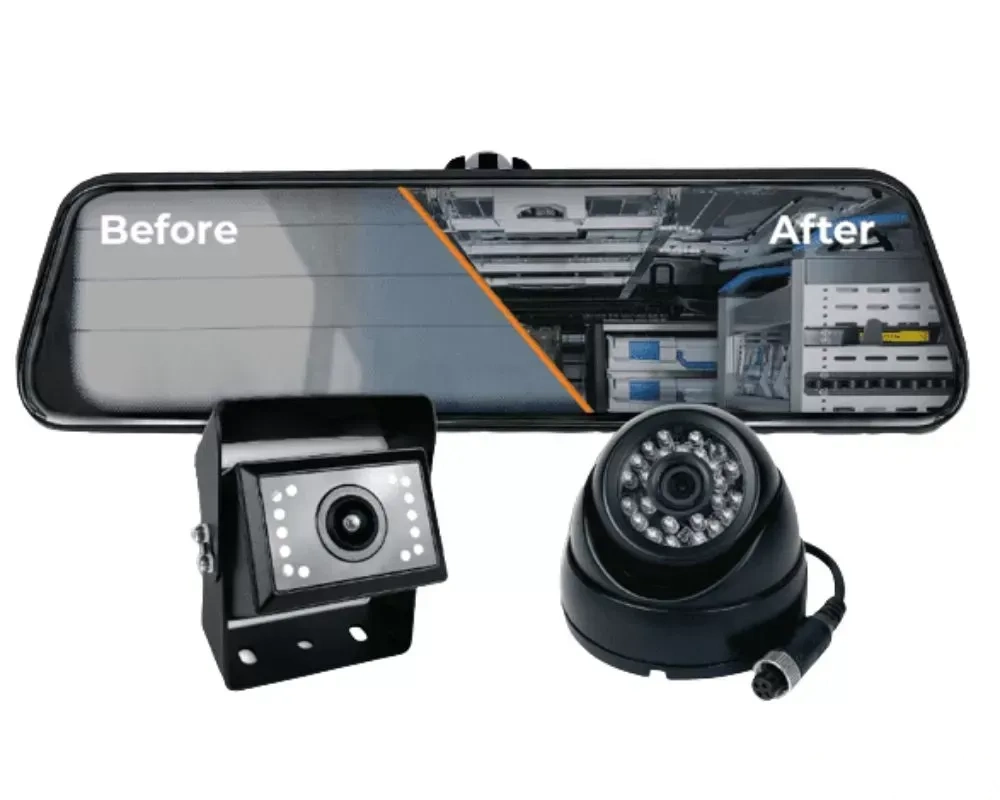

Introducing the Industry's First Integrated Digital Mirror Cargo Vision System. Brandmotions FVMR-1160 is a 2 camera input, switchable mirror that gives real-time access to monitor cargo for shifts and prevent losses with a secondary rear-view camera for improved driver safety. This integrated design gives a high-quality OEM look with IR Night vision to see in all lighting conditions and an IP68 rating for all weather conditions

Compatibility

This mirror utilizes a D-Tab Wedge Mount. You may need an adaptor to use this mirror on your vehicle. Please see our Rear Vision Application Guide for compatibility questions.

Features:

• Integrates into Your Truck & Trailer
• Clever Design Allows for Multiple Uses
• Heavy-Duty Design for Increased Durability

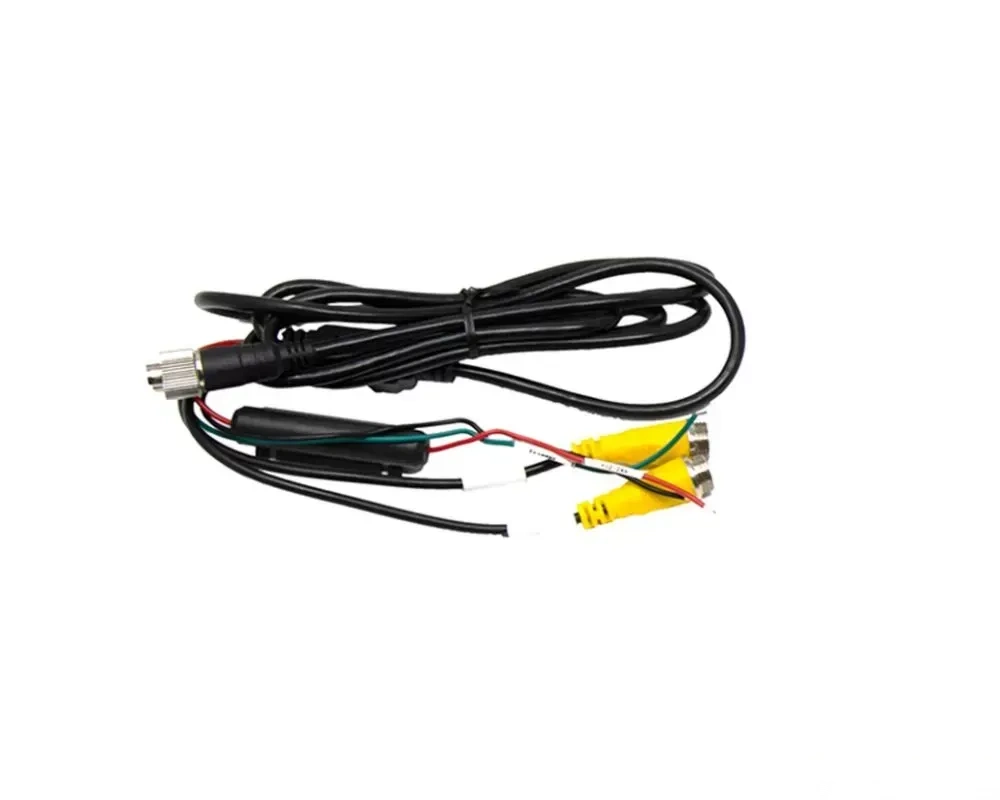

• Ultra-High Quality Truck-to-Trailer Quick Disconnect Wiring

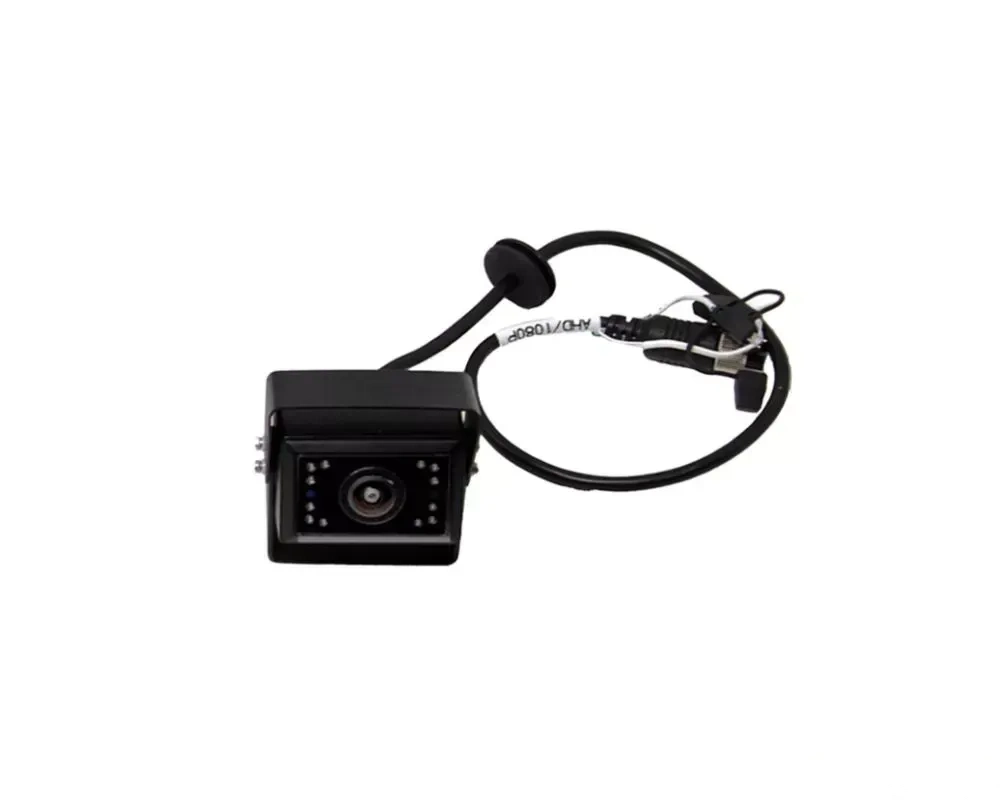

Rear Vehicle Camera Specifications:

• Industrial Grade CMOS Camera
• 1280 x 390 Resolution 480p
• Camera dimensions: 2.5" Wide x 2.2" Deep x 2.3" Tall (Bracket Adds 1.5" Height)
• Included Harnessing
• 1920 x 1080 Resolution 1080p
• 0.1 Lux with Infrared for Better Illumination & Sharper Image
• Parking Gridlines Available
• Format: NTSC
• Not OnStar Compatible
• 9-16 V Operating Voltage Range
• Electric Auto Iris
• 170° Horizontal Field of View
• 130° Vertical Field of View
• Waterproof & Shockproof Case
• IP 68 Equivalent

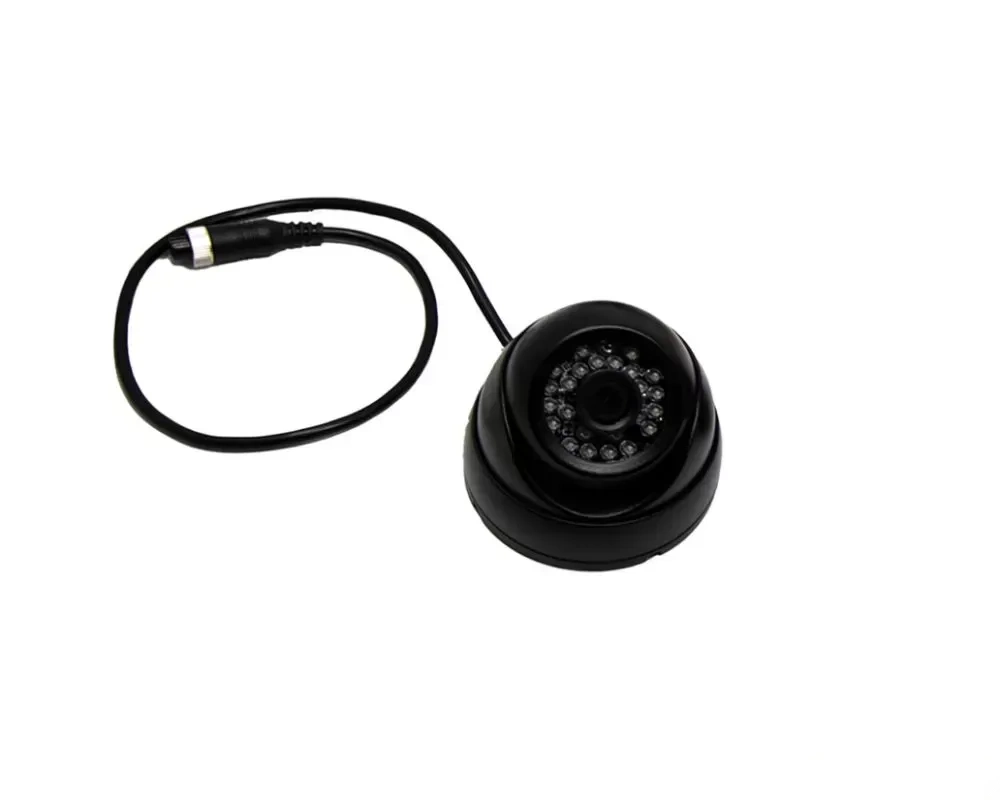

Cargo Box Camera Specifications:

• Industrial Grade CCD Camera
• 1920 x 1080 Resolution 1080p
• 0.1 Lux with Infrared for Better Illumination & Sharper Image
• Parking Gridlines Available
• Format: NTSC
• 9-16 V Operating Voltage Range
• Color Image with Automatic White Balance
• Electric Auto Iris
• 150° Wide Viewing Angle
• Shockproof Case
• 4-Pin Aviation Connector
• Round Swivel & Fully Adjustable Mounting

Mirror Specifications:

• Large, Vibrant 9.66" Full Color Display
• 1980 x 320 Resolution 1080p
• 9.66" Mirror with Edge-to-Edge Display Embedded
• 2 Inputs (4 Pin Aviation)
• 16:9 Aspect Ratio
• Format: NTSC & PAL
• 12-24 V Operating Voltage Range
• 2 Inputs Selectable via Bottom Button
• Mirror Functionality by Holding Bottom Button
• No Parking Gridline Overlay (May be Supplied by Camera)

Installation:

• DIY Installation Estimate: 90-120 Minutes
• Professional Installation Estimate: 60-90 Minutes
• Installation

Notes:

• This mirror will only function with the supplied camera in the kit, at this time you cannot use any other camera on this mirror.
• You are not required to hook up the reverse wire for this mirror to function. Hooking up the reverse wire will remove the fisheye effect of the camera and will overlay parking gridlines.
