Brandmotion's latest FullVUE Mirror is here to reset your driving experience by helping you see what you've never seen before. This versatile new safety and convenience aid replaces your current rearview mirror with a full HD video screen. It improves on your traditional mirror by providing a clear, crisp view of exactly what you need to see with no obstructions of passengers, cargo or small rear windows. It comes with unbeatable features and a commitment to driver peace of mind.

Integration:

• Integrates Seamlessly Into Your Vehicle
• Utilizes D-Tab Wedge Mount Bracket for JK, JL/JT Specific 3 Bolt Mirror Mount

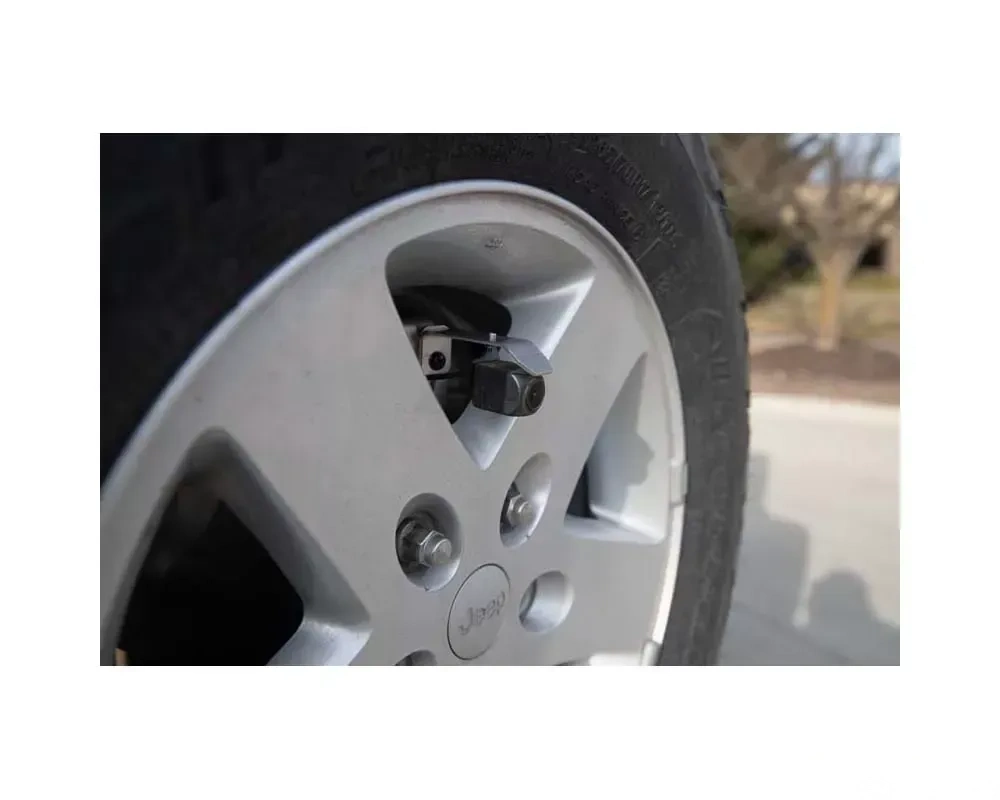

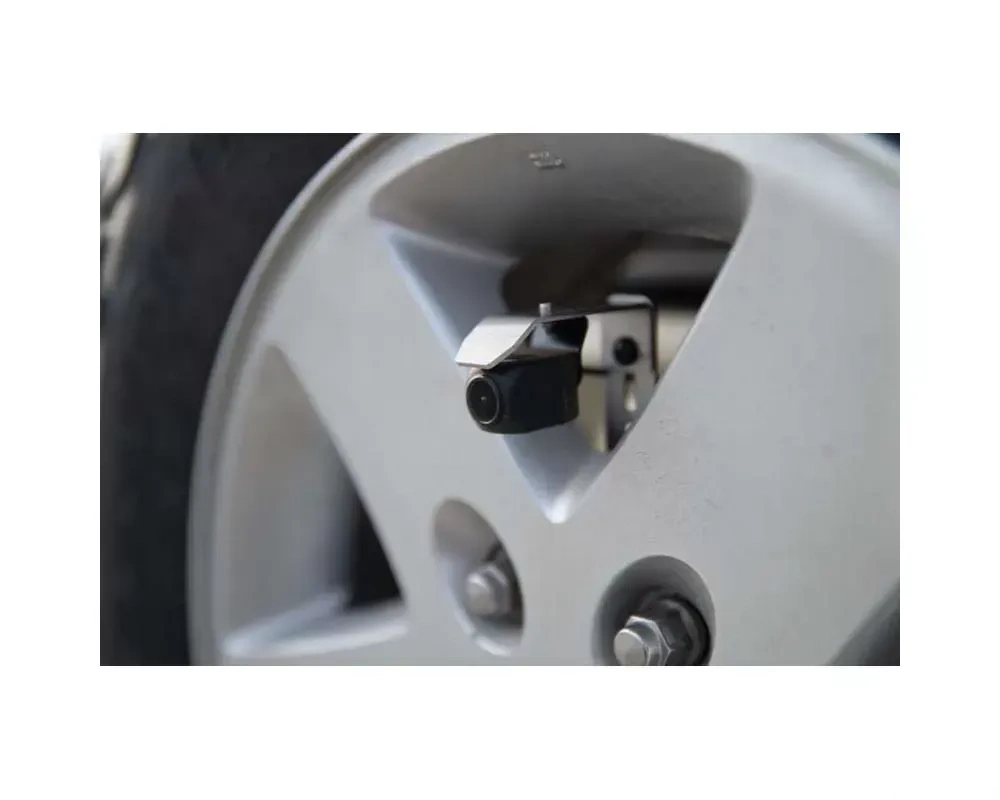

• Includes Spare Tire Stainless Steel Mount and Universal Mount
• 9.66" Mirror Size
• 2 Channel DVR System

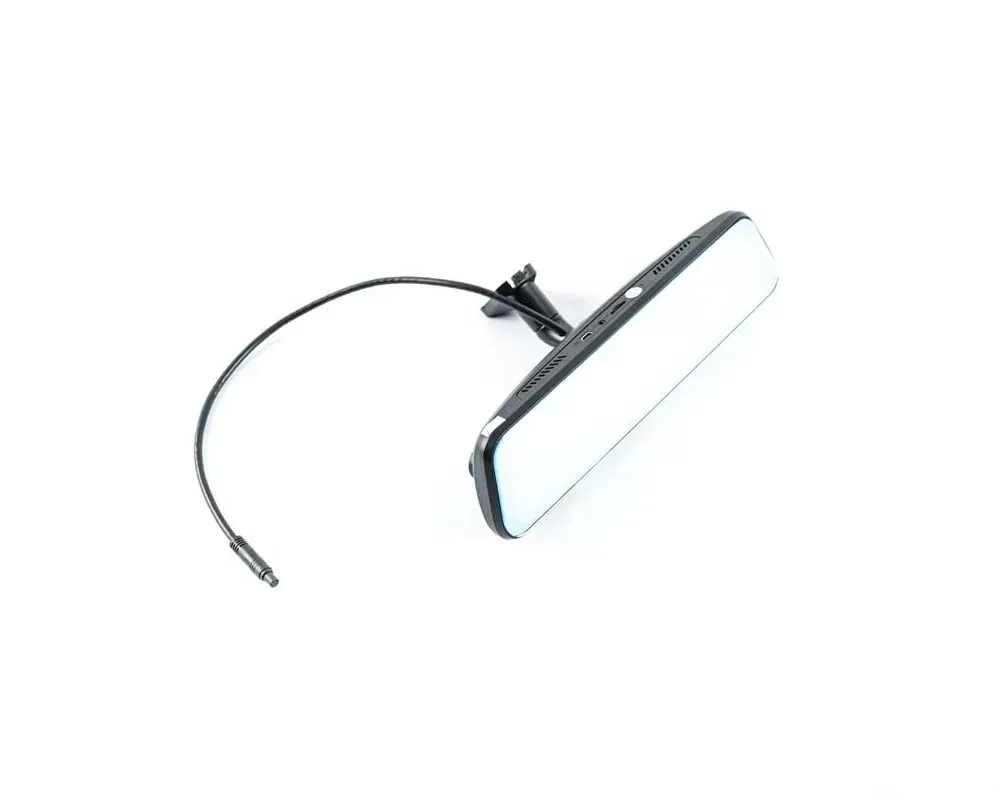

Mirror Specifications:

• Full Touchscreen For Easy Adjustments
• Advanced Anti-Glare Tempered Glass Screen
• Retains Standard Mirror Functionality With One Touch
• Super HD 1980 x 320 Resolution Display
• Bright 800 Lux Display
• Automatic Brightness Adjustment
• 2 Channel DVR Functionality
• Full Video Playback Capable Mirror
• Optional G-Shock Park Monitoring
• Optional 50 or 60 FPS Refresh Rate
• Built-In G-Shock Sensor For Automatic Event Recording
• Built-In DVR Recording Camera
• Included 32 GB SD Card

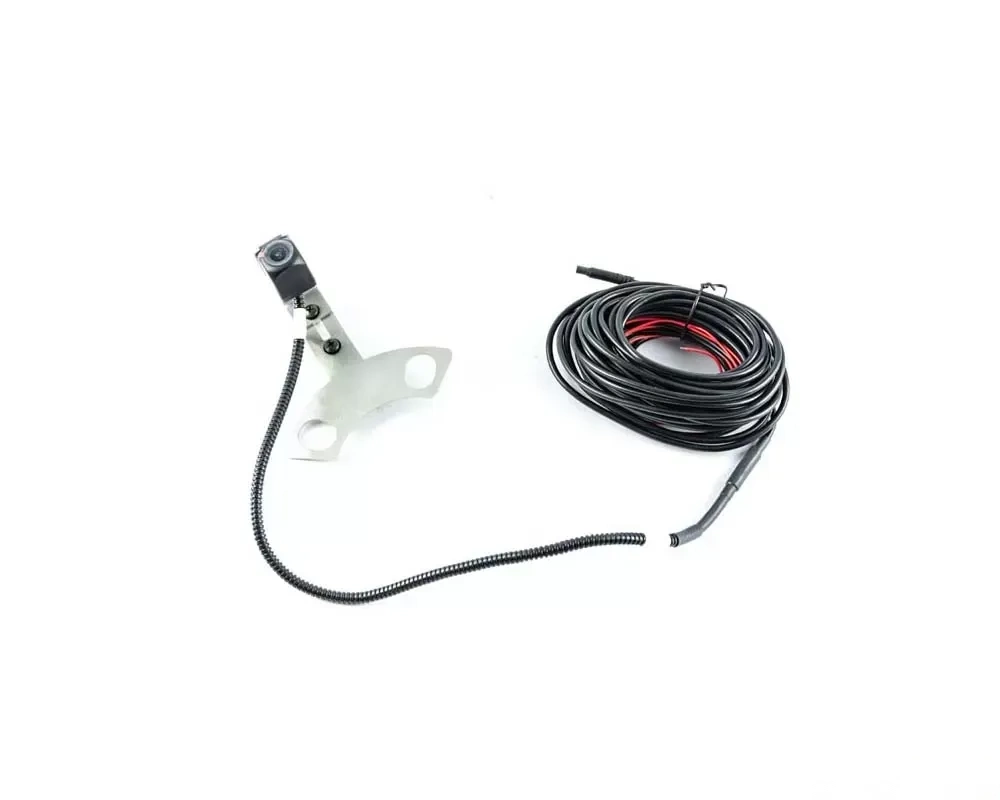

Camera Specifications:

• Ultra High Performance Sony CCD HD Camera
• 9m Long Harness
• 1920 x 1080 Resolution 1080p 30 FPS Rear Camera
• 1920 x 1080 Resolution 1080p 25 FPS Front Camera
• 6G 1.8mm Aperture Lens
• 1 Lux For Better Illumination And A Sharper Image
• Parking Gridlines Available
• Format: NTSC
• 11-24V Operating Voltage Range
• Color Image With Automatic White Balance
• Electric Auto Iris
• 150° Vertical Field of View Thru Electronic Scrolling Functionality
• Waterproof Case
• IP 67 Equivalent

Installation:

• Professional Installation Always Recommended
• DIY Installation Estimate: 90-120 Minutes
• Professional Installation Estimate: 60-90 Minutes

Compatibility:

• This kit is designed for virtually any wheel, optional parking gridlines, and replaces the standard mirror.

Fitment:

• Jeep Wrangler JK 2007-2018
• Jeep Wrangler JL 2018-2021
• Jeep Gladiator JT 2018-2021

Notes:

• Installation Instructions
• Installing this product on a Jeep JL equipped with the SOS/Assist Functionality will render the system inoperable. At this time we do not offer a solution for this system. Install at your own discretion.
• The reverse trigger wire function is only for the Jeep Wrangler JK, there is not an analog trigger in the Jeep Wrangler JL or the Jeep Gladiator JT.
• This mirror will only function with the supplied camera in the kit, at this time you cannot use any other camera on this mirror.
• You are not required to hook up the reverse wire for this mirror to function. Hooking up the reverse wire will remove the fisheye effect of the camera and will overlay parking gridlines.
• For customers looking to retain their third brake light with oversized tires on their Jeep Wrangler JK, please see SUTV-8894.
• This kit is designed to only work on the Jeep Wrangler JK,JL and the Gladiator JT. If you are looking for a universal kit, please see FVMR-1100.
