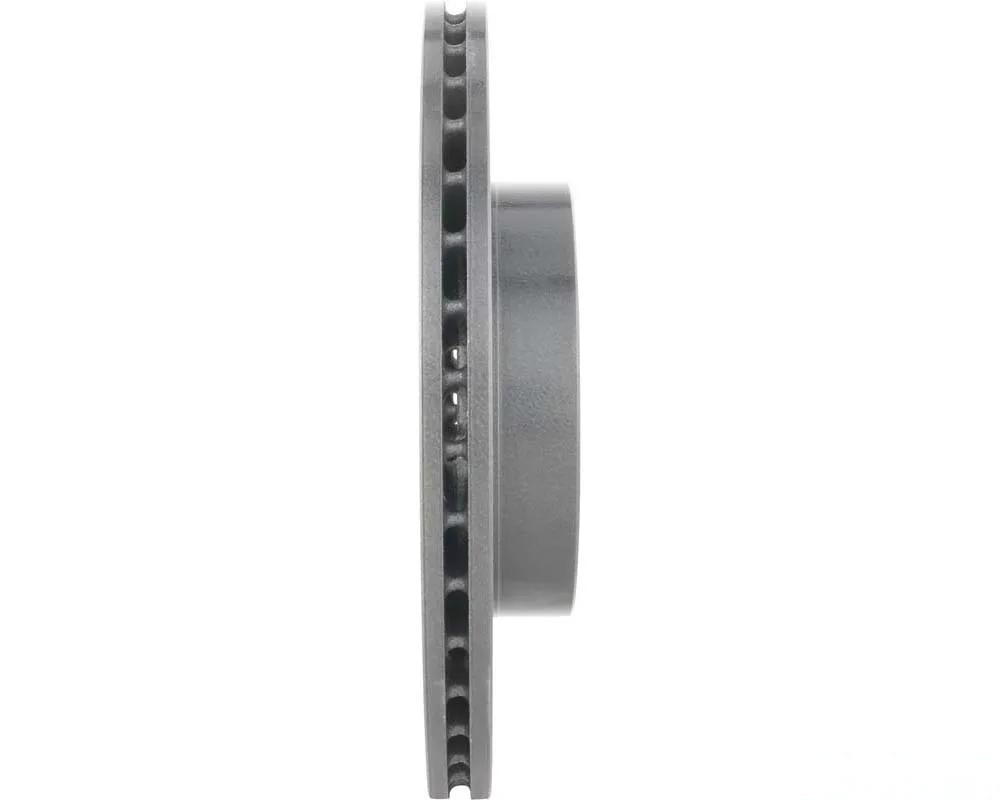

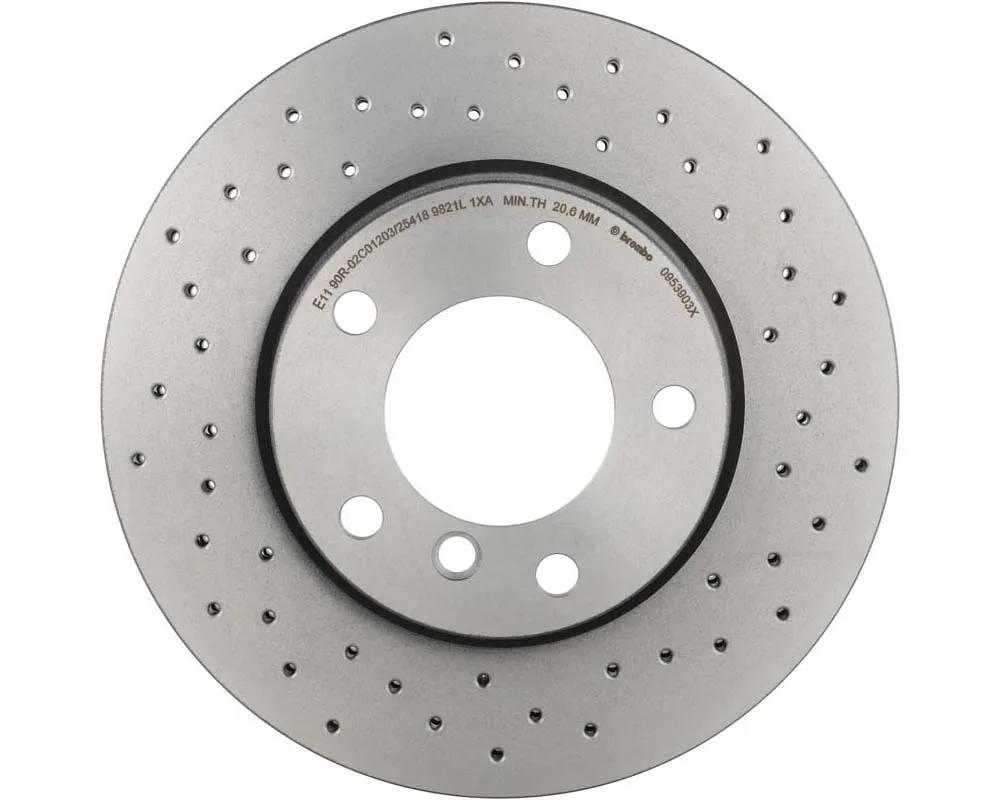

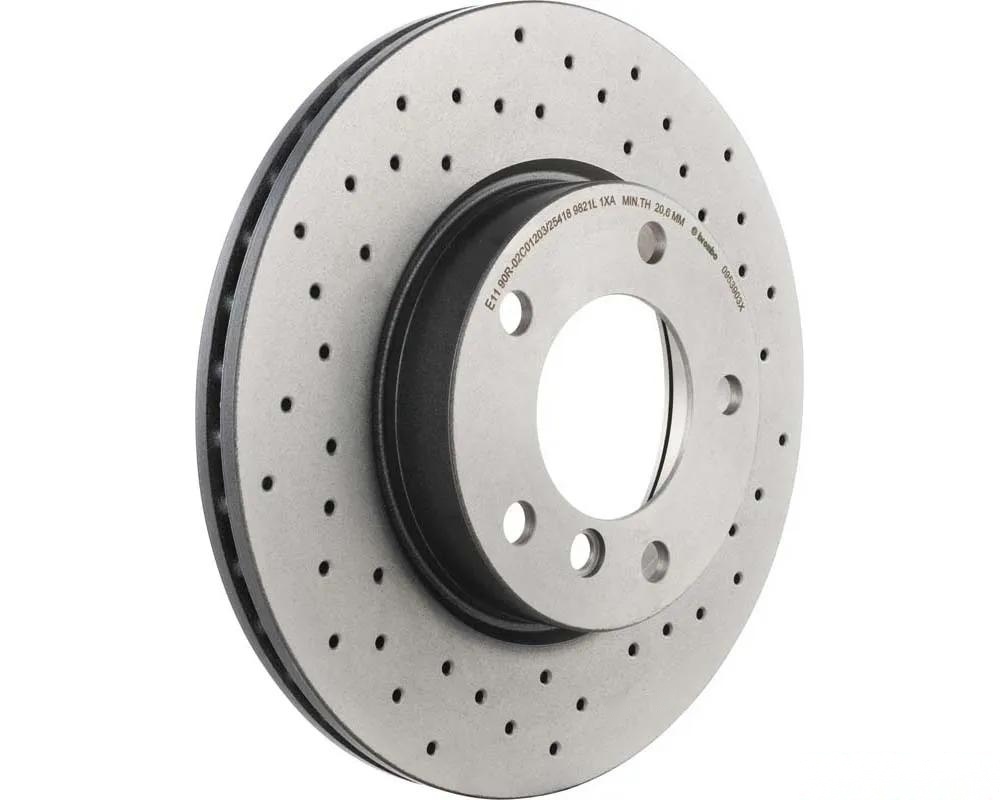

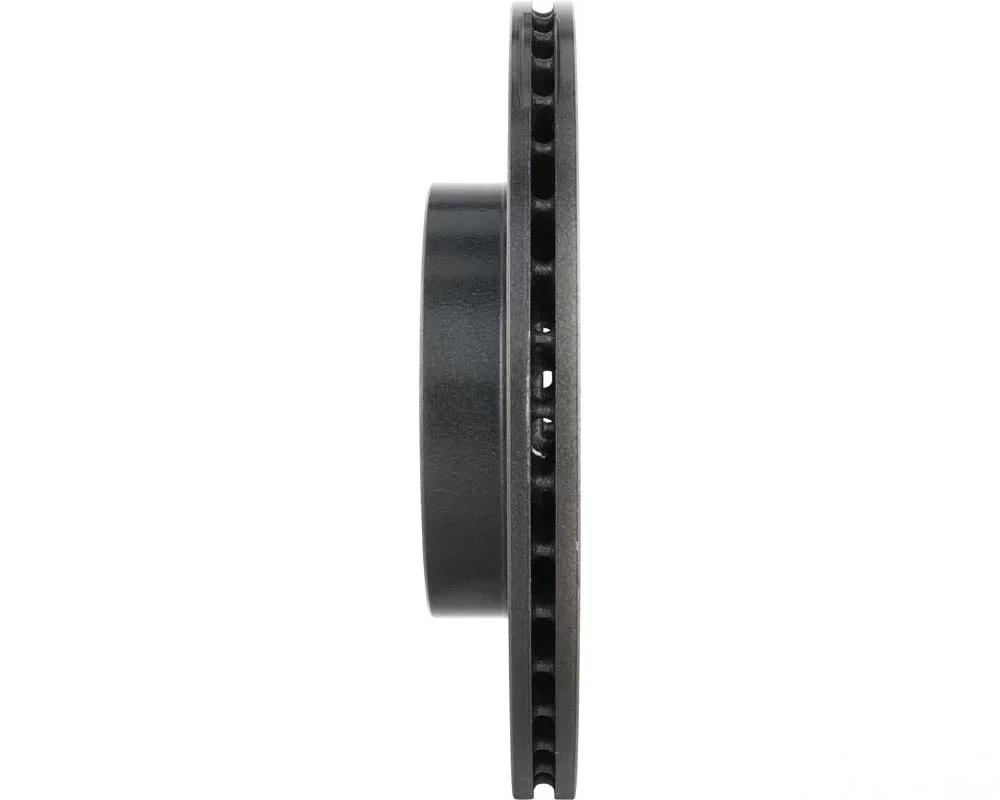

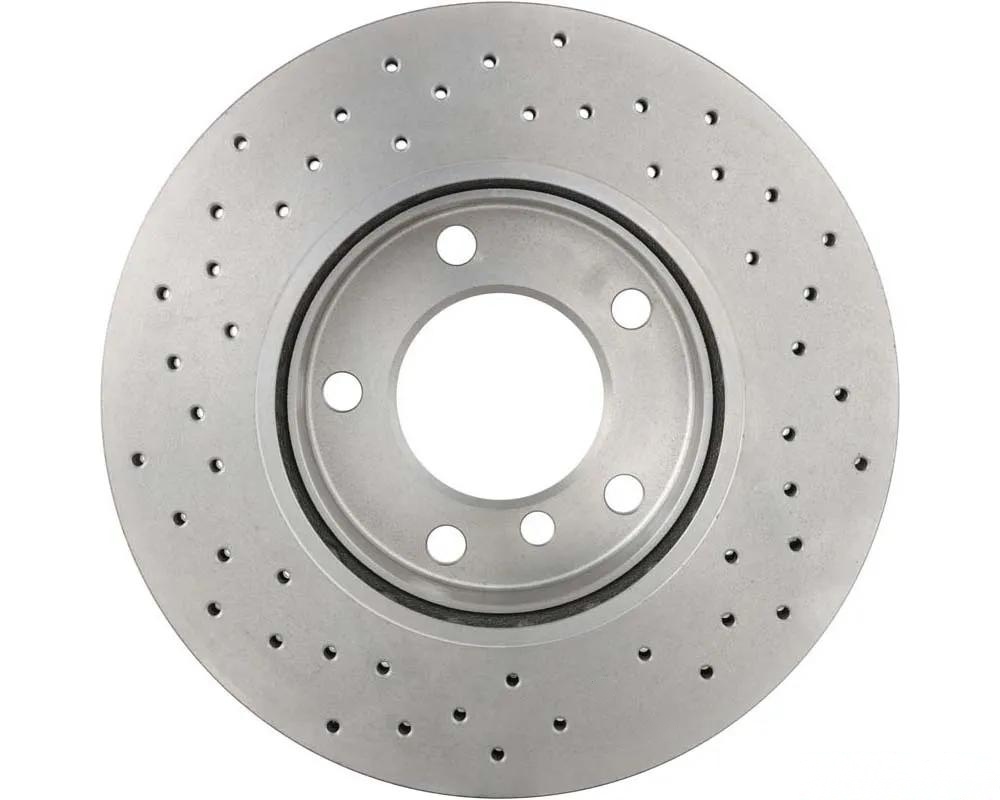

Brembo UV Coated Rotors (Part No. 09.5390.3X)

Upgrade your braking system with the Brembo UV Coated Rotors, designed as a direct replacement that meets or exceeds OEM specifications for select BMW models. These rotors are not just about looks; they deliver real-world performance improvements that you can feel behind the wheel.

Why Choose Brembo?

Brembo is synonymous with high-performance braking, and their UV Coated rotors are no exception. The environmentally friendly, solvent-free UV coating provides superior protection for the disc, ensuring that your braking plate surfaces stay in top condition even under demanding conditions. Made from high carbon cast iron, these rotors minimize noise and vibration, enhancing your driving comfort without sacrificing performance.

Easy Installation

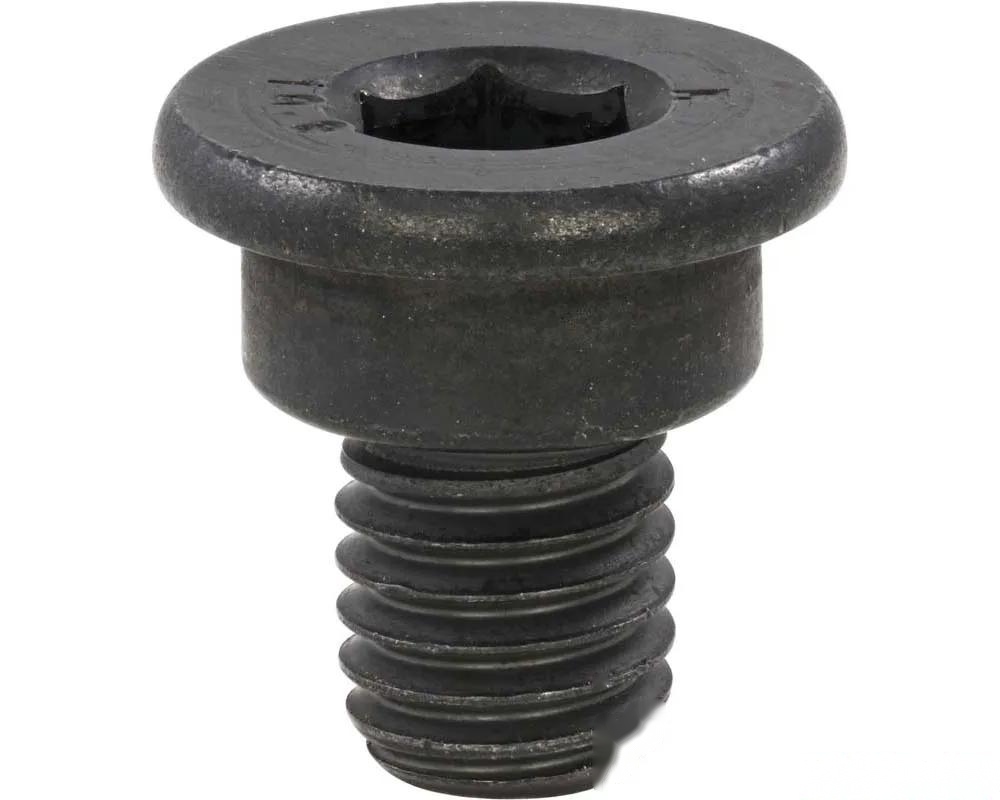

Worried about installation? Don't be. Each set of UV Coated rotors comes with a fixing screw kit and all the necessary hardware, making the installation process straightforward and hassle-free. Plus, with new intelligent marking locations that show the part number and minimum thickness, you can be confident in your setup.

Optimal Performance

To truly optimize your braking performance, it’s recommended to replace your rotors and pads together. Pair these rotors with Brembo's NAO/Ceramic or Low Met brake pad formulations for the best results. Whether you're commuting or hitting the track, this combination will give you the stopping power you need.

Technical Specifications

• Minimum Thickness (MM): 20.6
• Braking Surface: Drilled
• Torque Spec (NM): 120
• Centering Diameter (MM): 79
• Number of Holes: 5
• Fixing Screws: Included
• Nominal Thickness (MM): 22
• Outside Diameter (MM): 286
• Height (MM): 51.6
• Solid or Vented Type Rotor: Vented
• Rust Resistant Coating: UV Coated
• Material: High Carbon

Fitment

These Brembo rotors are compatible with the following BMW models:

• BMW 318i (1992-1998)
• BMW 318is (1992-1997)
• BMW 318ti (1998-1999)
• BMW 320i (1992-1994)
• BMW 323Ci (2000)
• BMW 323i (1998-2000)
• BMW 323is (1998-1999)
• BMW 325i (1992-1995)
• BMW 325is (1992-1995)
• BMW 328i (1996-1999)
• BMW 328is (1996-1999)
• BMW Z3 (1997-2002)
• BMW Z4 (2003-2005)

Customer Feedback

“After installing these rotors on my 1998 BMW 328i, I noticed a significant difference in braking response. The drilled surface not only looks great but also provides the stopping power I was looking for. Highly recommend pairing them with Brembo pads for the ultimate setup!”

Make the smart choice for your BMW today with Brembo's UV Coated Rotors—where performance meets reliability.
