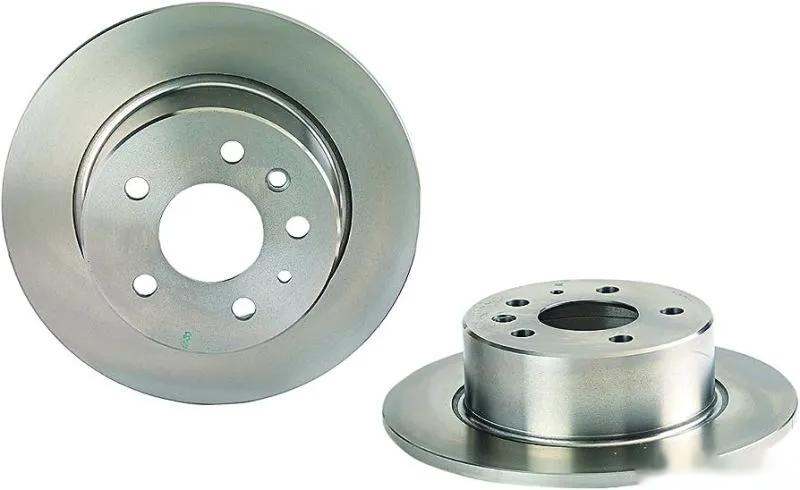

Brembo 09.7787.11 Premium UV Coated Front Brake Rotor

The Brembo 09.7787.11 Premium UV Coated Front Brake Rotor is engineered as a direct replacement that meets or surpasses OEM specifications. This rotor is designed specifically for the Ford F-150 models from 1997 and 1999-2004, ensuring a precise fit and reliable performance.

Construction and Material

Manufactured from high carbon cast iron, the rotor minimizes noise and vibration, enhancing overall driving comfort. The UV coating is both environmentally friendly and solvent-free, providing superior protection against corrosion and wear on the braking surfaces.

Specifications

• Minimum Thickness: 24.5 mm
• Nominal Thickness: 26 mm
• Height: 52 mm
• Outside Diameter: 308 mm
• Number of Holes: 5
• Type: Vented rotor
• Material: Grey Cast Iron
• Rust Resistant Coating: UV Coated

Installation Notes

The rotor comes with a fixing screw kit, including all necessary hardware for straightforward installation. To optimize braking performance, it is recommended to replace both rotors and brake pads simultaneously. For best results, consider pairing the Brembo rotor with their NAO/Ceramic or Low Met brake pad formulations.

With the Brembo 09.7787.11, you’re investing in a product that combines durability, performance, and ease of installation, making it a top choice for your Ford F-150 braking system.
