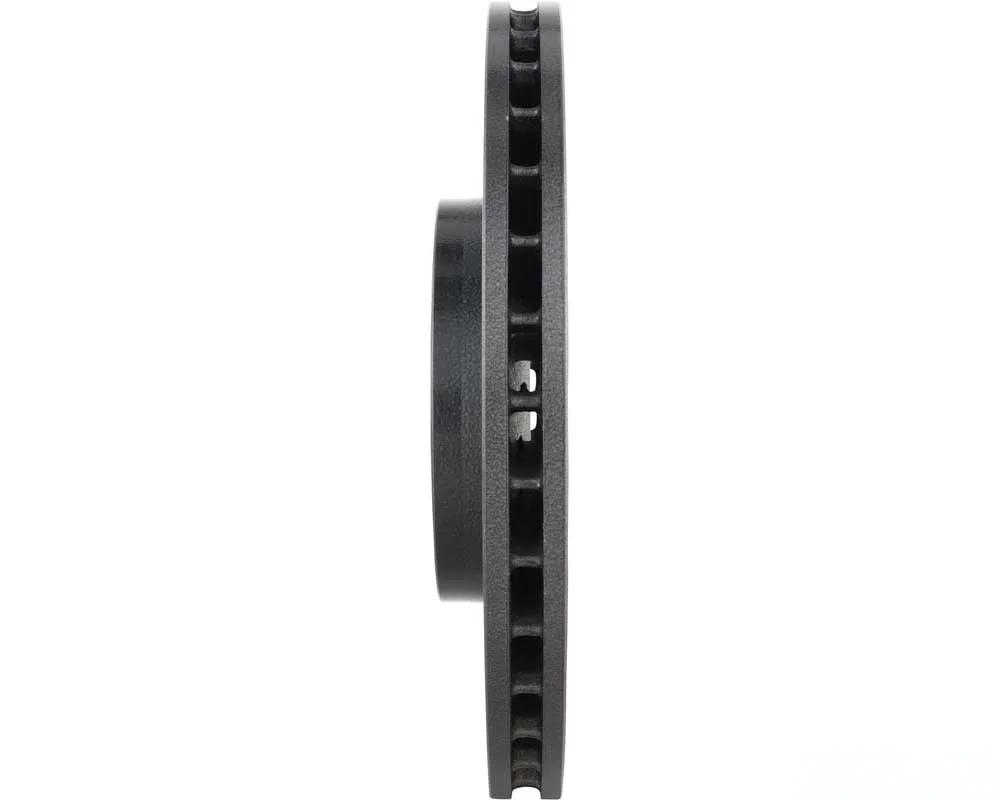

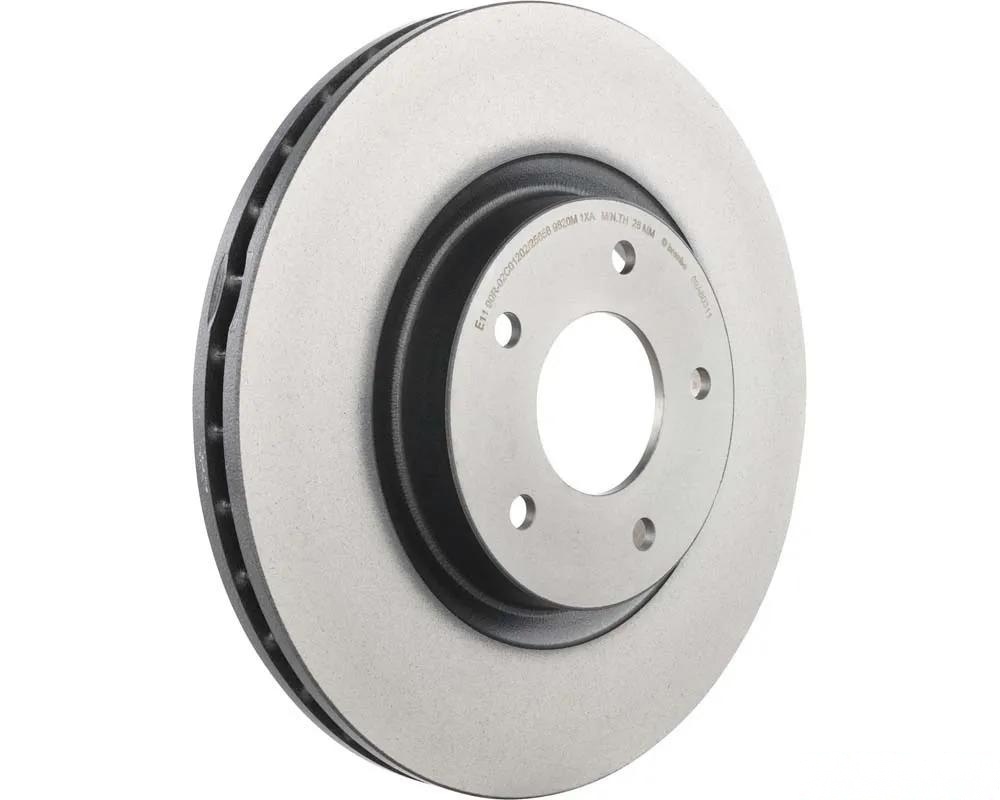

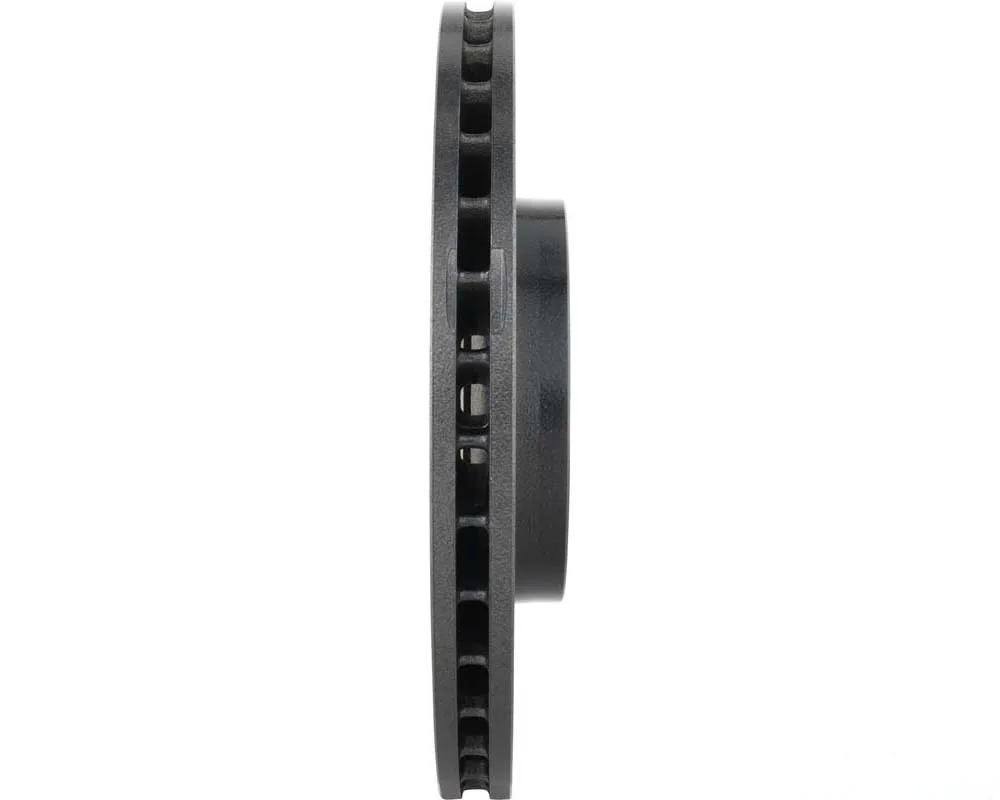

Brembo Brakes 09.A603.11 - Premium UV Coated Front Brake Rotor

If you’re looking for a reliable and high-performance brake rotor, the Brembo 09.A603.11 is an excellent choice. Designed as a direct replacement, this rotor meets or exceeds OEM specifications, ensuring that you get the quality and performance you expect from Brembo, a name synonymous with braking excellence.

One of the standout features of the 09.A603.11 is its environmentally friendly UV coating. This solvent-free finish provides superior protection for the braking surfaces, making it less prone to wear and corrosion. Customers have noted that this coating not only enhances durability but also helps maintain the rotor’s appearance over time.

The rotor is crafted from high carbon cast iron, which significantly reduces noise and vibration during operation. This material choice not only enhances performance but also contributes to a smoother driving experience. Many users have commented on the noticeable difference in comfort and responsiveness when switching to Brembo rotors.

Installation is straightforward thanks to the included fixing screw kit, which comes with all the necessary hardware. The intelligent marking on the rotor clearly displays the part number and the minimum thickness, making it easier for you to track maintenance requirements.

For optimal braking performance, it’s recommended to replace both rotors and pads simultaneously. Pair the 09.A603.11 with Brembo’s NAO/Ceramic or Low Met brake pad formulations for a complete upgrade.

Technical Specifications

• Torque Spec (NM): 103
• Minimum Thickness (MM): 26
• Centering Diameter (MM): 73.8
• Number of Holes: 5
• Outside Diameter (MM): 325
• Solid or Vented Type Rotor: Vented
• Nominal Thickness (MM): 28
• Height (MM): 49.5
• Rust Resistant Coating: UV Coated
• Material: Grey Cast Iron

Vehicle Fitment

This rotor is compatible with the following Jaguar models:

• Jaguar Vanden Plas (1998-2003)
• Jaguar XJ8 (1999-2002)
• Jaguar XJR (1998-2002)
• Jaguar XK8 (1999-2006)
• Jaguar XKR (2000-2006)

Upgrade to the Brembo 09.A603.11 and experience the difference in your vehicle’s braking performance. With trusted quality and thoughtful design, it's a choice you won't regret.
