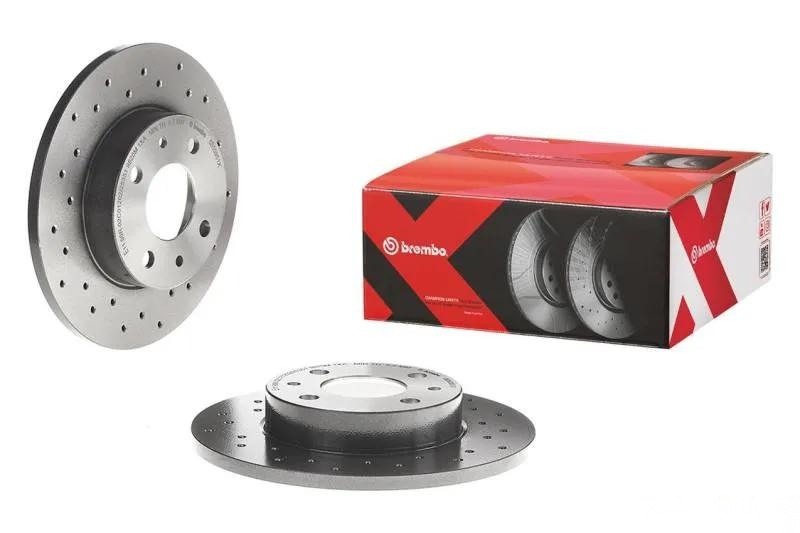

Brembo 09.5745.2X Premium UV Coated Front Xtra Cross Drilled Brake Rotor

The Brembo 09.5745.2X Premium UV Coated Front Xtra Cross Drilled Brake Rotor is engineered to deliver exceptional braking performance while maintaining strict adherence to OEM specifications. This rotor is a direct replacement, ensuring a seamless fit and reliable performance for your vehicle.

Key Features

• Material: High Carbon cast iron construction minimizes noise and vibration, enhancing overall driving comfort.
• Surface Type: Drilled braking surface for improved heat dissipation and performance.
• Rust Resistance: UV coating provides superior protection against corrosion, extending the lifespan of the rotor.
• Dimensions:
  • Outside Diameter: 288 mm
  • Nominal Thickness: 25 mm
  • Minimum Thickness: 23.5 mm
  • Height: 46.2 mm
  • Centering Diameter: 68 mm
• Installation: Includes a fixing screw kit with all necessary hardware for straightforward installation.
• Torque Specification: 120 Nm for securing the rotor effectively.
• Vented Type: Designed as a vented rotor for optimal airflow and cooling.
• Number of Holes: 5 holes for proper fitment and stability.

Compatibility

The Brembo 09.5745.2X is compatible with the following vehicles:

• Audi 100 (1992-1994)
• Audi 100 Quattro (1992-1994)
• Audi 80 (1988)
• Audi A4 (1996-2005)
• Audi A4 Quattro (1996-2005)
• Audi A6 Avant (1995-1997)
• Audi A6 Quattro (1998-2001)
• Volkswagen Passat (1999-2001)

For optimal braking performance, it is recommended to replace both rotors and pads simultaneously. Pair the Brembo 09.5745.2X rotor with Brembo's NAO/Ceramic or Low Met brake pad formulations to achieve the best results.
