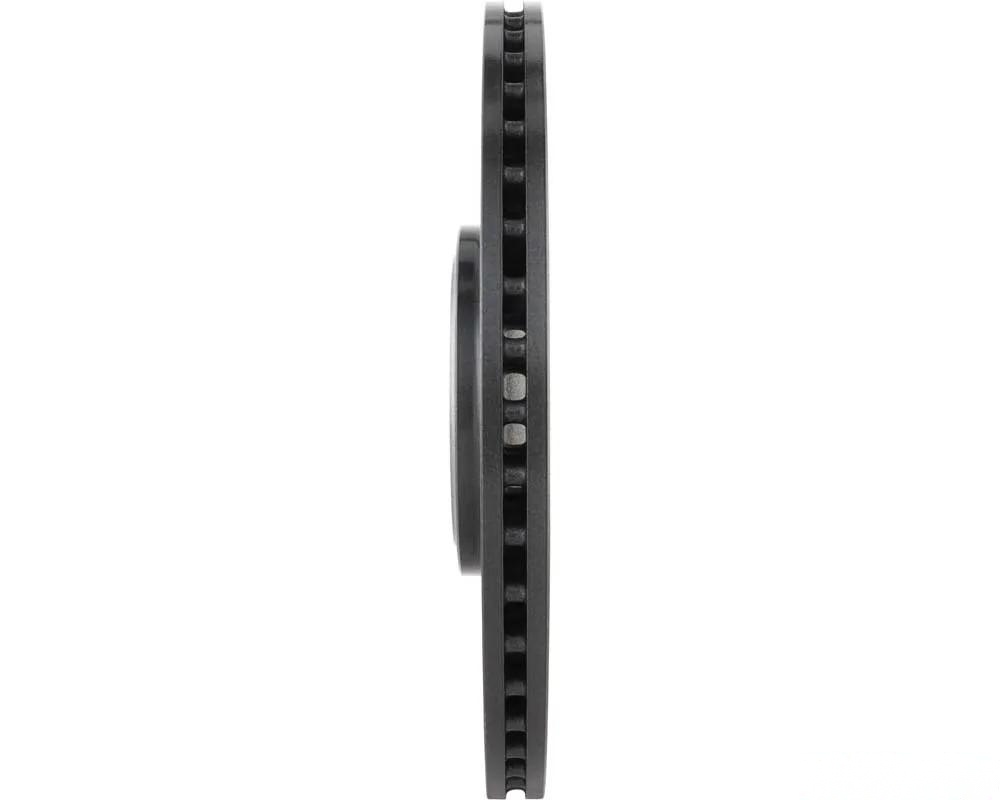

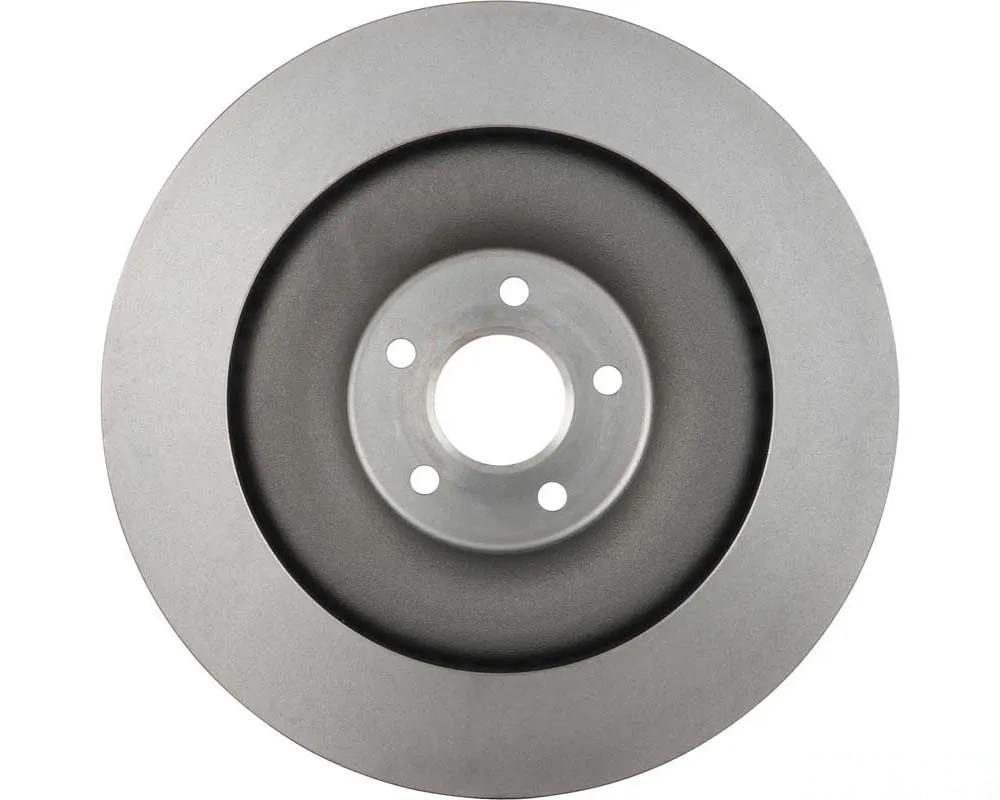

Brembo 09.D434.11 Premium UV Coated Rear Brake Rotor

The Brembo 09.D434.11 Premium UV Coated Rear Brake Rotor is engineered as a direct replacement for your vehicle's braking system, ensuring it meets or exceeds OEM specifications. Crafted from high carbon cast iron, these rotors are designed to minimize noise and vibration while maximizing performance. The environmentally friendly UV coating provides superior protection against wear and corrosion, enhancing the longevity of the rotor.

Technical Specifications

• Outside Diameter: 376 mm
• Nominal Thickness: 26 mm
• Centering Diameter: 64.5 mm
• Minimum Thickness: 24 mm
• Height: 42.1 mm
• Rotor Type: PVT (Solid or Vented)
• Material: High Carbon Cast Iron

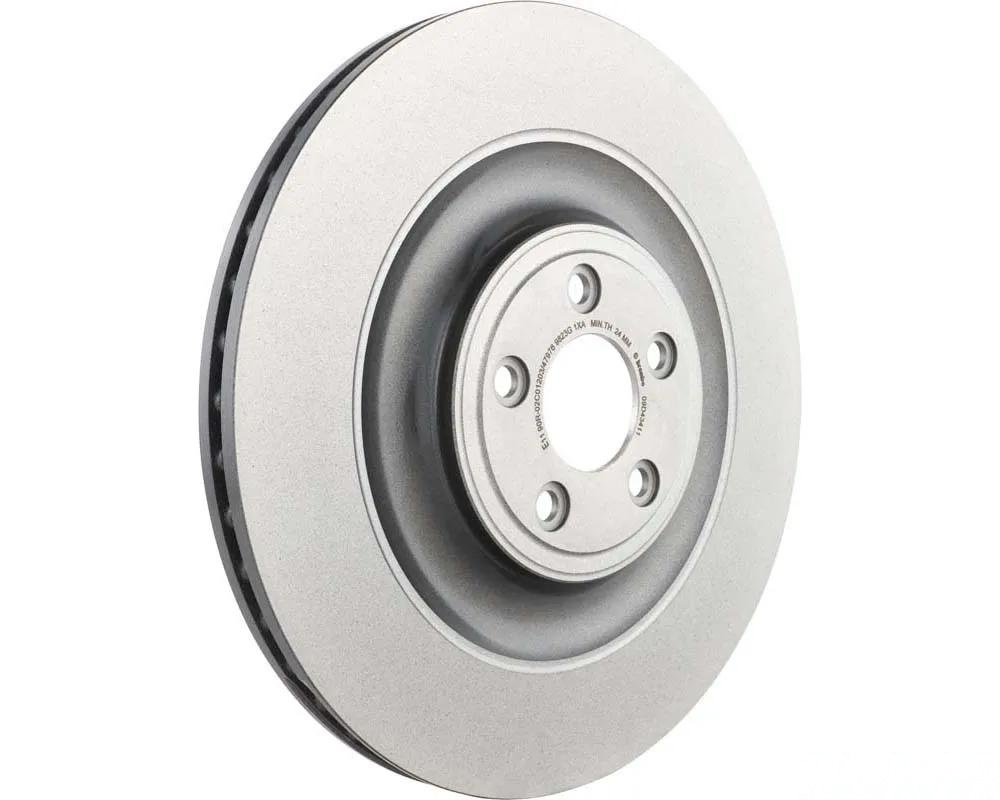

Each rotor comes with a fixing screw kit, including all necessary hardware for straightforward installation. The intelligent marking on the rotor indicates the part number and the minimum thickness, aiding in maintenance checks. To fully optimize braking performance, it is recommended to replace rotors and pads simultaneously. Pair the 09.D434.11 rotor with Brembo's NAO/Ceramic or Low Met brake pad formulations for the best results.

Confirmed Fitment

The Brembo 09.D434.11 is compatible with the following Jaguar models:

• Jaguar F-Type (2014-2023)
• Jaguar XF (2010-2015)
• Jaguar XFR (2010-2015)
• Jaguar XFR-S (2013-2015)
• Jaguar XJ (2010-2019)
• Jaguar XJR (2014-2017)
• Jaguar XJR575 (2018-2019)
• Jaguar XKR (2010-2015)
• Jaguar XKR-S (2012-2015)

For those looking to enhance their braking system with a reliable and high-performance rotor, the Brembo 09.D434.11 is a robust choice that combines durability with superior braking capabilities.
