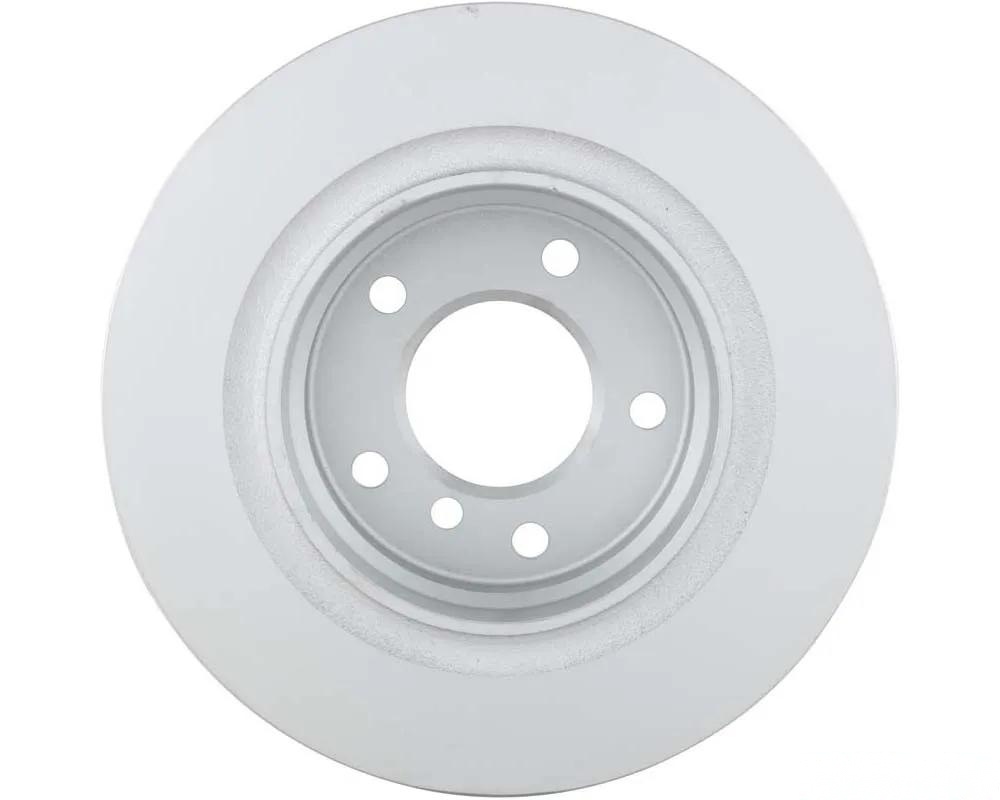

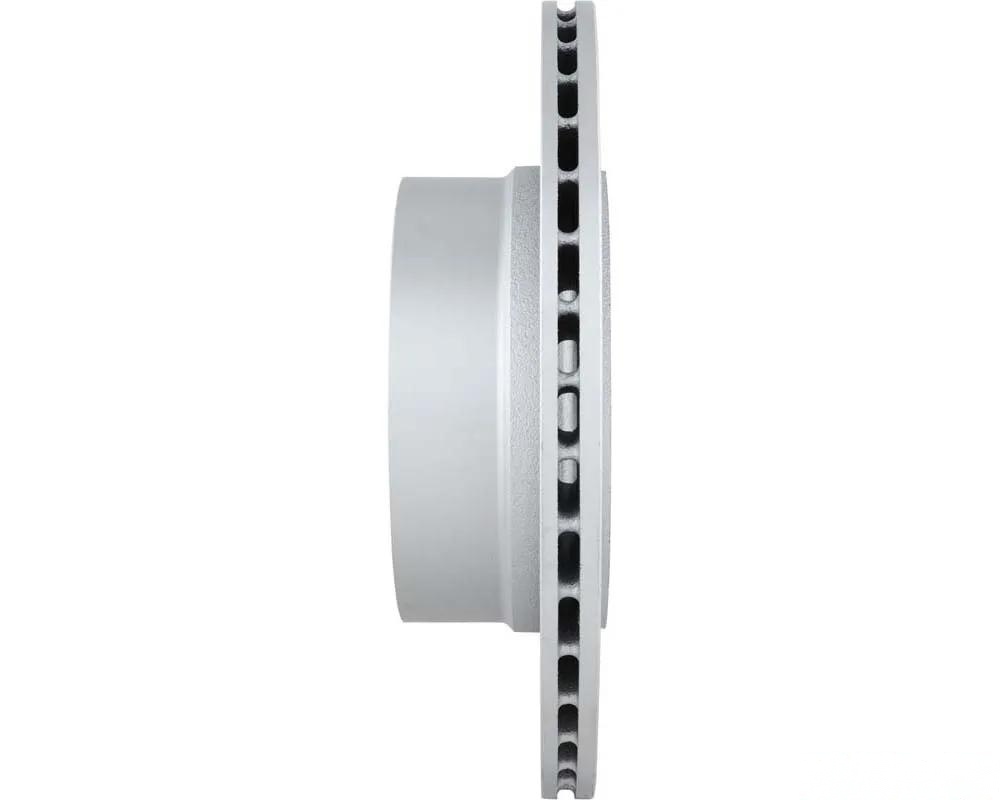

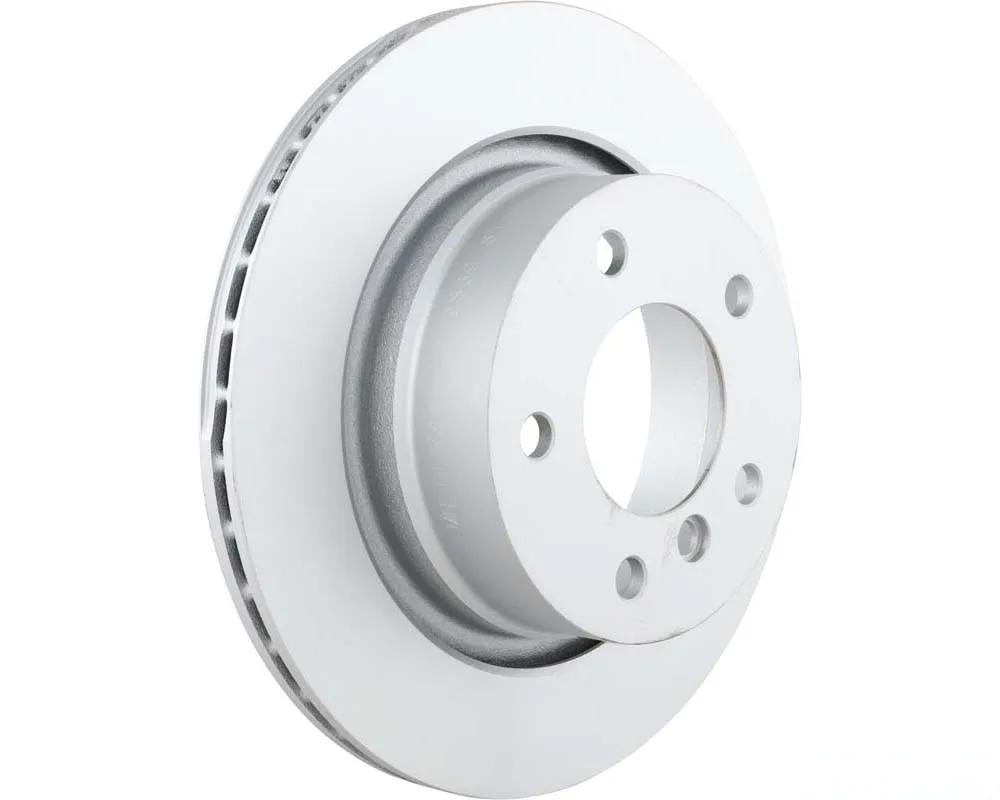

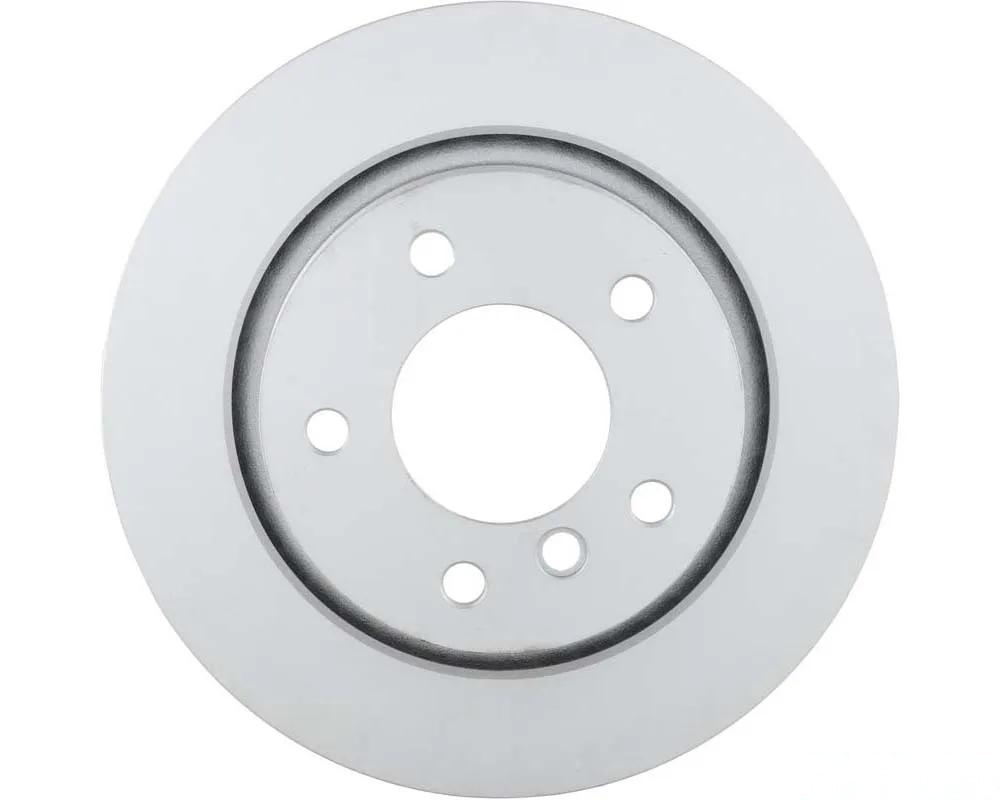

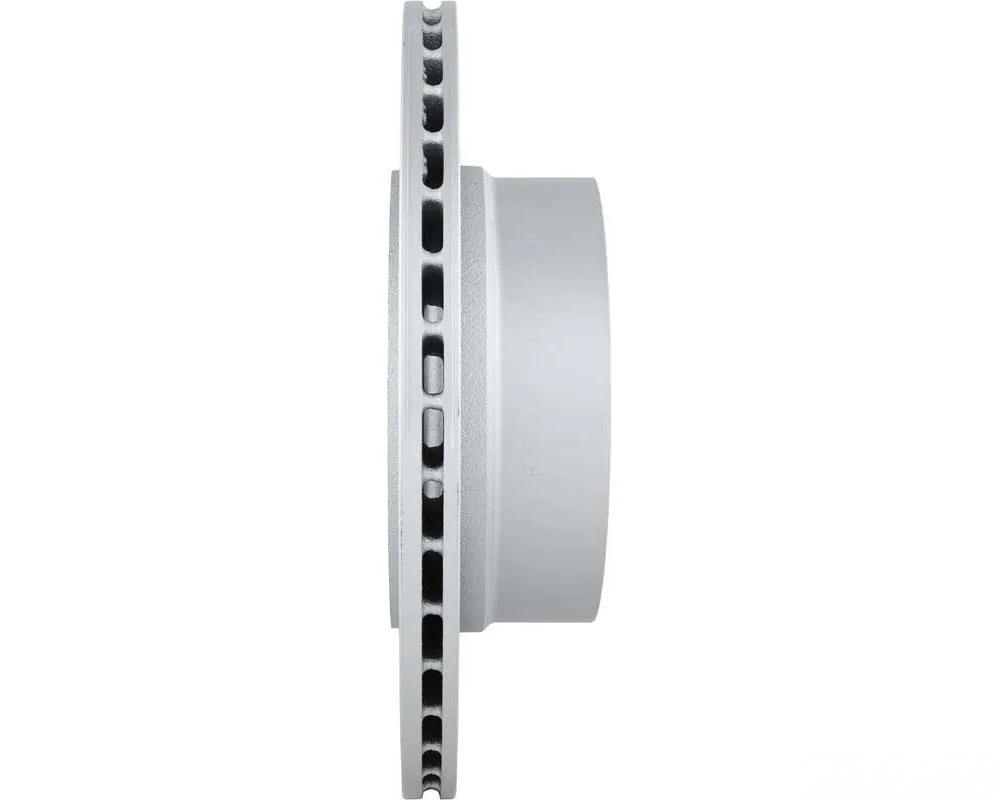

Brembo 09.9869.81 Premium UV Coated Rear Brake Rotor

The Brembo 09.9869.81 Premium UV Coated Rear Brake Rotor is engineered to deliver exceptional braking performance while adhering to stringent OEM specifications. This rotor is a direct replacement component, ensuring seamless integration with your vehicle's braking system.

Technical Specifications

• Material: High Carbon Cast Iron
• Outside Diameter: 294 mm
• Nominal Thickness: 19 mm
• Minimum Thickness: 17.4 mm
• Height: 74.5 mm
• Centering Diameter: 75 mm
• Number of Holes: 5
• Type: Vented Rotor
• Rust Resistant Coating: UV Coated
• Torque Specification: 120 NM

Installation Notes

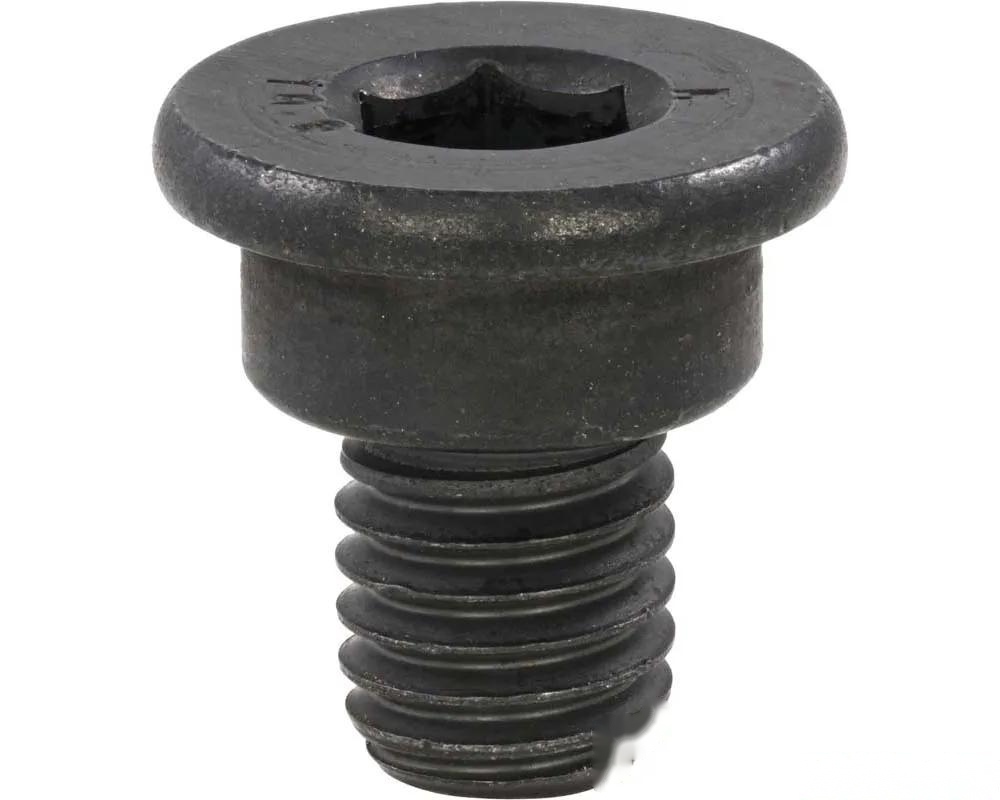

Included with the Brembo 09.9869.81 rotor is a fixing screw kit, providing all necessary hardware for straightforward installation. The rotor features intelligent marking locations that display the part number and minimum thickness, ensuring clarity during the installation process.

Performance Considerations

To achieve optimal braking performance, it is recommended to replace both the rotors and brake pads simultaneously. For ideal pairing, consider using Brembo's NAO/Ceramic or Low Met brake pad formulations, which complement the rotor's design and enhance overall braking efficiency.

Vehicle Fitment

This rotor is confirmed to fit the following model:

• BMW Z4 (2003-2008)

The Brembo 09.9869.81 rotor is built to enhance your vehicle's braking system with its advanced materials and thoughtful design, ensuring you have the reliability and performance needed on the road.
