Brembo 09.D061.11 Premium UV Coated Rear Brake Rotor

The Brembo 09.D061.11 Premium UV Coated Rear Brake Rotor is engineered to serve as a direct replacement that meets or exceeds OEM specifications. This rotor is crafted from high carbon cast iron, which not only enhances performance but also minimizes noise and vibration for a smoother driving experience.

Construction and Features

• Centering Diameter: 64.5 mm
• Minimum Thickness: 18 mm
• Outside Diameter: 325 mm
• Height: 38.2 mm
• Nominal Thickness: 20 mm
• Type: Vented rotor
• Material: High Carbon Cast Iron

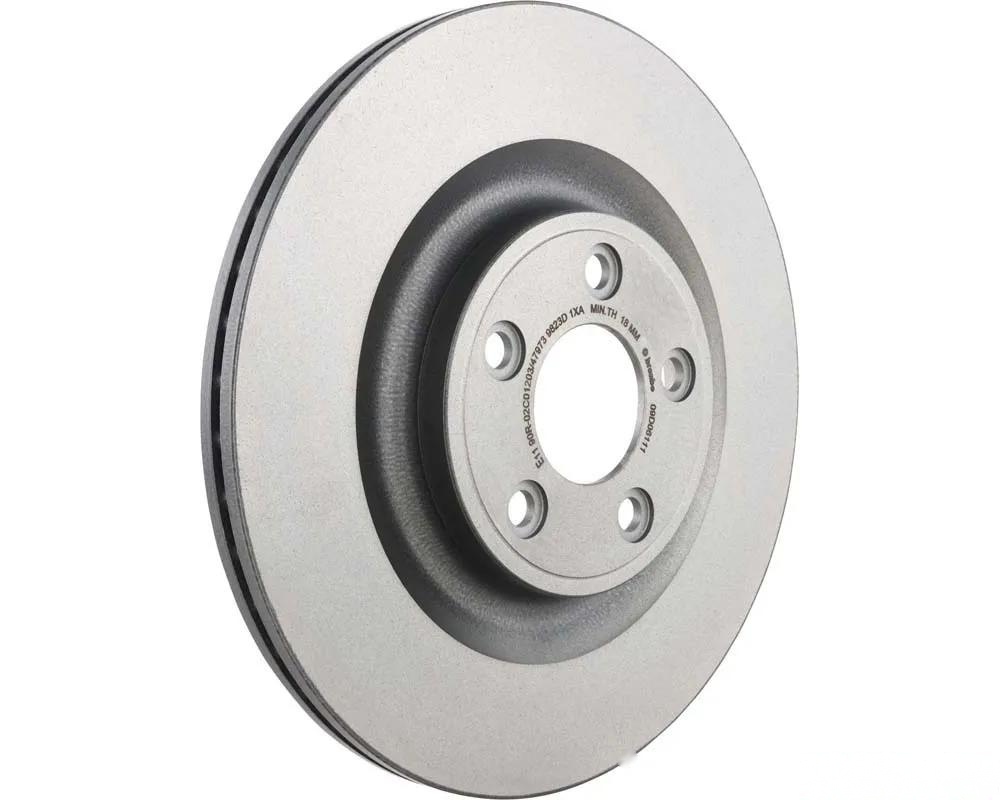

The environmentally friendly UV coating provides superior protection for the braking surface, ensuring longevity and consistent performance. Each rotor comes with a fixing screw kit, including all necessary hardware for straightforward installation. Intelligent marking locations display the part number and minimum thickness for easy reference.

Installation and Compatibility

For optimal braking performance, it is recommended to replace both rotors and pads simultaneously. Pair the Brembo 09.D061.11 rotor with Brembo's NAO/Ceramic or Low Met brake pad formulations to achieve the best results. This rotor is confirmed to fit the following models:

• Jaguar F-Type (2014-2023)
• Jaguar XJ (2013-2019)

Trust in Brembo, a leader in braking technology, to deliver reliable performance and quality.
