Centerforce DFX Clutch Series - Part #315474898

Are you ready to take your Dodge Ram's performance to the next level? The Centerforce DFX Clutch Series, particularly part number 315474898, is engineered for those who demand the best from their vehicles. This clutch is a competition-proven package tailored for select Dodge Ram models, including the Ram 2500 and Ram 3500, equipped with the 5.9L Turbocharged engine. With this clutch, you're not just upgrading—you're investing in a component that enhances both power delivery and drivability.

Why Choose the Centerforce DFX?

The DFX series sets the standard for high-performance clutches, combining strength and reliability with an easy pedal effort. Featuring a patented centrifugal weight system, this clutch ensures smooth engagement and disengagement, making it perfect for both daily driving and competitive racing. The ball bearing actuated diaphragm design provides a light pedal feel, so you can shift gears effortlessly without sacrificing performance. Plus, it’s SFI approved, ensuring it meets rigorous safety and performance standards.

Key Features

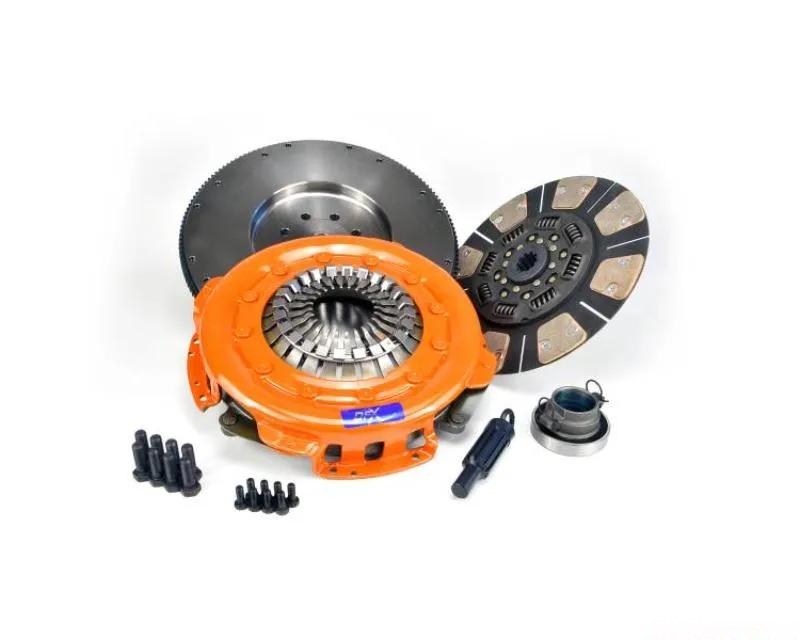

• Includes: Cover, Disc, Flywheel, and Hardware
• Diameter: 12.25 inches
• Input Shaft: 1-1/4 inches x 10 Spline
• Torque Capacity: Holds up to 900 ft/lbs
• Weight: 93.3 lbs
• Disc Material: Sprung Hub Disc with Cerametallic Material
• 152 Tooth Ring Gear, 8 Bolt Crank, and 0 oz Counter Balance
• Centrifugally Assisted for enhanced performance

Specifications

• Out of Package Weight: 93.3 lbs
• Material: Cast Iron Pressure Plate / Cerametallic Button Style Friction
• Clutch Disc Diameter: 12.25 inches
• Disc Type: 8-Paddle, Sprung Solid
• Clutch Bolt Pattern: 22 (check specific patterns)
• Type: Clutch and Flywheel Kit
• Release Bearing Included: Yes
• Pilot Bushing Included: Yes
• Mounting Hardware Included: Yes
• Alignment Tool Included: Yes

Fitment

The Centerforce DFX Clutch (315474898) is specifically designed for:

• Dodge Ram 2500 Turbocharged - 5.9L (359 cid) - 5-Spd (NV4500) from 1994 to 2005
• Dodge Ram 2500 Turbocharged - 5.9L (359 cid) - 6-Spd (NV5600) from 1998 to 2000
• Dodge Ram 3500 Turbocharged - 5.9L (359 cid) - 5-Spd (NV4500) from 1994 to 2005
• Dodge Ram 3500 Turbocharged - 5.9L (359 cid) - 6-Spd (NV5600) from 1998 to 2000

Installation Instructions

Ready to install? Check out the detailed installation instructions:

• Installation Instructions
• Clutch Patterns Info

Important Notes

• This clutch series is more aggressive with less dampening, which may result in additional drivetrain noise or chatter.
• Most items ship within 1 to 5 days; however, delays may occur. You will be notified if an item cannot be shipped by the next business day.

For Dodge Ram owners looking to enhance their vehicle's performance, the Centerforce DFX Clutch Series is a top-tier choice that combines durability, efficiency, and responsiveness. Upgrade your ride today and experience the difference!
