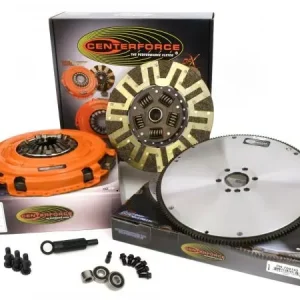

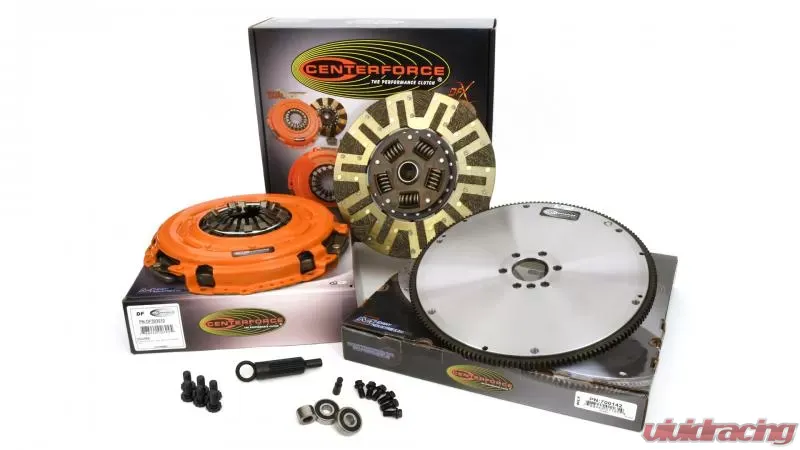

Centerforce Dual Friction Clutch and Flywheel Kit KDF931042 for Select Vehicles

Centerforce KDF931042 Dual Friction Clutch and Flywheel Kit

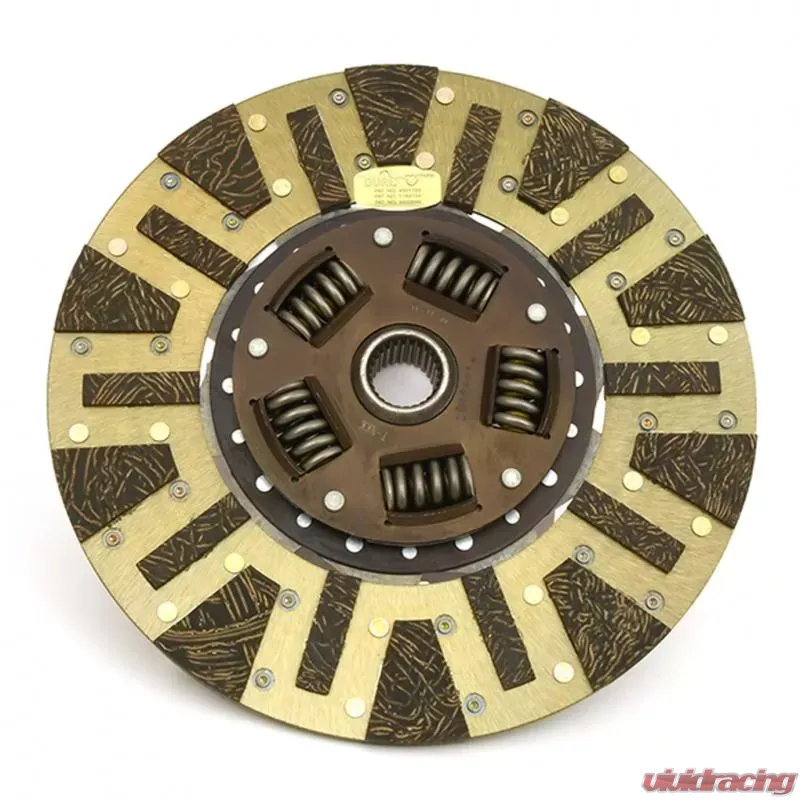

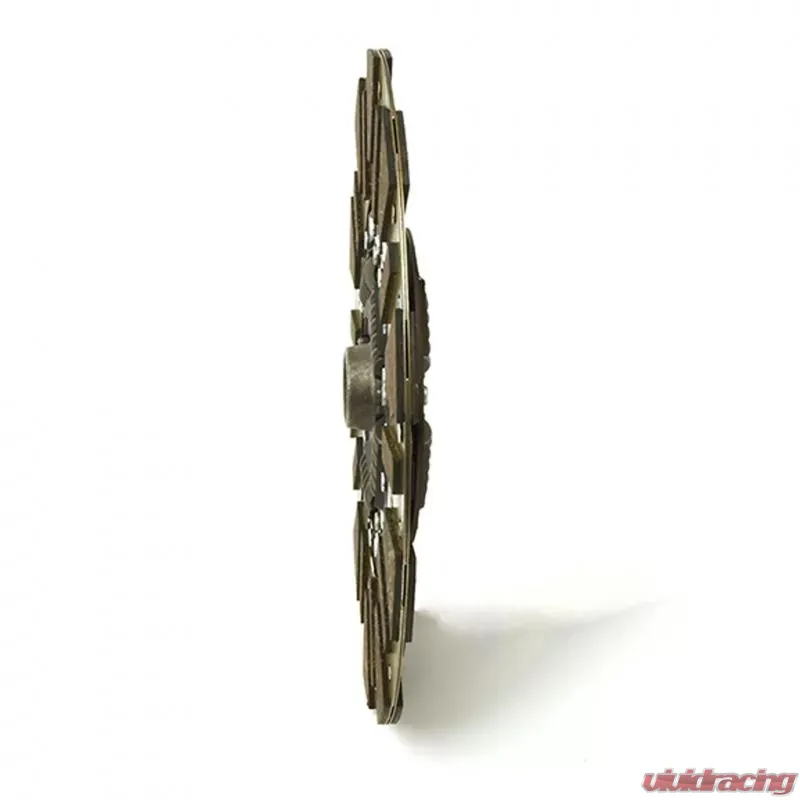

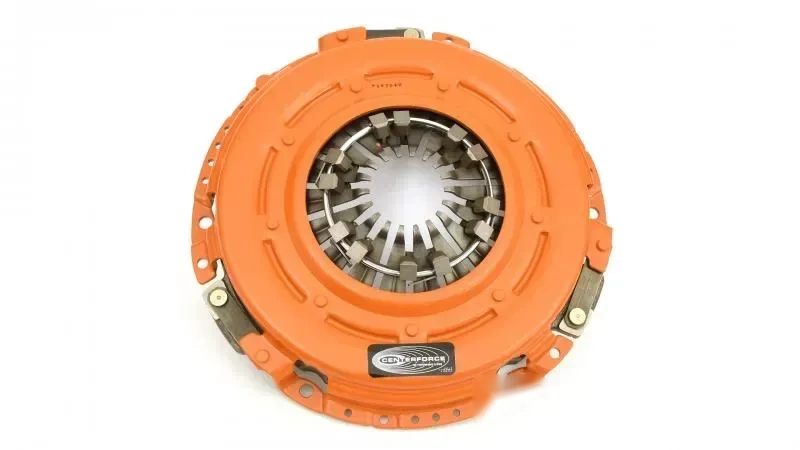

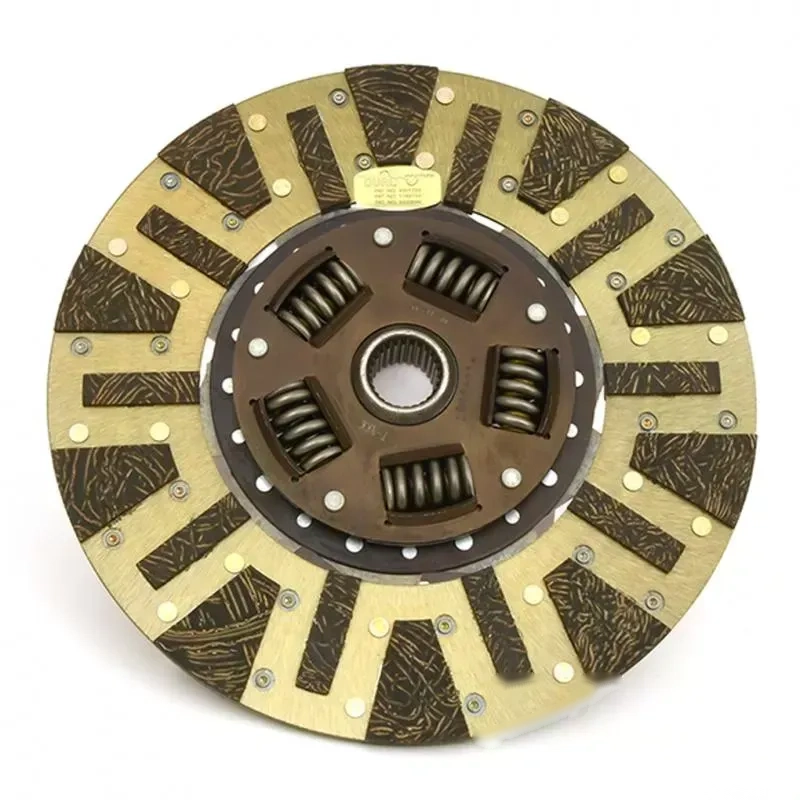

The Centerforce KDF931042 is engineered for performance, combining a high-capacity pressure plate with an advanced clutch disc design. This kit utilizes the patented Centerforce centrifugal weight system, enhancing engagement and providing a balanced pedal feel. The dual-sided disc features an organic full facing on one side for durability and a segmented organic facing on the other, which increases holding capacity significantly. This design allows for optimal street performance while maintaining the ability to handle mild competition scenarios.

Technical Specifications

• Clutch Bolt Pattern: 14
• Clutch Disc Diameter: 12 inches
• Counterweight Assist: Yes
• Crankshaft Bolt Hole Quantity: 6
• Disc Material: Organic/Carbon composite

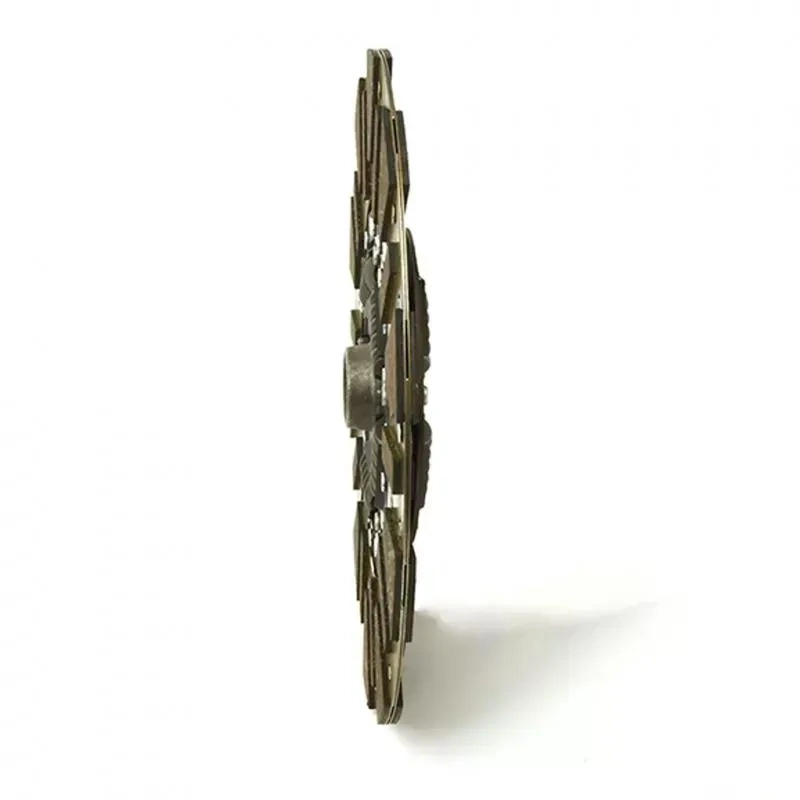

• Disc Type: Sprung Solid, Segmented face
• Flywheel Deck Height: 2.895 inches
• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 26

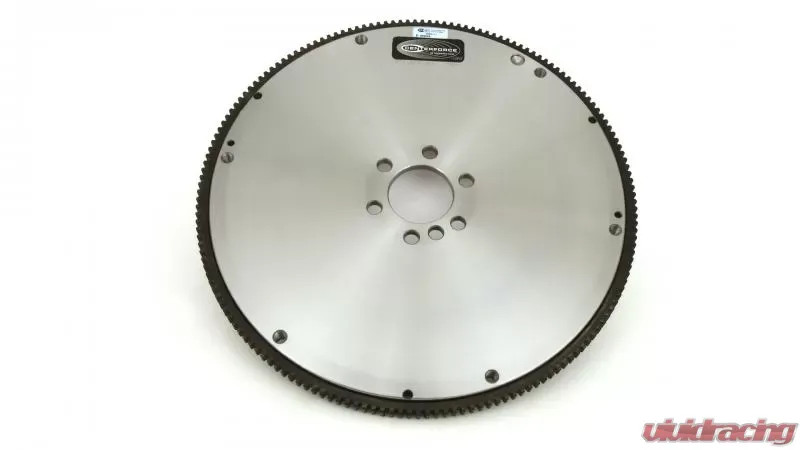

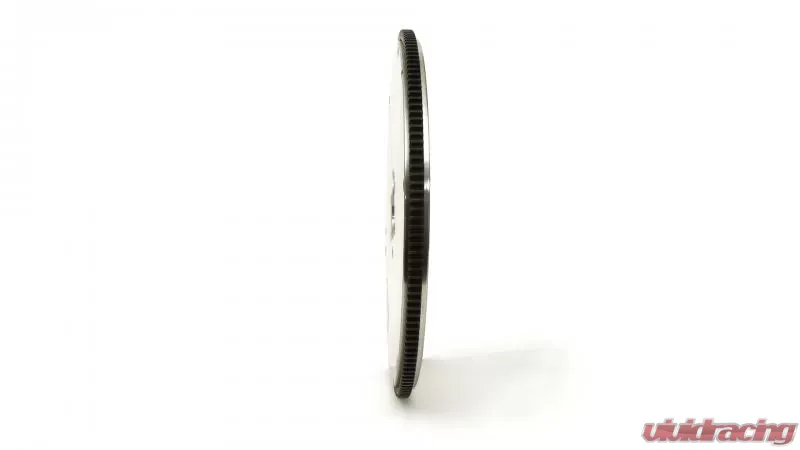

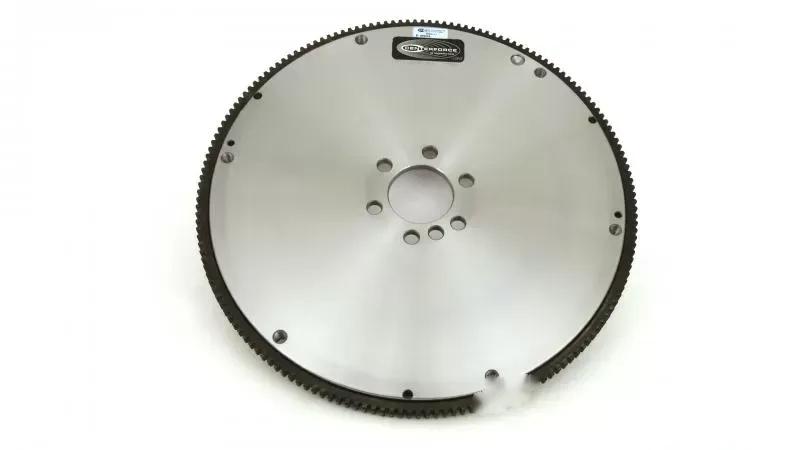

• Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
• Torque Capacity: 700 ft-lbs

Fitment

This clutch kit is compatible with the following models:

• Chevrolet Camaro (1998-2002 & 2010-2015)
• Chevrolet Camaro Z28 (2014-2015)
• Chevrolet Corvette (1997-2013)
• Chevrolet Corvette Grand Sport (2010-2013)
• Chevrolet Corvette Z06 (2001-2004 & 2006-2013)
• Pontiac Firebird (1998-2002)
• Pontiac GTO (2004-2006)

Installation Notes

While installation is straightforward for those with mechanical expertise, it is recommended to follow the manufacturer’s guidelines closely. Ensure all components are clean before assembly for optimal performance. Following installation, wash hands thoroughly due to potential exposure to chemicals as noted by California Proposition 65.
