Centerforce DF024909 Dual Friction Clutch Pressure Plate and Disc Set

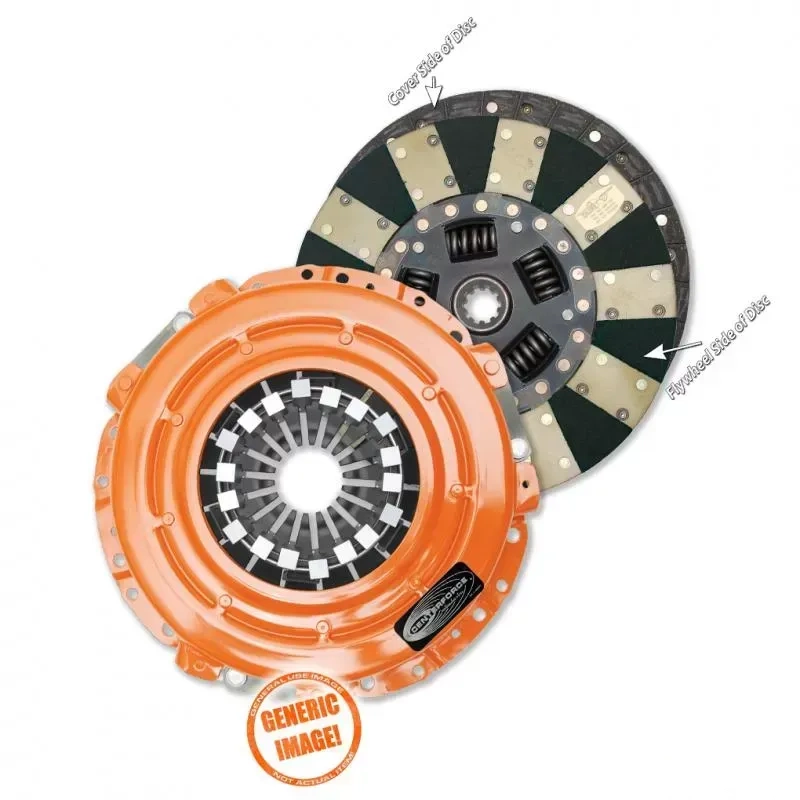

The Centerforce DF024909 Dual Friction Clutch is engineered for performance-driven applications, combining a robust pressure plate with a high-quality disc. This set features Centerforce’s patented centrifugal weight system, enhancing the clutch's holding capacity while maintaining excellent street characteristics. With a focus on durability and performance, the Dual Friction disc utilizes an organic full facing on one side and a segmented organic facing on the other, optimizing both longevity and grip. This design is particularly beneficial for street and mild competition use, providing a balance of performance without excessive pedal effort.

Technical Specifications

• Clutch Bolt Pattern: 3
• Clutch Disc Diameter: 12 inches
• Counterweight Assist: Yes
• Disc Material: Organic/Carbon composite
• Disc Type: Sprung, Full Face/Segmented Face
• Flywheel Step: Flat
• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 10
• Material: Cast Iron Pressure Plate with Full Face and Segmented Organic Friction
• Torque Capacity: 694 lb-ft

Fitment

The DF024909 is compatible with the following models:

• Chevrolet Blazer 1969-1974 & 1987-1994
• Chevrolet C/K 10 1962-1986
• Chevrolet C/K 1500 1988-1995
• Chevrolet C/K 20 1962-1986
• Chevrolet C/K 2500 1988-1995
• Chevrolet C/K 30 1968-1986
• Chevrolet C/K 3500 1988-1995
• Chevrolet C15 1984
• Chevrolet C1500 1994-1995
• Chevrolet K5 Blazer 1975-1986
• Chevrolet R2500 1989
• Chevrolet R3500 1989-1990
• Chevrolet Suburban 1962-1966 & 1968-1984 & 1987-1988
• Chevrolet Tahoe 1995
• Chevrolet V3500 1989-1990
• GMC C/K 1500 1988-1995
• GMC C/K 2500 1988-1995
• GMC C/K 3500 1988-1995
• GMC Yukon 1992-1995

Installation Notes

For optimal performance, ensure the flywheel is properly resurfaced prior to installation. It is recommended to use high-quality lubricant on the input shaft to facilitate smooth engagement and disengagement. Follow manufacturer specifications for torque settings during installation.

California Proposition 65: This product can expose you to chemicals including Nickel compounds and dusts, known to the State of California to cause cancer. Wash hands following installation.
