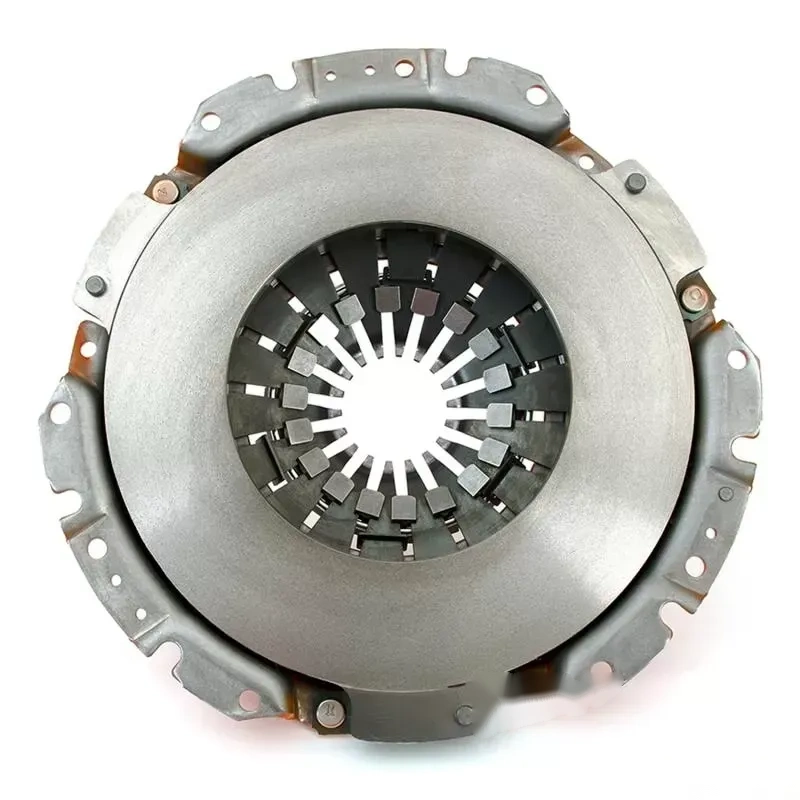

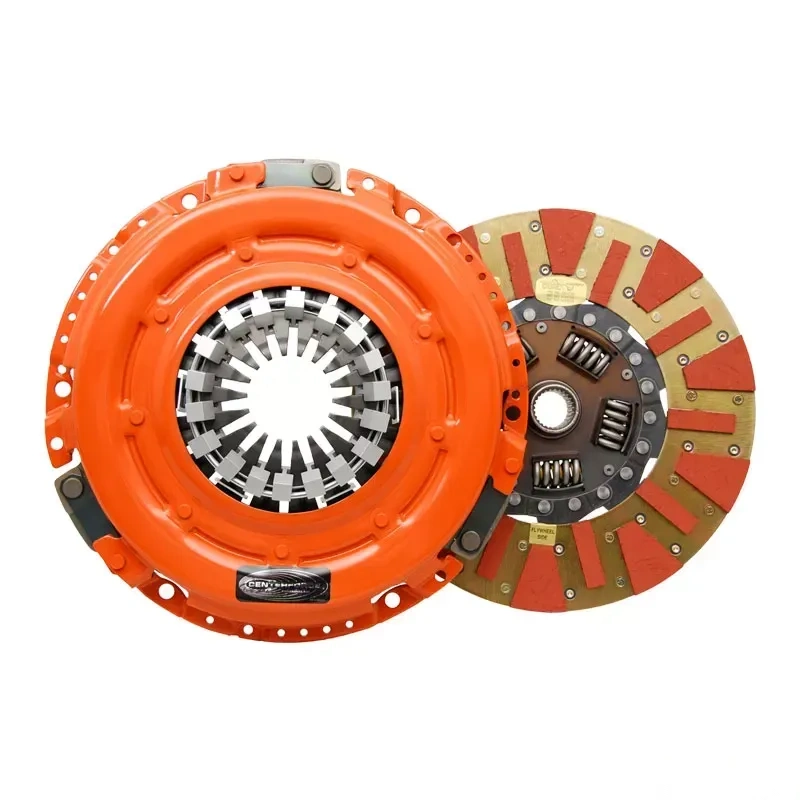

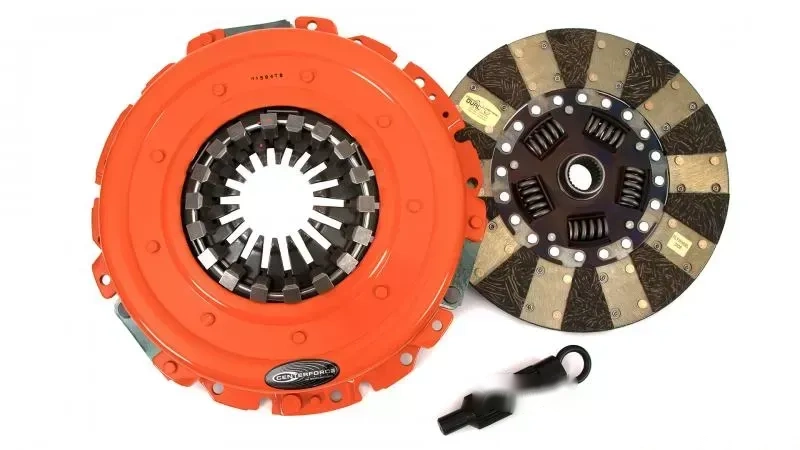

Centerforce Dual Friction Clutch Pressure Plate and Disc Set - PN: DF148552

The Centerforce DF148552 is engineered to meet the demands of high-performance driving while maintaining street-friendly characteristics. This Dual Friction Clutch Series features a unique pressure plate and disc combination designed with a patented centrifugal weight system, enhancing both engagement and performance. The clutch disc incorporates an organic full facing on one side for durability and an organic segmented facing on the other to increase holding capacity, making it suitable for street and mild competition applications.

Technical Specifications

• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 26
• Material: Nodular Iron Pressure Plate with Organic/Carbon Composite Friction
• Torque Capacity: 622 lb-ft
• Clutch Bolt Pattern: 3
• Clutch Disc Diameter: 11 inches
• Counterweight Assist: Yes
• Disc Type: Sprung Solid, Full Face/Segmented Face
• Flywheel Deck Height: 2.090 inches
• Flywheel Step Type: Flat

Installation Notes

When installing the DF148552, ensure that the flywheel is in good condition and properly machined to avoid any engagement issues. This clutch is designed to provide a balance between performance and drivability, making it an excellent choice for those looking to enhance their vehicle's capabilities without excessive pedal effort.

Fitment

The DF148552 is compatible with the following models:

• Buick Centurion 1971-1973
• Buick Electra 1971-1973
• Buick LeSabre 1971-1973
• Buick Regal 1973
• Buick Skylark 1971
• Chevrolet Bel Air 1966-1969 & 1971
• Chevrolet Biscayne 1965-1969 & 1971
• Chevrolet Blazer 1969-1974
• Chevrolet C/K 10 1962-1979
• Chevrolet C/K 20 1962-1979
• Chevrolet C/K 30 1968-1979
• Chevrolet Camaro 1967-1981
• Chevrolet Caprice 1966-1969 & 1971
• Chevrolet Chevelle 1966-1973
• Chevrolet Chevy II 1968
• Chevrolet Corvette 1970-1981
• Chevrolet El Camino 1966-1974
• Chevrolet Impala 1965-1969 & 1971
• Chevrolet K5 Blazer 1975-1979
• Chevrolet Malibu 1966-1967 & 1973-1974
• Chevrolet Monte Carlo 1970-1974
• Chevrolet Nova 1969-1970
• Chevrolet Suburban 1962-1966 & 1968-1974 & 1977-1979
• Pontiac Firebird 1973-1979 & 1981

Safety Warning

This product may expose you to chemicals including Nickel compounds and dusts, which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov. Wash hands following installation.
