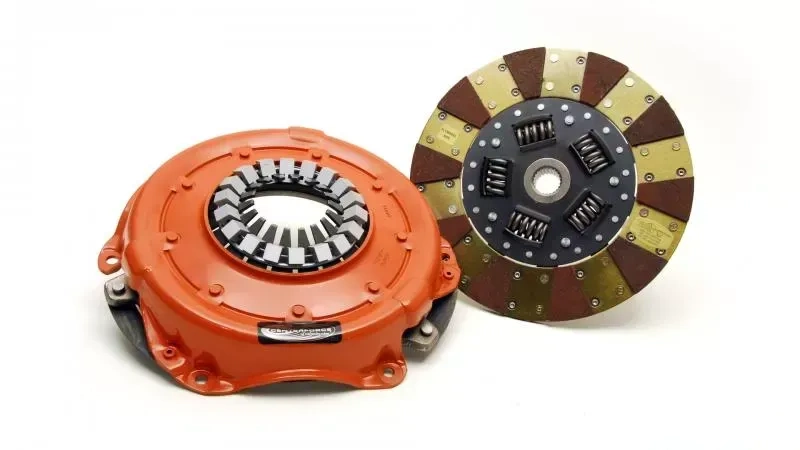

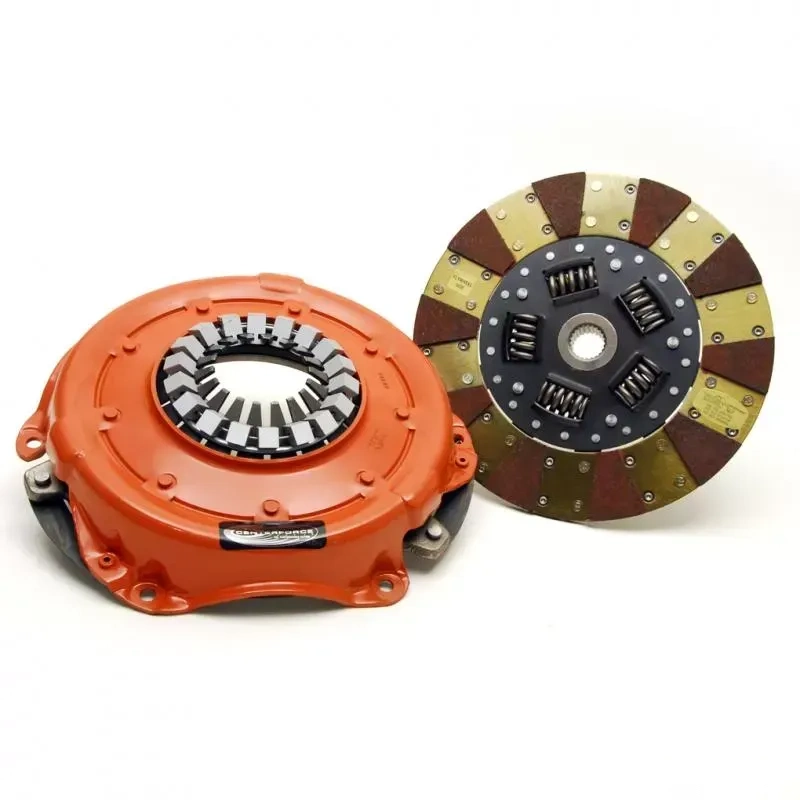

Centerforce DF269739 Dual Friction Clutch Pressure Plate and Disc Set

The Centerforce DF269739 Dual Friction Clutch is engineered for performance-driven applications, providing a robust solution for those looking to enhance their vehicle's clutch engagement. This set combines a pressure plate and disc, utilizing Centerforce's patented centrifugal weight system to optimize performance across various driving conditions. The design strikes a balance between street usability and the demands of mild competition, ensuring both durability and effective power transfer.

Key Specifications

• Disc Material: Organic/Carbon composite, offering a blend of longevity and performance.
• Disc Type: Full face and segmented face, with an organic full facing on one side for extended life and a segmented facing on the other for enhanced holding capacity.
• Clutch Bolt Pattern: 2, ensuring compatibility with specific applications.
• Clutch Disc Diameter: 10.4 inches, providing a substantial contact area for improved grip.
• Torque Capacity: 590 lb-ft, designed to handle significant power outputs without slipping.
• Flywheel Deck Height: 2.175 inches, with a flat step type for straightforward installation.
• Input Shaft Diameter: 1 inch, with an input spline quantity of 23, tailored for specific transmission compatibility.
• Material: Nodular iron pressure plate, ensuring strength and resistance to wear.
• Counterweight Assist: Yes, enhancing engagement feel and performance.

Fitment

The DF269739 is compatible with the following models:

• Dodge Challenger (1970-1974)
• Dodge Charger (1966-1974)
• Dodge Coronet (1965-1974)
• Dodge Dart (1967-1972 & 1974)
• Plymouth Barracuda (1967-1973)

Installation Notes

Installation of the DF269739 requires standard tools and mechanical knowledge. Ensure that the flywheel is in good condition and properly machined before installation. It is recommended to replace the pilot bearing and inspect the throw-out bearing for optimal performance.
