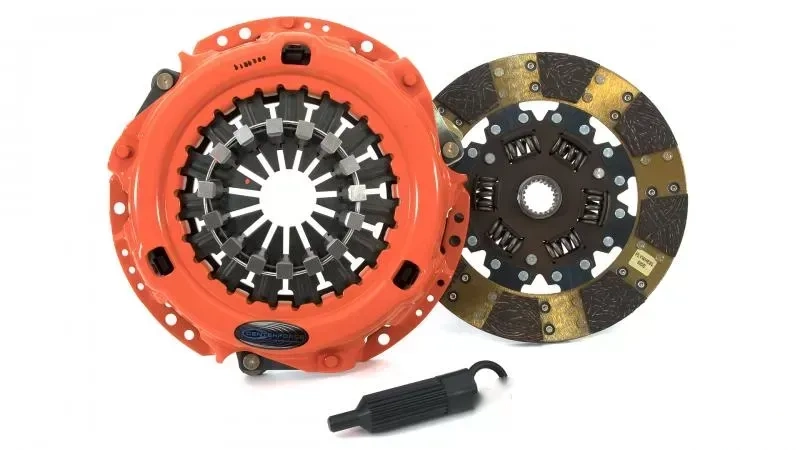

Centerforce DF522018 Dual Friction Clutch Pressure Plate and Disc Set

The Centerforce DF522018 Dual Friction Clutch is designed for performance-driven applications, combining a pressure plate and disc set that enhances both street and mild competition usability. This clutch system features a unique centrifugal weight system that optimizes engagement and holding capacity, making it suitable for those who demand more from their drivetrain.

Construction and Materials

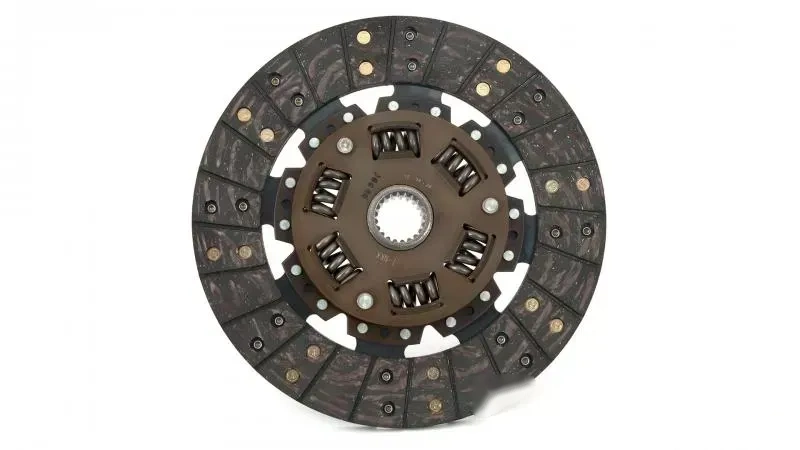

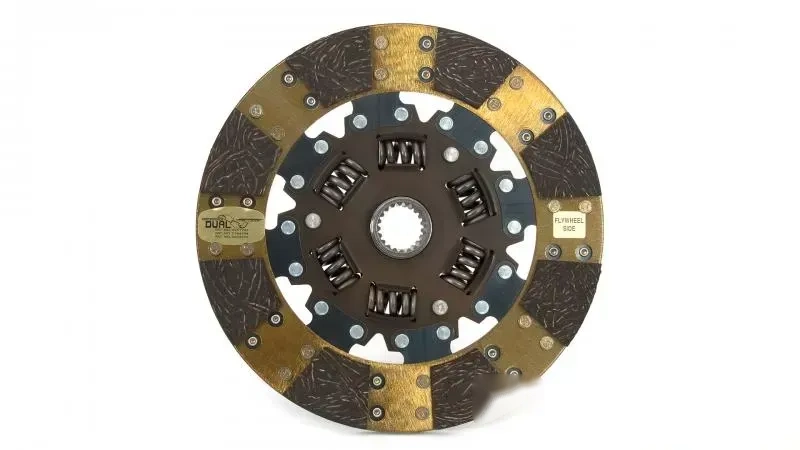

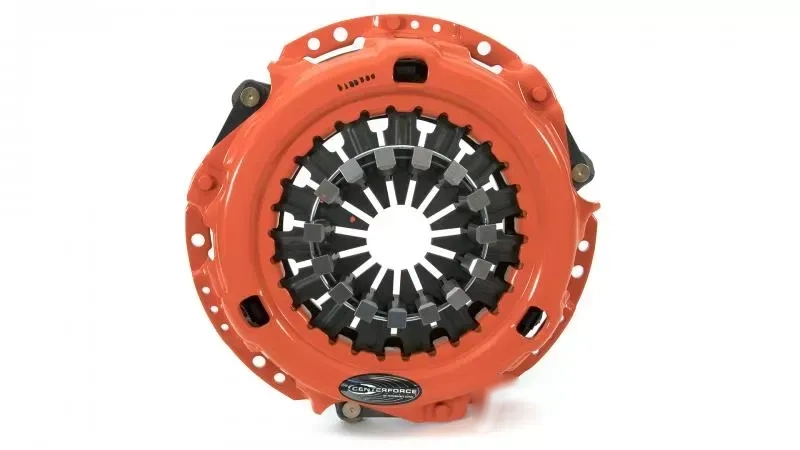

Crafted from durable cast iron, the pressure plate is engineered to withstand high torque levels, rated at 442 lb-ft. The clutch disc utilizes a hybrid of organic and carbon composite materials, offering a full face on one side and a segmented design on the other. This combination provides excellent longevity and improved holding capacity, ensuring that the clutch performs reliably under various driving conditions.

Specifications

• Clutch Disc Diameter: 236 mm
• Counterweight Assist: Yes
• Disc Material: Organic/Carbon composite
• Disc Type: Sprung, Full face/Segmented face
• Flywheel Step: 0.018 inches
• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 21
• Torque Capacity: 442 lb-ft

Fitment

The DF522018 is compatible with the following models:

• Lexus SC300 (1992-1997)
• Toyota 4Runner (1985-1988 & 1992-1995)
• Toyota Celica (1982-1985)
• Toyota Pickup (1985-1988 & 1992-1995)
• Toyota Supra (1987-1992)
• Toyota Tacoma (1995-2004)

Installation Notes

Installation of the DF522018 clutch set requires standard tools and mechanical knowledge. Ensure that the flywheel is properly machined to match the 0.018-inch step specification for optimal performance. Following installation, it is advisable to break in the clutch gently to maximize its lifespan and effectiveness.
