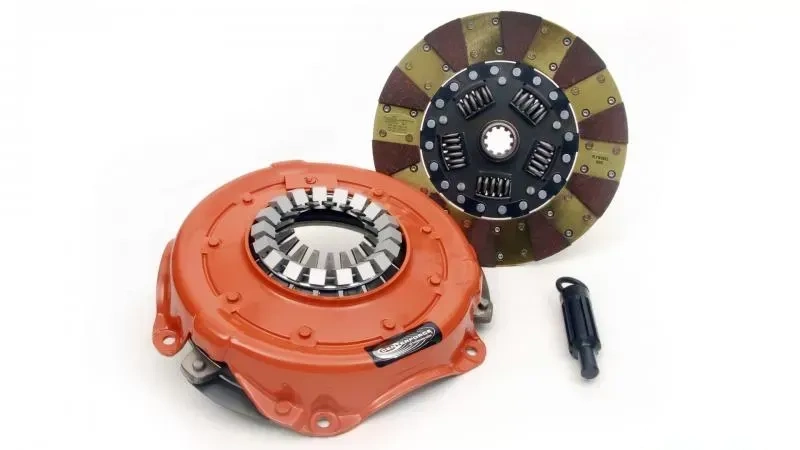

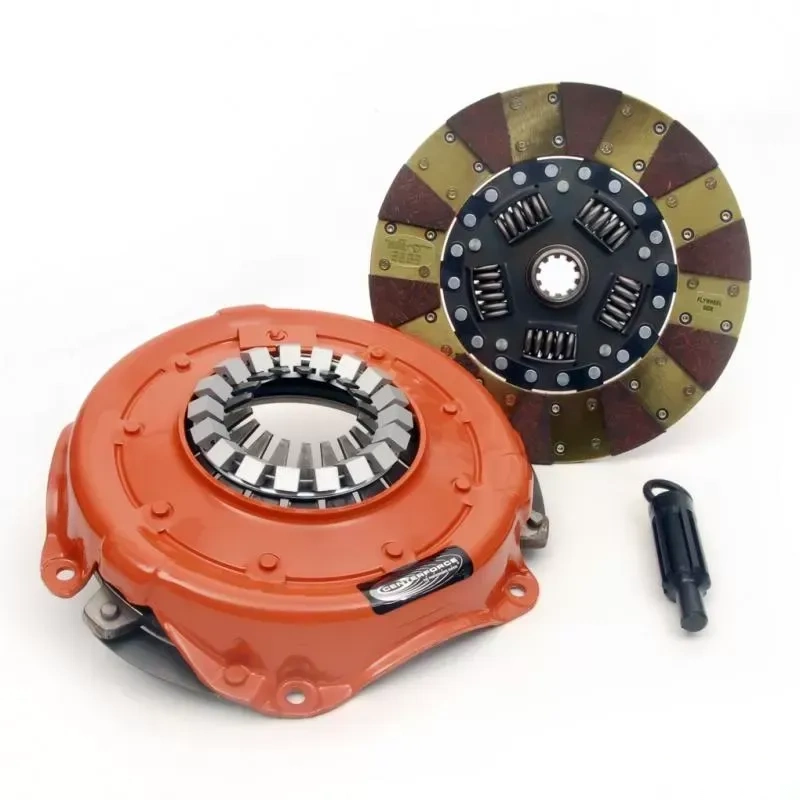

Centerforce DF271739 Dual Friction Clutch Pressure Plate and Disc Set

The Centerforce DF271739 Dual Friction Clutch is engineered to provide a robust solution for performance applications, balancing street usability with increased holding capacity. This clutch set features a unique design that includes a nodular iron pressure plate and a dual-sided disc configuration that enhances durability and performance. One side of the disc is equipped with organic full facing for longevity, while the other side features an organic segmented facing that significantly improves holding power.

Technical Specifications

• Clutch Disc Diameter: 10.4 inches
• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 10
• Flywheel Deck Height: 2.175 inches
• Flywheel Step Type: Flat
• Torque Capacity: 590 lb-ft
• Disc Material: Organic/Carbon composite
• Disc Type: Sprung, Full face/Segmented face
• Counterweight Assist: Yes

Installation Notes

When installing the DF271739, ensure that the flywheel surface is clean and free from any debris to avoid premature wear. The pressure plate requires specific torque settings, so refer to the manufacturer’s specifications for proper installation. This clutch is designed for both street and mild competition use, providing a balance of performance and drivability.

Fitment

The Centerforce DF271739 is compatible with the following vehicles:

• American Motors AMX (1968-1970)
• American Motors Javelin (1968-1974)
• Chevrolet Bel Air (1962-1972)
• Chevrolet Biscayne (1958-1972)
• Chevrolet Camaro (1967-1982)
• Chevrolet Caprice (1966-1972)
• Chevrolet Chevelle (1964-1973)
• Chevrolet Chevy II (1965-1968)
• Chevrolet Corvette (1957-1971 & 1978)
• Chevrolet El Camino (1964-1975 & 1979-1981)
• Chevrolet Impala (1958-1972)
• Chevrolet Malibu (1964-1967 & 1973-1975 & 1979-1981)
• Chevrolet Monte Carlo (1970-1975 & 1979 & 1981)
• Chevrolet Nova (1969-1979)
• Pontiac Firebird (1967-1972)

Safety Information

California Proposition 65: This product can expose you to chemicals including Nickel compounds and dusts, known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov. Wash hands following installation.
