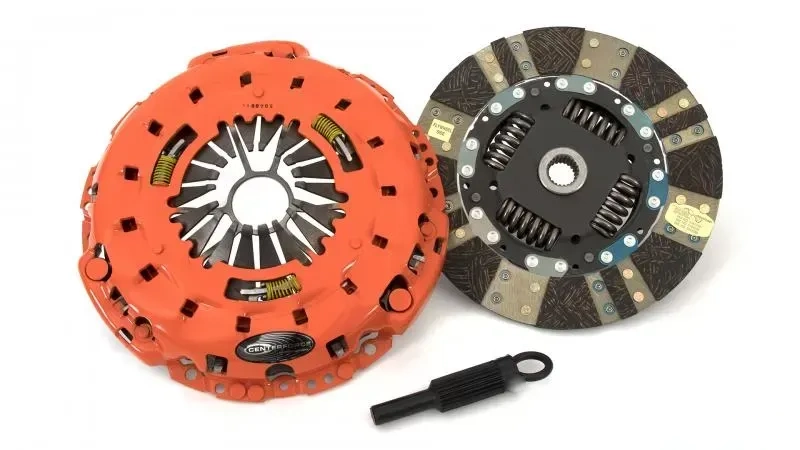

Centerforce DF145117 Dual Friction Clutch Pressure Plate and Disc Set

The Centerforce DF145117 Dual Friction Clutch is engineered for performance-driven applications, specifically tailored for the Ford 4.0L V6 with manual transmission. This clutch set combines a high-quality pressure plate with a dual-sided disc design, optimizing both durability and performance characteristics for street and mild competition use.

Construction and Design

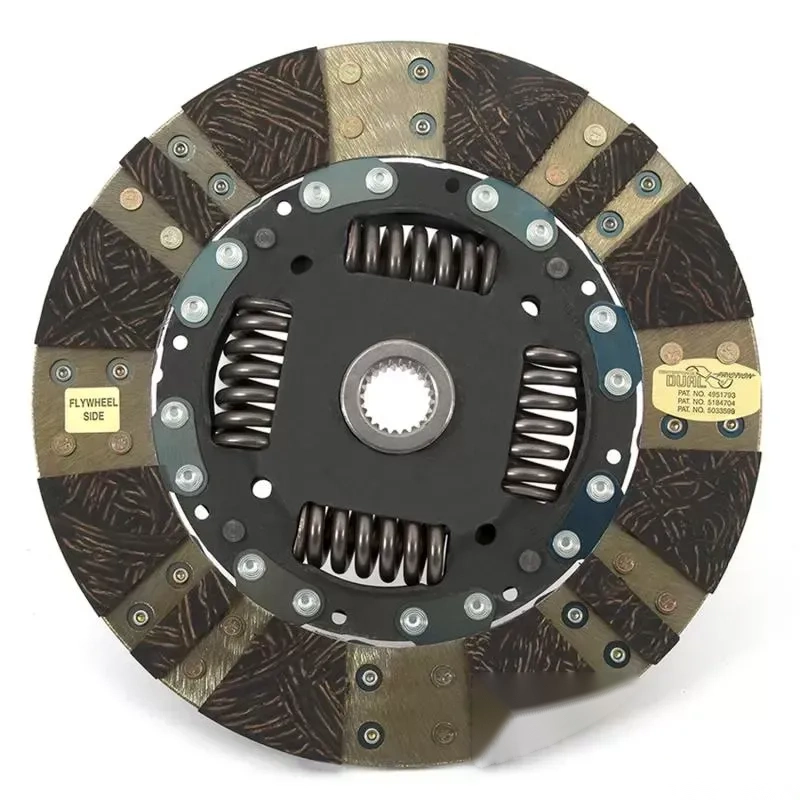

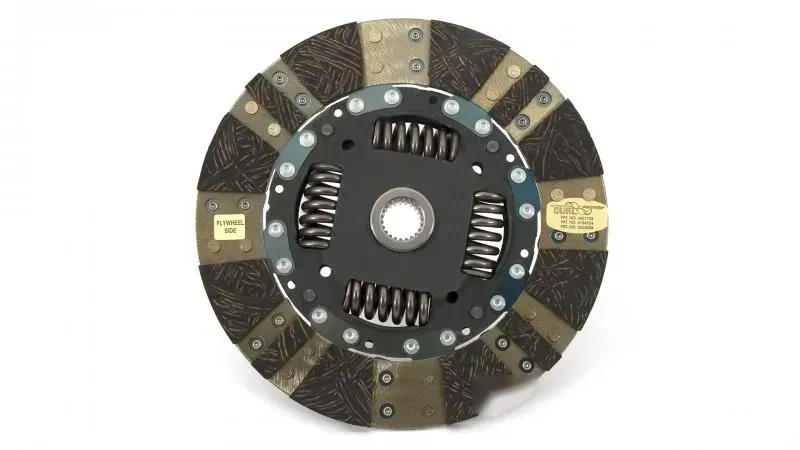

Crafted from cast iron, the pressure plate ensures robust performance under stress, while the clutch disc features a unique segmented organic friction material on one side for improved holding capacity and an organic full facing on the other side for longevity. This dual design allows for excellent engagement and smooth operation, making it suitable for daily driving as well as spirited driving scenarios.

Specifications

• Clutch Disc Diameter: 10-1/8 inches
• Input Shaft Diameter: 1 inch
• Input Spline Quantity: 23M
• Torque Capacity: 265 ft-lbs
• Disc Type: Segmented face, Sprung
• Disc Material: Organic/Carbon composite
• Counterweight Assist: No

Fitment

This clutch set is compatible with the following applications:

• Ford Explorer: 2001-2003
• Ford Ranger: 2001-2011

Installation Notes

Proper installation is crucial for optimal performance. Ensure that the flywheel is resurfaced or replaced to avoid premature wear and ensure a good mating surface with the new clutch. Follow all manufacturer guidelines for torque specifications and installation procedures.
