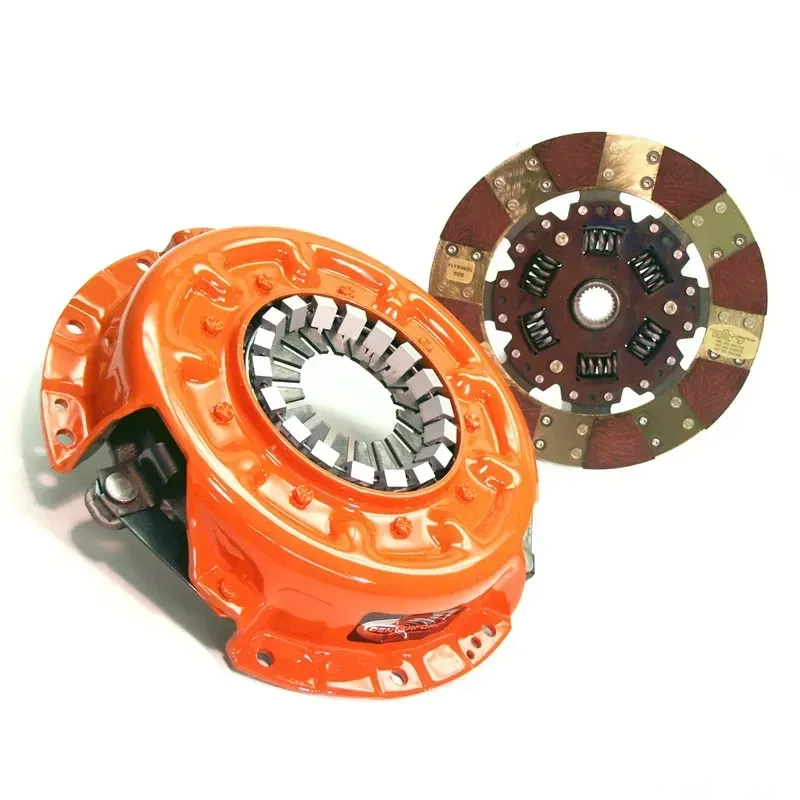

Centerforce DF912053 Dual Friction Clutch Pressure Plate and Disc Set

The Centerforce DF912053 Dual Friction Clutch is designed specifically for Nissan vehicles equipped with a 3.3L V6 engine. This performance clutch features a unique combination of a cast iron pressure plate and an organic friction disc that is engineered for durability and exceptional holding capacity. With a torque capacity of 400 ft-lbs, this clutch is suitable for both street driving and mild competition scenarios.

Construction and Design

The DF912053 utilizes a patented centrifugal weight system that enhances clamping force as RPMs increase, ensuring optimal performance under varying driving conditions. The clutch disc features a full face organic material on one side for longevity and a segmented organic facing on the other side, which increases holding capacity without compromising pedal feel.

Specifications

• Input Spline Quantity: 24
• Material: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
• Torque Capacity: 400 ft-lbs
• Clutch Disc Diameter: 250 mm
• Input Shaft Diameter: 1 inch
• Disc Type: Sprung Solid (Full face/Segmented face)
• Disc Material: Organic/Carbon composite
• Counterweight Assist: Yes

Vehicle Fitment

This clutch set is confirmed to fit the following Nissan models:

• Nissan Frontier (1999-2004)
• Nissan Pathfinder (1996-2000)
• Nissan Xterra (2000-2004)

Installation Notes

Installation of the DF912053 is straightforward for those familiar with clutch replacements. Ensure proper alignment and torque specifications are followed to achieve optimal performance. It is advisable to wash hands after installation due to potential exposure to chemicals as noted by California Proposition 65.
