Centerforce DF474898 Dual Friction Clutch Pressure Plate and Disc Set

The Centerforce DF474898 Dual Friction Clutch is designed for performance-driven applications, combining advanced engineering with high-quality materials to provide reliable power transfer and durability. This clutch set features a unique pressure plate and disc combination that enhances both street performance and mild competitive use.

Key Features

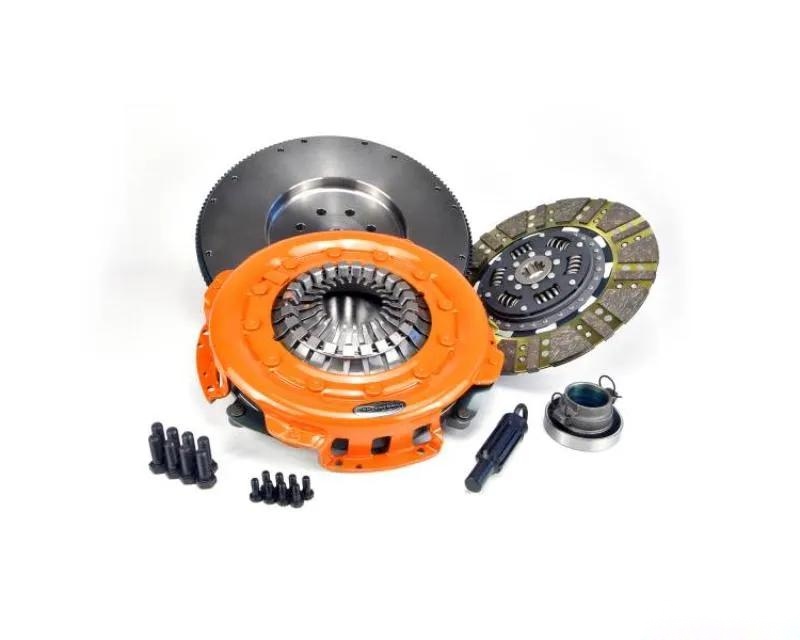

• Complete set includes cover, disc, flywheel, and necessary hardware
• 12.25-inch diameter for optimal engagement
• 1-1/4-inch x 10 spline input shaft for precise fitment
• Torque capacity of up to 685 ft-lbs, suitable for high-performance builds
• Constructed with a cast iron pressure plate and organic friction material
• Sprung hub disc design improves drivability and reduces chatter
• 152 tooth ring gear, 8 bolt crank, and 0 oz counterbalance for balanced operation

Specifications

• Out of package weight: 39.15 lbs
• Clutch disc type: Full face with organic material
• Counterweight assist for improved engagement
• Clutch bolt pattern: 22 (Refer to installation instructions for details)
• Release bearing and alignment tool included for straightforward installation
• Assembled in the USA for quality assurance

Installation Notes

For detailed installation instructions, please refer to the installation guide.

Fitment

• Dodge Ram 3500 Turbocharged - 5.9L (359 cid) - 6-Spd (NV5600) 1998-2000
• Dodge Ram 3500 Turbocharged - 5.9L (359 cid) - 5-Spd (NV4500) 1994-2005
• Dodge Ram 2500 Turbocharged - 5.9L (359 cid) - 6-Spd (NV5600) 1998-2000
• Dodge Ram 2500 Turbocharged - 5.9L (359 cid) - 5-Spd (NV4500) 1994-2005
