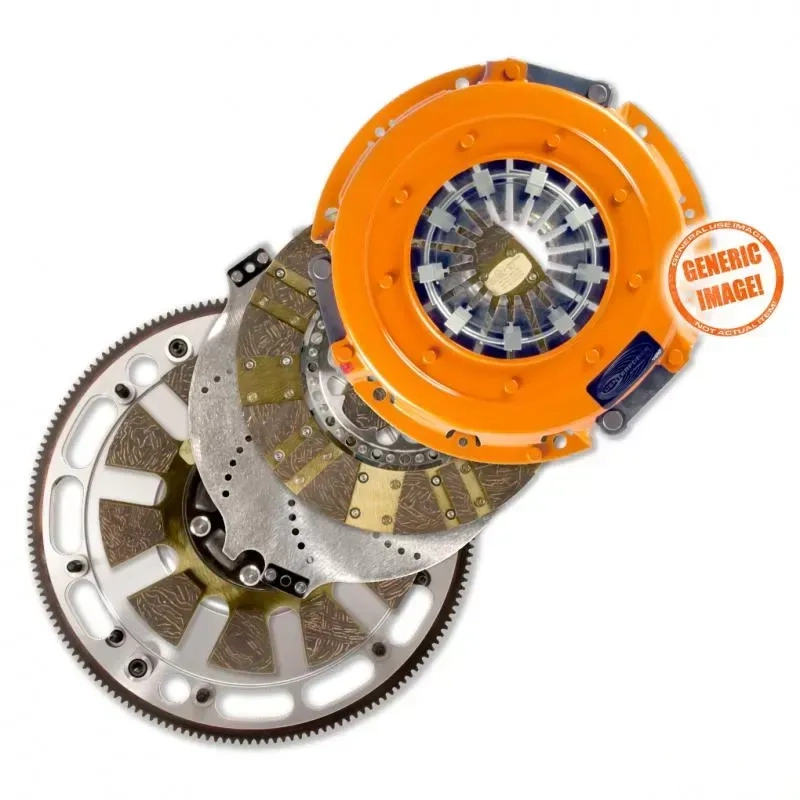

Centerforce DYAD DS 10.4" Clutch and Flywheel Kit - Part Number: 425613094

If you're looking for a high-performance clutch solution for your Dodge Viper from 2003 to 2006, the Centerforce DYAD DS 10.4" Clutch and Flywheel Kit is designed to meet your needs. Engineered specifically for the Viper's 8.3L V10 manual transmission, this kit offers a robust holding capacity ranging from 500 to 1300 ft/lbs of torque at the crank, making it an ideal choice for both street and track applications.

Key Features

• Clutch Disc Diameter: 10.4 inches
• Torque Capacity: Up to 1300 ft/lbs
• Counterweight Assist: Yes, for superior clamp load
• Disc Material: Organic/Carbon composite for enhanced durability
• Light Pedal Effort: Thanks to a patented ball bearing actuated pressure plate
• Match Balanced: Ready for installation with included ARP fasteners
• Manufactured in the USA: Components are designed, machined, and assembled domestically

Benefits

This clutch kit not only provides exceptional performance but also ensures smooth engagement and drivability. The sprung/dampened drive disc helps absorb shock, making it easier to handle during aggressive driving. The lightened billet steel flywheel contributes to quicker RPMs, enhancing your vehicle's responsiveness. Many customers have noted how the DYAD DS clutch transforms their driving experience, stating it feels “like a completely different car” with improved acceleration and pedal feel.

Technical Specifications

• Input Shaft Diameter: 1-1/8 inch
• Input Spline Quantity: 26
• Flywheel Crank Bolt Size: 7/16 x 20
• Ring Gear O.D: 14.568 inches
• Ring Gear Tooth Count: 143
• Flywheel Deck Height: 3.550 inches
• Flywheel Counter Balance Weight: 0

Customer Feedback

Users have praised the Centerforce DYAD DS clutch for its reliability and performance. One customer mentioned, “The engagement is so smooth, and I can feel the power transfer immediately.” Another noted, “Installation was straightforward, and the quality is top-notch. Definitely worth the investment for anyone serious about performance.”

Important Note

This product can expose you to chemicals including Nickel compounds and dusts, which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov. Please wash your hands following installation.
