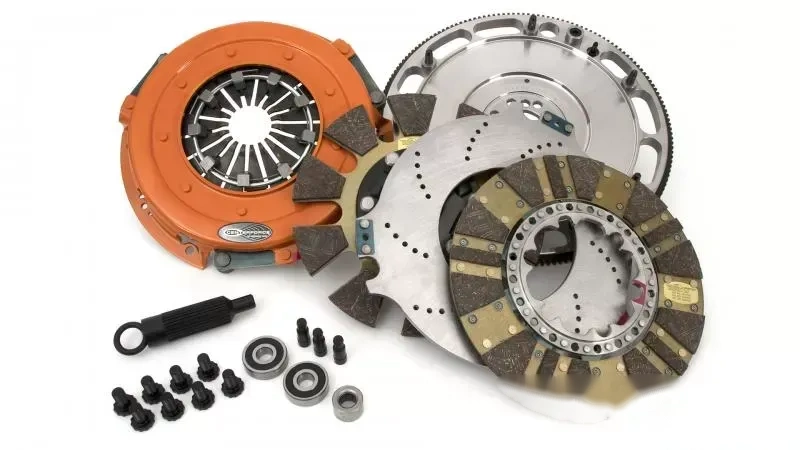

Centerforce DYAD DS 10.4" Twin Disc Clutch - PN: 413614844

If you're looking to enhance your vehicle's performance with a clutch that can handle the power, the Centerforce DYAD DS 10.4" twin disc clutch is engineered for you. Designed for vehicles demanding a torque capacity ranging from 500 to 1300 ft-lbs at the crank, this clutch system is perfect for those who push their engines to the limit.

Key Features

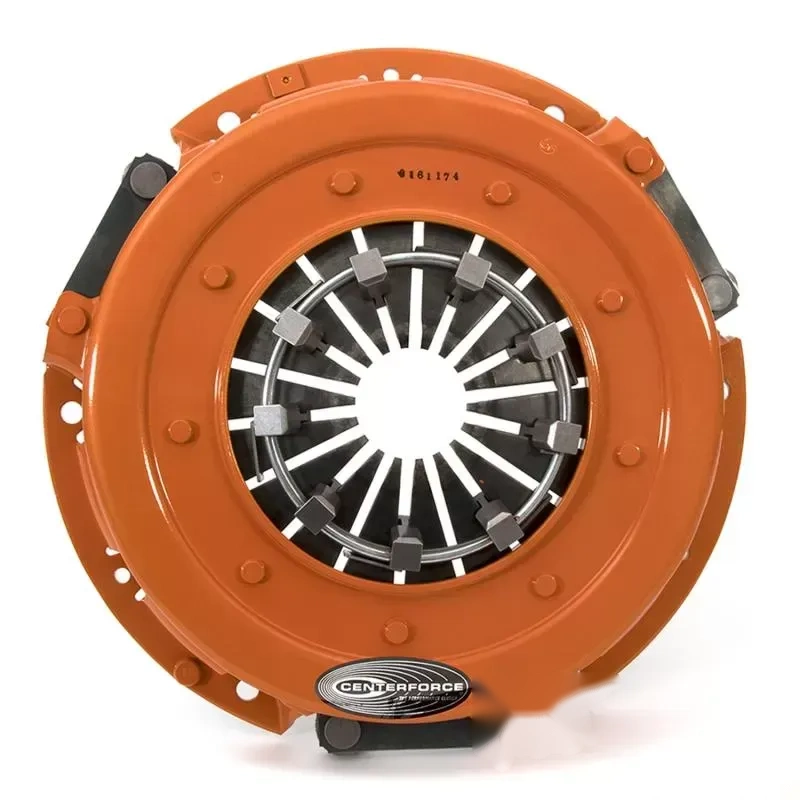

• Light Pedal Effort: Thanks to the patented ball bearing actuated pressure plate, you’ll experience a smooth engagement with minimal effort.
• Superior Holding Capacity: The organic segmented facings on the discs provide enhanced grip, ensuring your power is transferred efficiently without slippage.

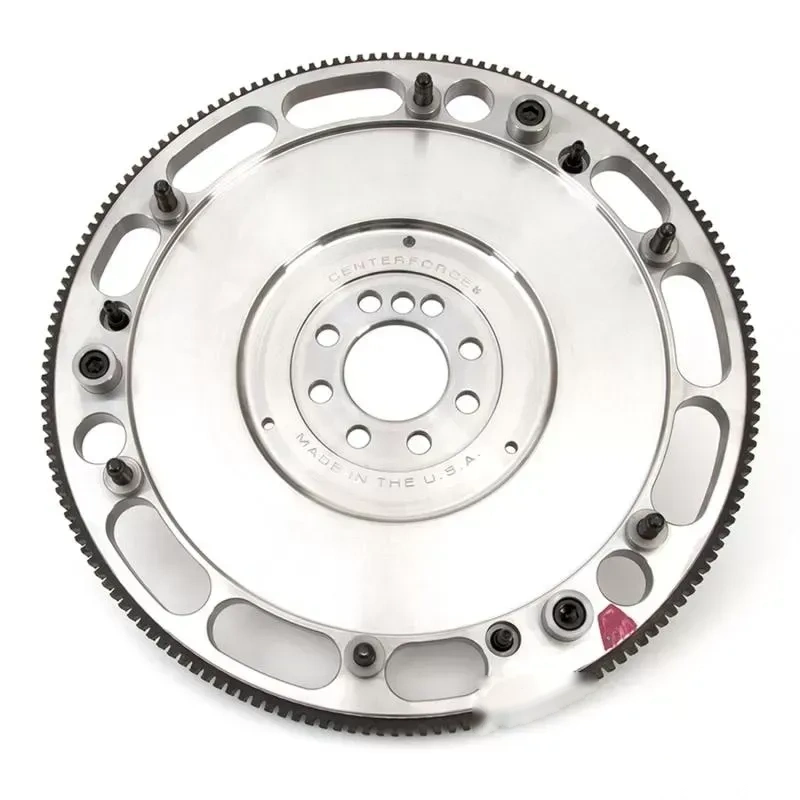

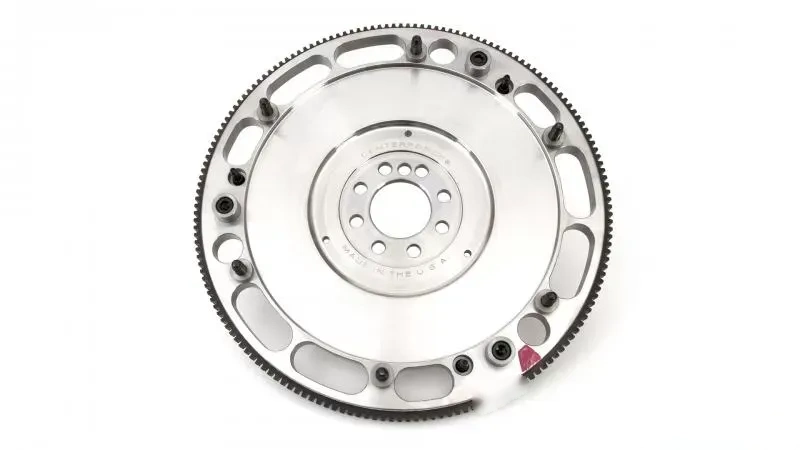

• Quick RPM Response: The lightened billet steel flywheel reduces inertia, allowing for faster revs and improved throttle response.
• Durable Construction: All components are designed, machined, and assembled in the USA, ensuring quality and reliability.

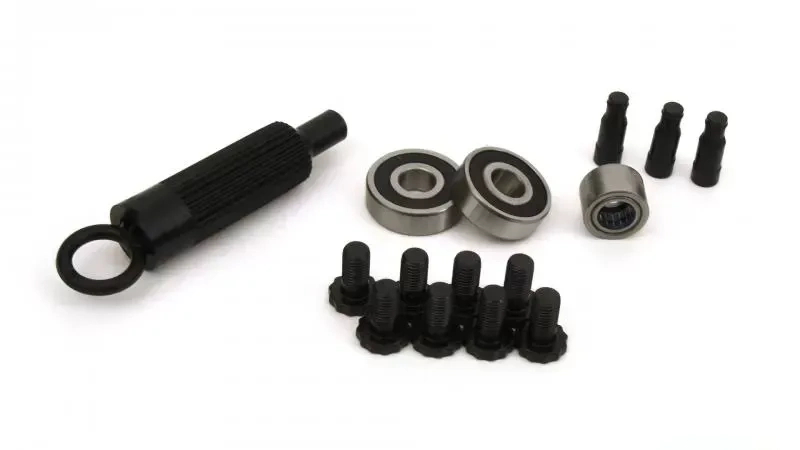

• Easy Installation: The DYAD DS clutch comes match balanced and includes ARP fasteners for straightforward installation.

Technical Specifications

• Clutch Disc Diameter: 10.4 inches
• Torque Capacity: Up to 1300 ft-lbs
• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 26
• Crankshaft Bolt Hole Quantity: 8
• Disc Type: Segmented face, Sprung
• Material: Billet Steel Flywheel, Nodular Iron Pressure Plate, Segmented Organic Friction
• Ring Gear Tooth Count: 168
• Flywheel Crank Bolt Size: 11mm
• Flywheel Deck Height: 2.760 inches
• Flywheel Crank Flange Register: 2.068 inches

Fitment

This clutch kit is ideal for a wide range of performance vehicles, particularly those that require a high-torque clutch solution. Always verify compatibility for your specific year, make, and model to ensure optimal performance.

Customer Insights

F150 owners have reported that the DYAD DS clutch significantly improved their towing performance, allowing for smoother shifts under heavy loads. Meanwhile, Mustang GT drivers rave about the enhanced throttle response and the light pedal feel, making spirited drives even more enjoyable.

Important Note

California Proposition 65: This product can expose you to chemicals including Nickel compounds and dusts, which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov. Be sure to wash your hands after installation.
