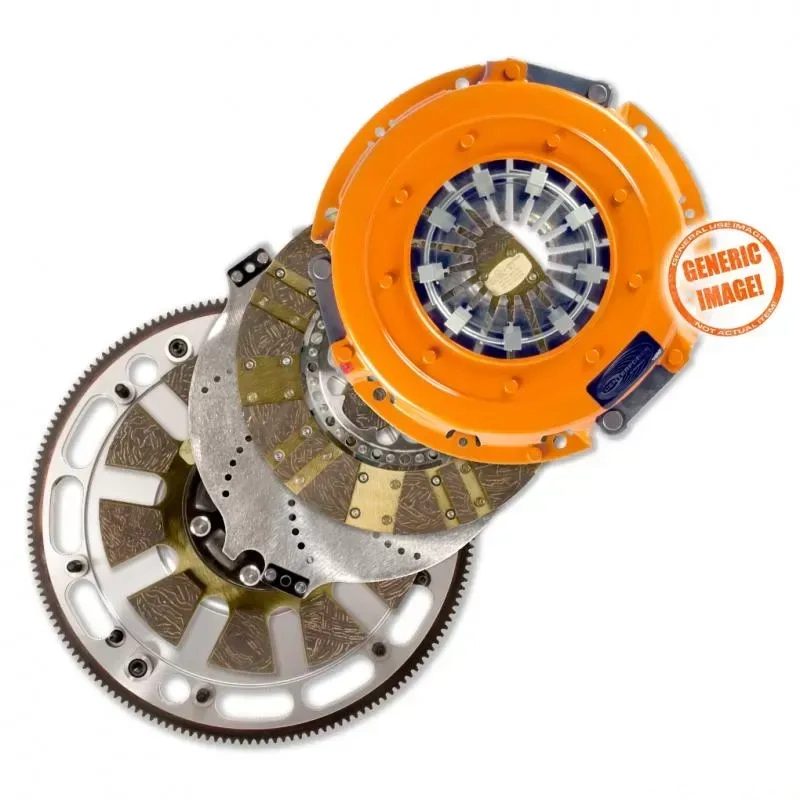

Centerforce DYAD DS 10.4" Twin Disc Clutch (PN: 413614800)

If you're looking to upgrade the clutch in your classic Chevrolet muscle car, the Centerforce DYAD DS 10.4" twin disc clutch is engineered to meet the demands of serious performance enthusiasts. Designed for vehicles requiring a torque capacity of 500 to 1300 ft/lbs at the crank, this clutch system not only enhances power transfer but also ensures smooth engagement and light pedal effort, making it perfect for both street and track applications.

Why Choose the DYAD DS Clutch?

The DYAD DS clutch features a patented centrifugal weight system that provides superior clamp load compared to stock setups. This means you get better grip and performance under high torque conditions, ensuring that your power is effectively transferred to the wheels. The included ball bearing actuated pressure plate also contributes to a lighter pedal feel, making it easier to drive, whether you're in stop-and-go traffic or on a spirited drive.

Key Features

• Clutch Disc Diameter: 10.4 inches
• Torque Capacity: 1300 ft/lbs
• Disc Material: Organic/Carbon composite
• Disc Type: Segmented face with sprung design for smooth drivability
• Lightened billet steel flywheel for low inertia and quicker RPM response
• Components are designed, machined, and assembled in the USA
• Match balanced and ready for installation with included ARP fasteners

Fitment

The Centerforce DYAD DS clutch is compatible with a wide range of classic Chevrolet models, including:

• Chevrolet Bel Air (1962-1972)
• Chevrolet Biscayne (1958-1972)
• Chevrolet Camaro (1967-1985)
• Chevrolet Caprice (1966-1972)
• Chevrolet Chevelle (1964-1973)
• Chevrolet Chevy II (1965-1968)
• Chevrolet Corvette (1957-1972, 1978, 1984-1985)
• Chevrolet El Camino (1964-1975, 1979-1981)
• Chevrolet Impala (1958-1972)
• Chevrolet Malibu (1964-1967, 1973-1975, 1979-1981)
• Chevrolet Monte Carlo (1970-1975, 1979, 1981)
• Chevrolet Nova (1969-1979)

Technical Specifications

• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 26
• Flywheel Crank Bolt Size: 7/16 x 20
• Flywheel Deck Height: 2.870 inches
• Ring Gear O.D: 12.835 inches
• Ring Gear Tooth Count: 153

Customer Feedback

Chevrolet Camaro owners have noted how the DYAD DS clutch transformed their driving experience. One customer mentioned, "I installed the Centerforce DYAD DS in my 1970 Camaro, and the pedal feel is so much lighter than my old setup. Plus, it holds the power from my LS swap without any slipping!"

Important Notes

California Proposition 65: This product may expose you to chemicals known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov. Please wash your hands after installation.
