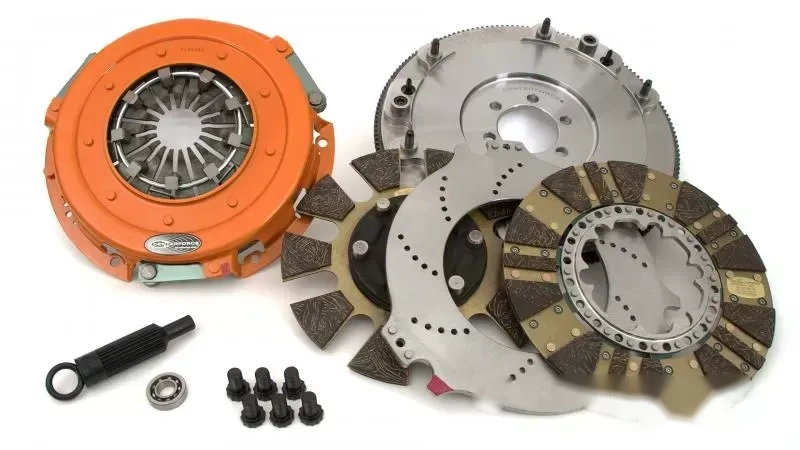

Centerforce DYAD DS 10.4" Clutch and Flywheel Kit - Part Number: 413614860

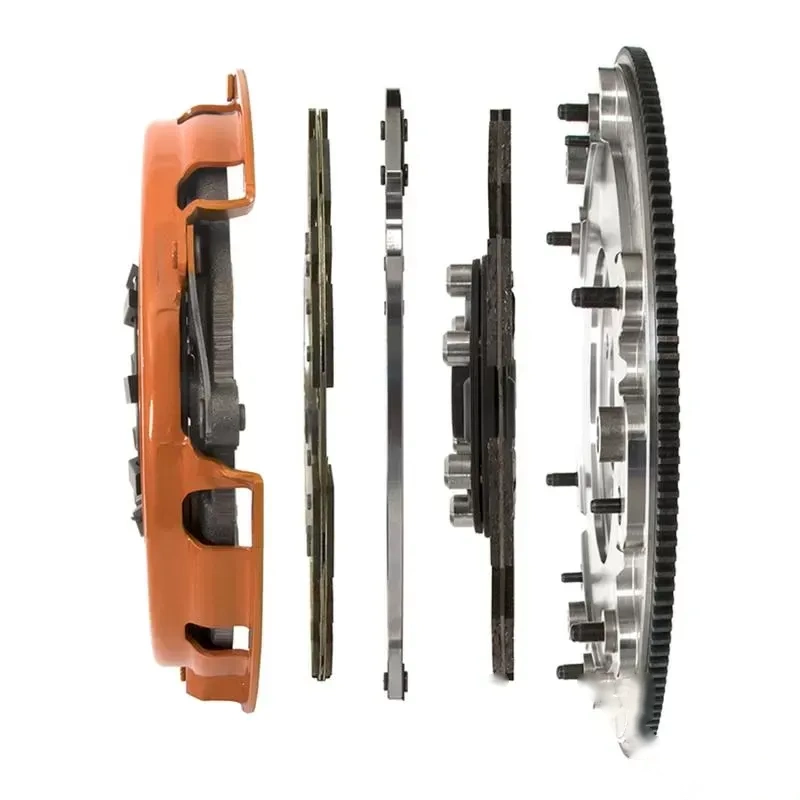

The Centerforce DYAD DS 10.4" twin disc clutch is engineered for those who demand performance without compromise. Designed to handle torque levels from 500 to 1300 ft/lbs at the crank, this clutch kit is perfect for enthusiasts looking to enhance their vehicle's capabilities. With its innovative design, the DYAD DS offers superior clamp load thanks to a patented centrifugal weight system, ensuring you get the most out of your engine.

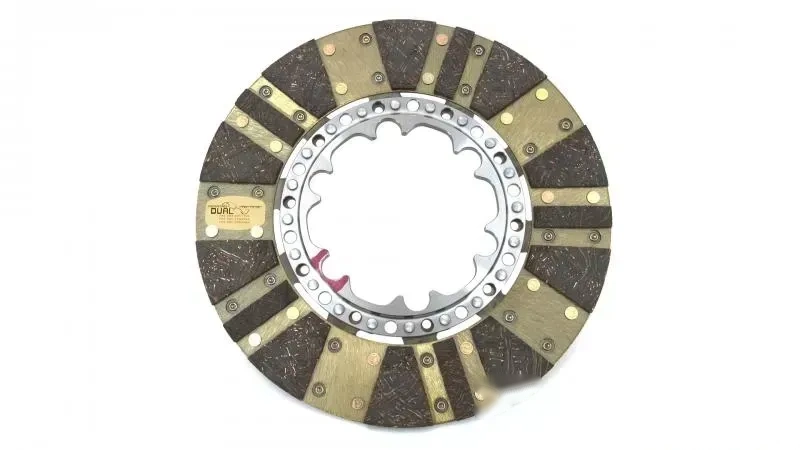

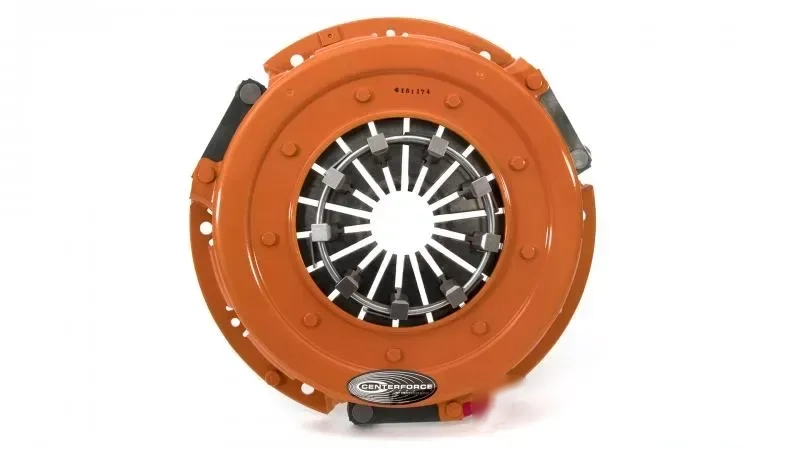

One standout feature is the light pedal effort provided by the ball bearing actuated pressure plate, making it easier to operate without sacrificing performance. The organic segmented facings on the discs enhance holding capacity while the sprung/dampened drive disc ensures smooth engagement and drivability, even under heavy use.

Constructed with a lightened billet steel flywheel, this kit promotes quicker RPMs, allowing for a more responsive driving experience. All components are meticulously designed, machined, and assembled in the USA, ensuring high quality and reliability. Plus, the DYAD DS clutches come match balanced and ready for installation with included ARP fasteners.

Customer Feedback

"I installed the Centerforce DYAD DS clutch in my 1970 Pontiac Firebird, and the difference is night and day. The engagement is smooth, and I can feel the extra power transfer to the wheels. Highly recommend!" - Mike T.

"This clutch kit is a game changer! The pedal feel is light, and it holds power like a champ. Perfect for my setup." - Sarah L.

Features

• California Proposition 65: WARNINGS: This product can expose you to chemicals including Nickel compounds and dusts, which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov. Wash hands following installation.
• Clutch Disc Diameter: 10.4 inches
• Counterweight Assist: Yes
• Crankshaft Bolt Hole Quantity: 6
• Disc Material: Organic/Carbon composite
• Disc Type: Sprung, Segmented face
• Flywheel Material: Billet Steel
• Torque Capacity: 1300 ft/lbs

Technical Specifications

• Flywheel Crank Bolt Size: 1/2 x 20
• Flywheel Crank Flange Register: 2.750 inches
• Flywheel Deck Height: 2.910 inches
• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 26
• Out of Package Weight: 51.75 lbs
• Ring Gear O.D: 13.979 inches
• Ring Gear Tooth Count: 166

Vehicle Fitment

This clutch kit is compatible with:

• Pontiac Firebird 1967-1982
• Pontiac Tempest 1964-1970

Upgrade your vehicle's performance with the Centerforce DYAD DS 10.4" Clutch and Flywheel Kit. Experience the difference in your driving experience today!
