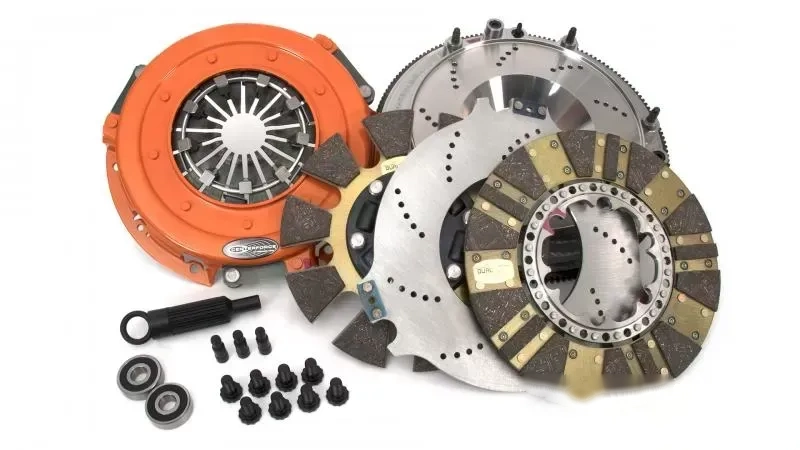

Centerforce DYAD DS 10.4" Twin Disc Clutch (PN: 413614847)

If you’re looking to boost the performance of your 2009-2015 Cadillac CTS-V or 2012-2015 Chevrolet Camaro ZL1, the Centerforce DYAD DS 10.4" twin disc clutch is engineered to meet your needs. Designed for vehicles requiring a holding capacity between 500 to 1300 ft/lbs of torque at the crank, this clutch is perfect for those who demand precision and performance from their ride.

Why Choose the DYAD DS Clutch?

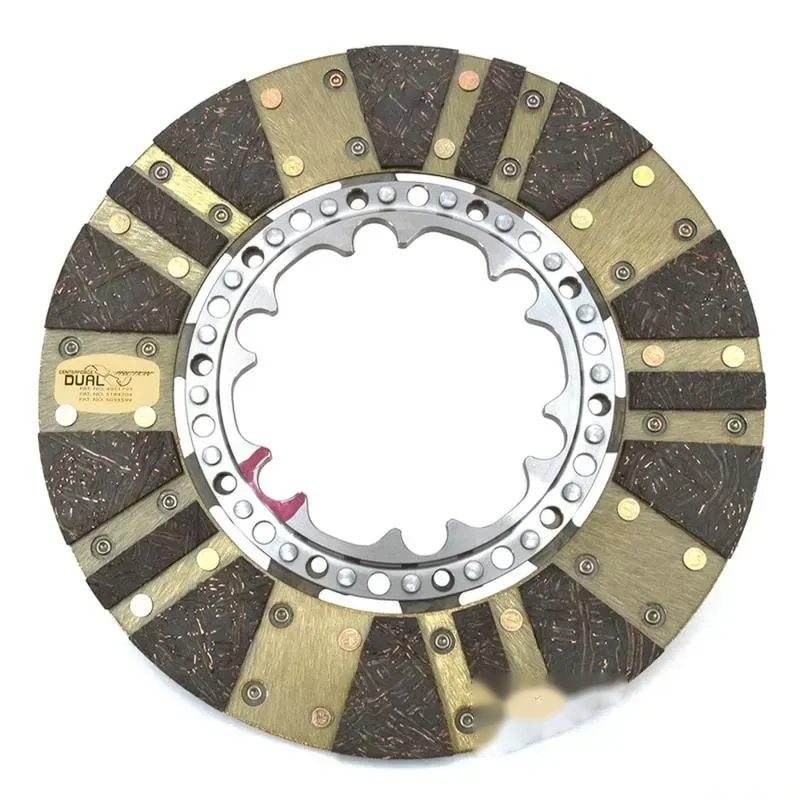

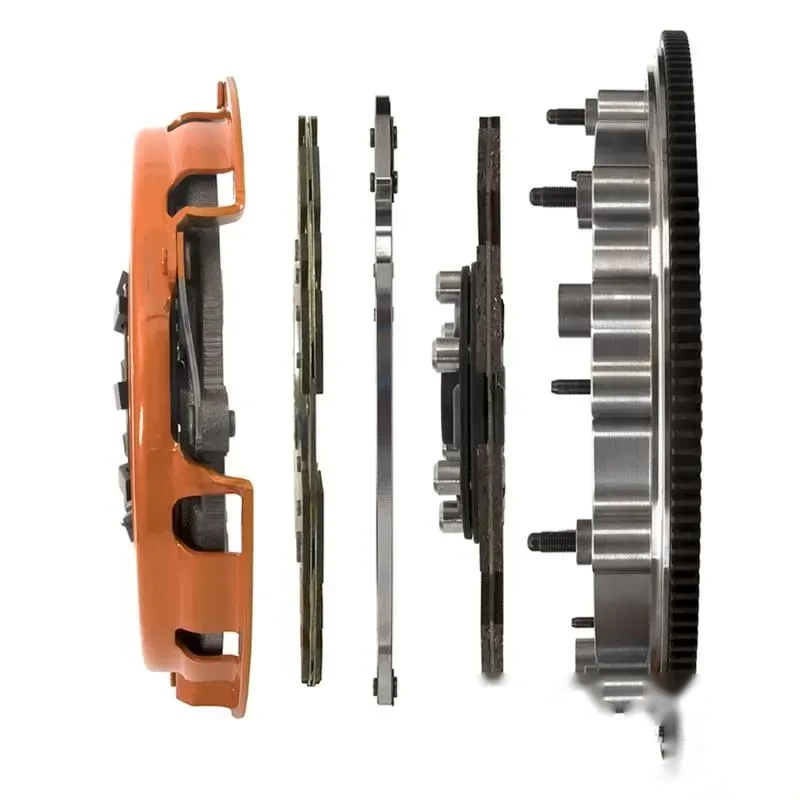

The DYAD DS clutch features a patented centrifugal weight system that delivers superior clamp load compared to stock options, ensuring you get the most out of your engine’s power. The ball bearing actuated pressure plate offers a light pedal feel, making it easier to handle during daily driving or spirited runs. With organic segmented facings on the discs, you can expect increased holding capacity without sacrificing drivability. Plus, the sprung/dampened drive disc ensures smooth engagement, so you can focus on enjoying the drive.

Lightweight and Responsive

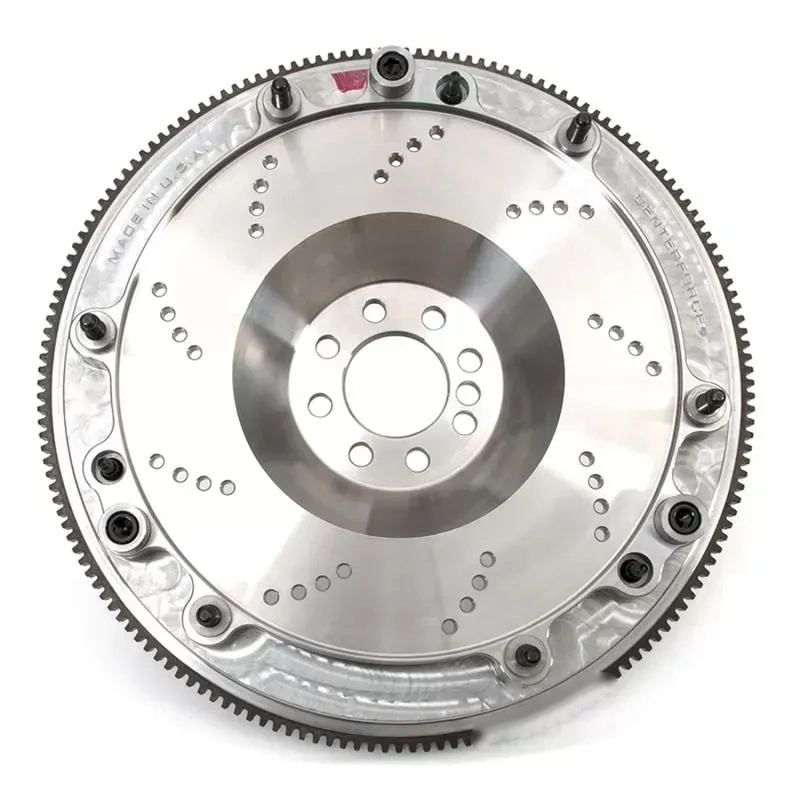

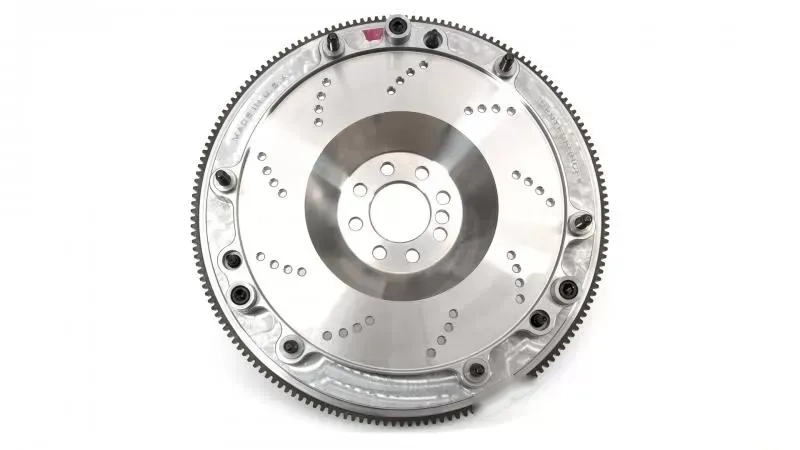

Equipped with a lightened billet steel flywheel, the DYAD DS clutch provides low inertia, allowing for quicker RPM response. This means faster shifts and a more engaging driving experience. All components are designed, machined, and assembled in the USA, ensuring top-notch quality and performance. Plus, it's match balanced and ready for installation with the included ARP fasteners.

Key Features

• Diameter: 10.4" (264.2mm)
• Input Shaft: 1-1/8" x 26 Spline
• Torque Capacity: Up to 1300 ft/lbs
• Weight: 49.70 lbs
• Disc Material: Sprung Hub Disc with Organic/Carbon Composite
• Ring Gear: 168 Tooth, 8 Bolt Crank
• Counterbalance Weight: 0 oz

Specifications

• Clutch Disc Diameter: 10.4"
• Counterweight Assist: Yes
• Crankshaft Bolt Hole Quantity: 8
• Disc Type: Segmented Face, Sprung
• Flywheel Crank Bolt Size: 11mm
• Flywheel Crank Flange Register: 2.068"
• Flywheel Deck Height: 3.780"
• Input Shaft Diameter: 1-1/8"
• Input Spline Quantity: 26
• Material: Billet Steel Flywheel, Nodular Iron Pressure Plate, Segmented Organic Friction
• Out of Package Weight: 49.70 lbs
• Ring Gear O.D: 14.096"
• Ring Gear Tooth Count: 168

Installation Instructions

• For detailed installation instructions, CLICK HERE.

Fitment

• Cadillac CTS V - Supercharged 6.2L 6-Speed (2009-2015)
• Chevrolet Camaro ZL1 - Supercharged 6.2L (376 CID) 6-Speed (2012-2015)

Upgrade your vehicle's clutch system today with the Centerforce DYAD DS 10.4" twin disc clutch and experience the difference in performance and drivability!
