Centerforce® II Clutch and Flywheel Kit - KCFT811035

If you’re looking to enhance the performance of your Toyota Tacoma 3.5L 6-SPD (2016-2023), the Centerforce® II Clutch and Flywheel Kit (KCFT811035) is a top-notch choice. Designed for those who demand reliability and power, this clutch system combines advanced engineering with high-quality materials to deliver exceptional performance, whether you're hitting the trails or towing heavy loads.

Key Features

• 11" Diameter: A perfect fit for your Tacoma.
• 279.4mm Diameter: Ensures compatibility with your vehicle's specifications.
• 1.125" x 21 Spline Input Shaft: Robust design for smooth engagement.
• Torque Capacity: Holds up to 406 ft/lbs, ideal for high-performance applications.
• Sprung Hub Disc: Made with organic material for better shock absorption.
• 129 Tooth Ring Gear: Designed for durability with an 8-bolt crank setup.
• Ball Bearing Pressure Plate: Where applicable, enhances clutch operation.

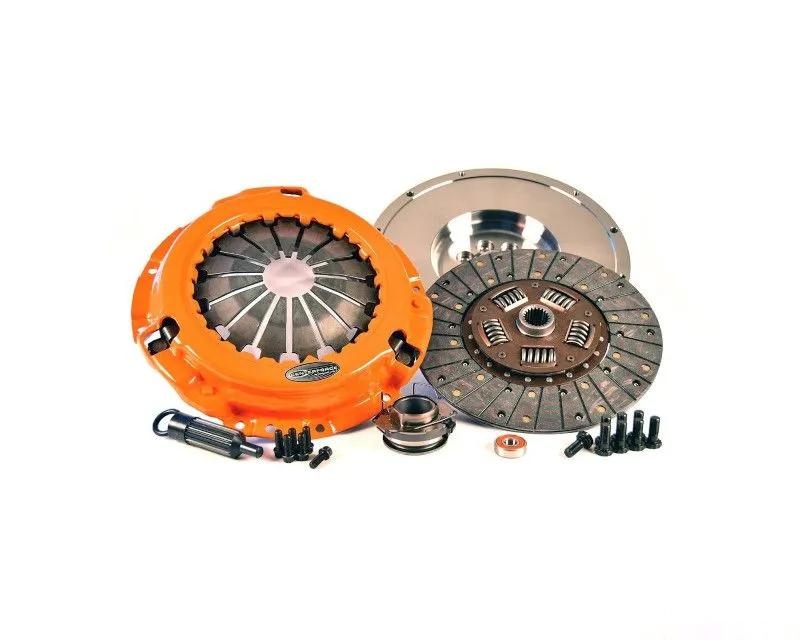

What’s Included

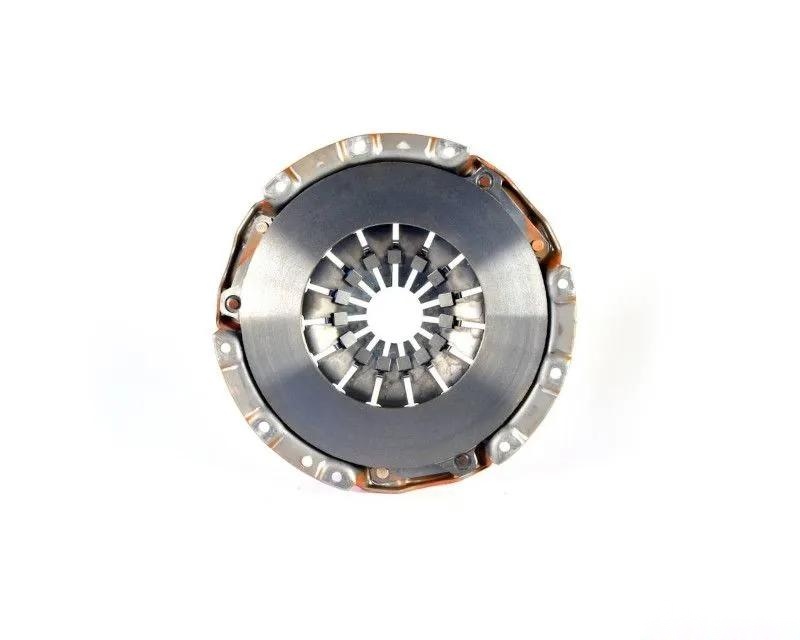

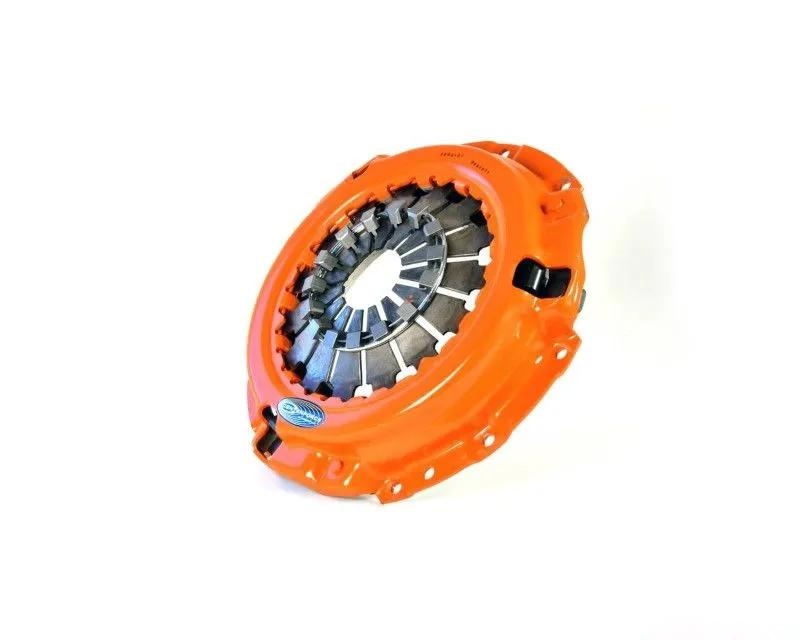

• Pressure Plate

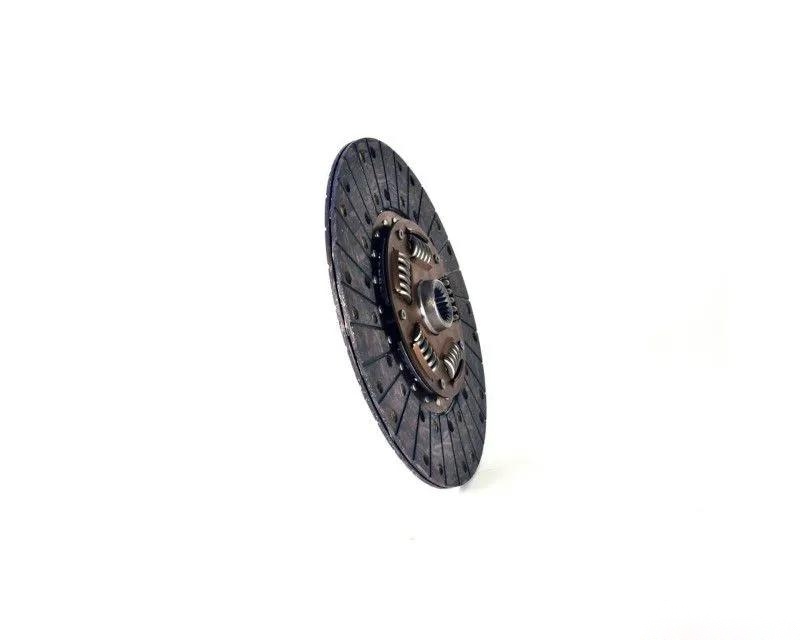

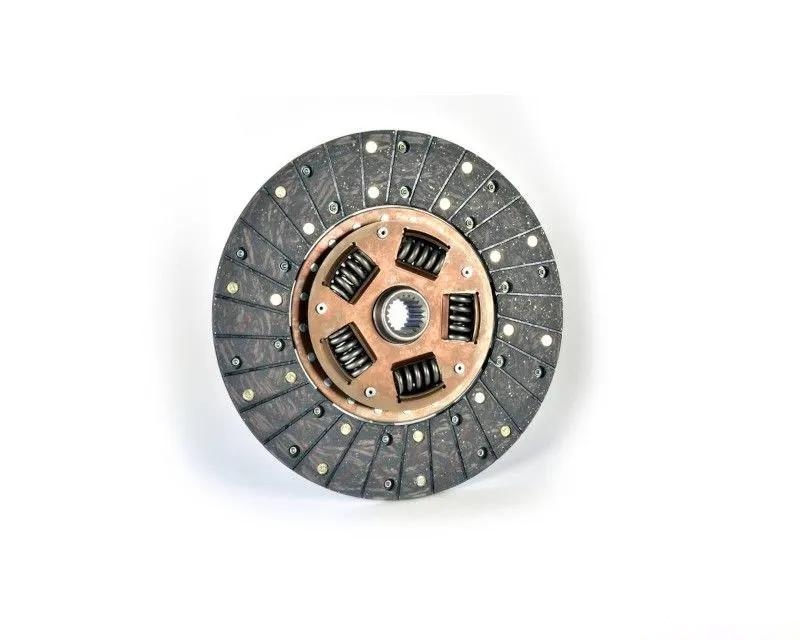

• Disc
• Flywheel
• Throwout Bearing (T.O.B.)
• Pilot Bearing
• Bolts
• Alignment Tool

Specifications

• Material: Cast Iron Pressure Plate / Organic Friction
• Input Shaft Diameter: 1.125 inches
• Input Spline Quantity: 21
• Clutch Disc Diameter: 11 inches (279.4mm)
• Disc Type: Full face, Sprung Solid
• Alignment Tool Included: Yes
• Mounting Hardware Included: Yes
• Pilot Bushing Included: Yes
• Release Bearing Included: Yes
• Torque Capacity: 406 ft-lbs
• Flywheel Crank Bolt Size: M10 x 1.125 x 22 mm
• Made In The USA: Assembled with pride
• Tooth Quantity: 129
• Ring Gear OD: 13.195 inches
• Crankshaft Bolt Hole Quantity: 8

Installation Instructions

• For Clutch Bolt Patterns, CLICK HERE
• For Install Instructions, CLICK HERE

Fitment

• Toyota Tacoma 3.5L 6-SPD (2016-2023)

Customer Feedback

Many Tacoma owners have reported significant improvements in their truck's performance after installing the Centerforce II Clutch. One user noted, “Installed this on my 2020 Tacoma and it transformed my driving experience. The engagement is smooth, and I can feel the extra torque when towing my trailer—definitely a worthwhile upgrade!”
