Centerforce II Clutch Pressure Plate and Disc Set (CFT489989)

The Centerforce II Clutch Series is engineered for serious performance, featuring a full-facing disc made from premium organic friction material. This clutch set is designed to provide exceptional holding power and longevity, making it suitable for a variety of applications, including street/strip, off-road, and towing. The pressure plate incorporates centrifugal weights where applicable, enhancing its clamp load through patented machining processes.

Key Features

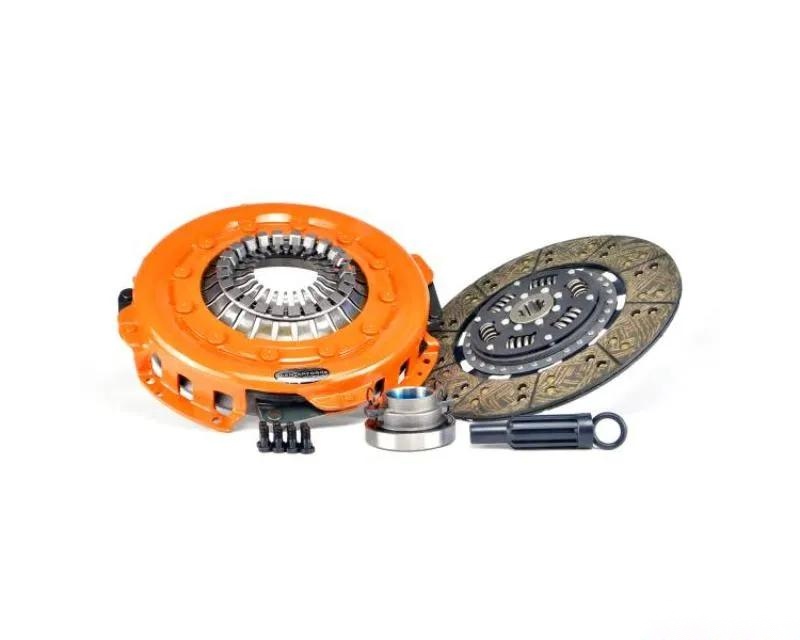

• Includes: Cover, Disc, Release Bearing, Pressure Plate Bolts, Alignment Tool
• Diameter: 12.25 inches
• Input Shaft: 1-1/4 inches x 10 Spline
• Torque Capacity: Holds up to 685 ft-lbs
• Weight: 39.15 lbs
• Crankshaft Bolt Pattern: 8 Bolt
• Centrifugally Assisted Ball Bearing Pressure Plate (where applicable)
• Light pedal effort for easier engagement

Specifications

• Material: Cast Iron Pressure Plate with Organic Friction Disc
• Clutch Disc Type: Full face
• Disc Material: Organic
• Counterweight Assist: Yes
• Clutch Bolt Pattern: 22 (Refer to Clutch Bolt Patterns on the Instructions Tab)
• Series: Centerforce II
• Release Bearing Included: Yes
• Mounting Hardware Included: Yes
• Made in the USA: Assembled

Installation Notes

• For detailed installation instructions, CLICK HERE.

Fitment

• Dodge Ram 3500 Turbocharged - 5.9L (359 cid) - 6-Spd (NV5600) 1998-2000
• Dodge Ram 3500 Turbocharged - 5.9L (359 cid) - 5-Spd (NV4500) 1994-2005
• Dodge Ram 2500 Turbocharged - 5.9L (359 cid) - 6-Spd (NV5600) 1998-2000
• Dodge Ram 2500 Turbocharged - 5.9L (359 cid) - 5-Spd (NV4500) 1994-2005
