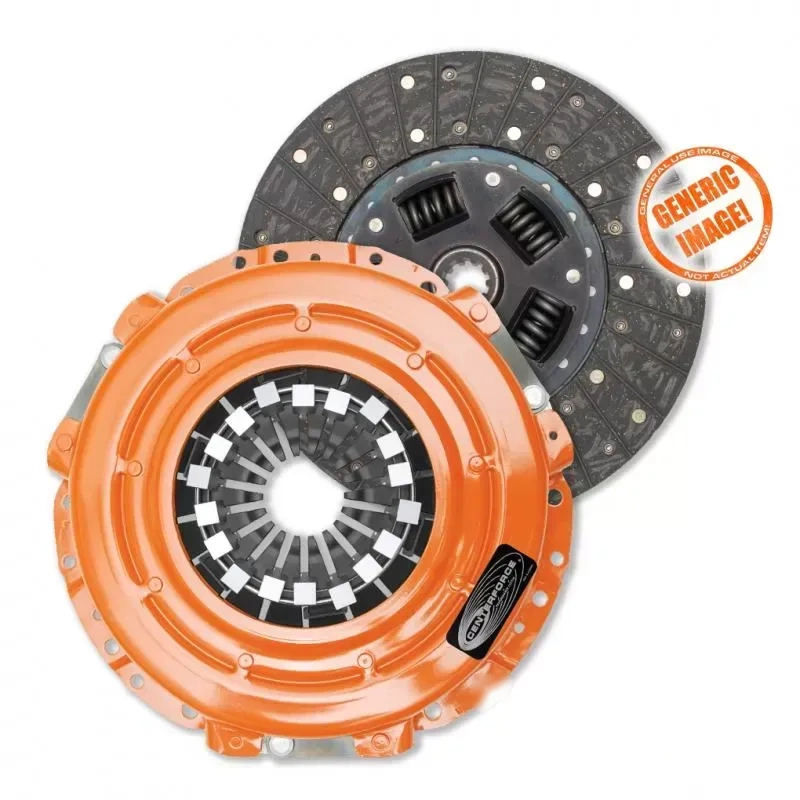

Centerforce II Clutch Pressure Plate and Disc Set - CFT547035

The Centerforce II Clutch Pressure Plate and Disc Set, part number CFT547035, is engineered for performance and durability, making it an excellent choice for Nissan Axxess and Stanza models equipped with the 2.4L engine from 1990 to 1993. This clutch system combines advanced materials and innovative design to enhance your vehicle's drivability and longevity.

Key Specifications

• Material: Cast Iron Pressure Plate with Organic Friction Disc
• Torque Capacity: 282 ft-lbs
• Clutch Disc Diameter: 225 mm
• Input Shaft Diameter: 1 inch
• Input Spline Quantity: 24
• Disc Type: Full Face, Sprung Solid
• Flywheel Step: 0.004 inches

Installation Insights

Installation of the CFT547035 is straightforward for those familiar with clutch replacements. Ensure that the flywheel surface is clean and free from debris to achieve optimal contact with the pressure plate. Note that the pressure plate and disc are sold separately for some applications, so verify your needs before purchasing.

Compliance and Safety

This product falls under California Proposition 65 regulations. It may expose users to chemicals, including Nickel compounds and dusts, which are known to cause cancer. For further information, visit www.P65Warnings.ca.gov. It is advisable to wash hands thoroughly after installation.

Fitment

This clutch set is confirmed to fit the following model:

• Nissan Stanza 1992
