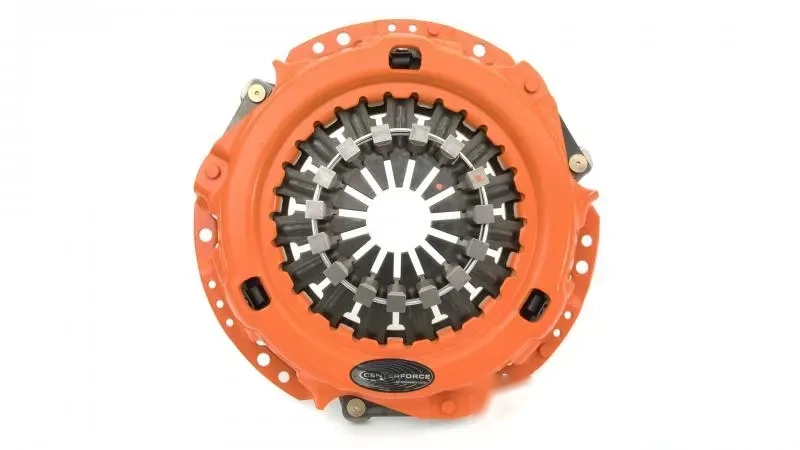

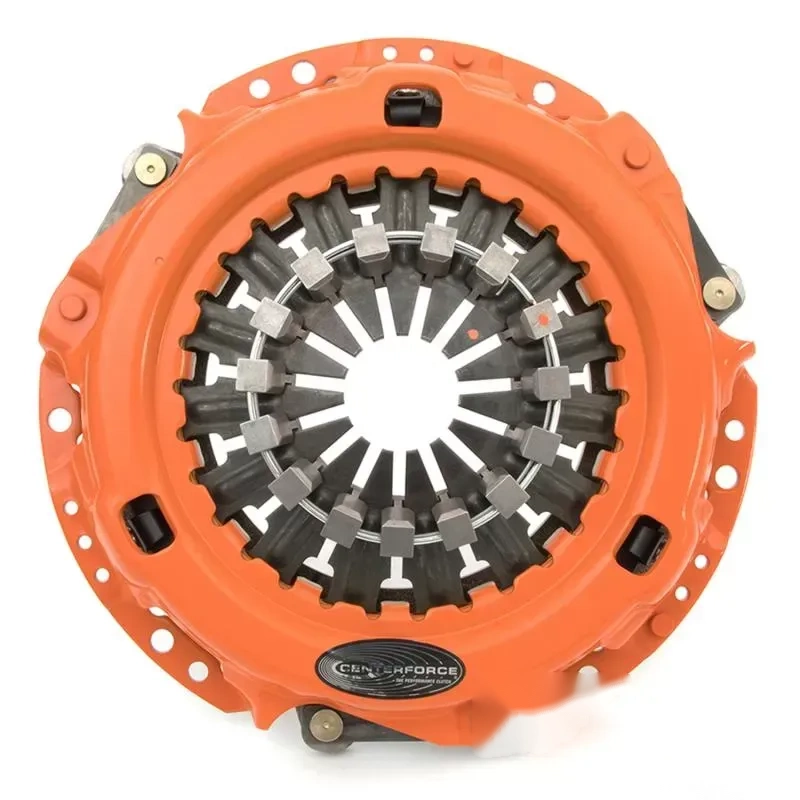

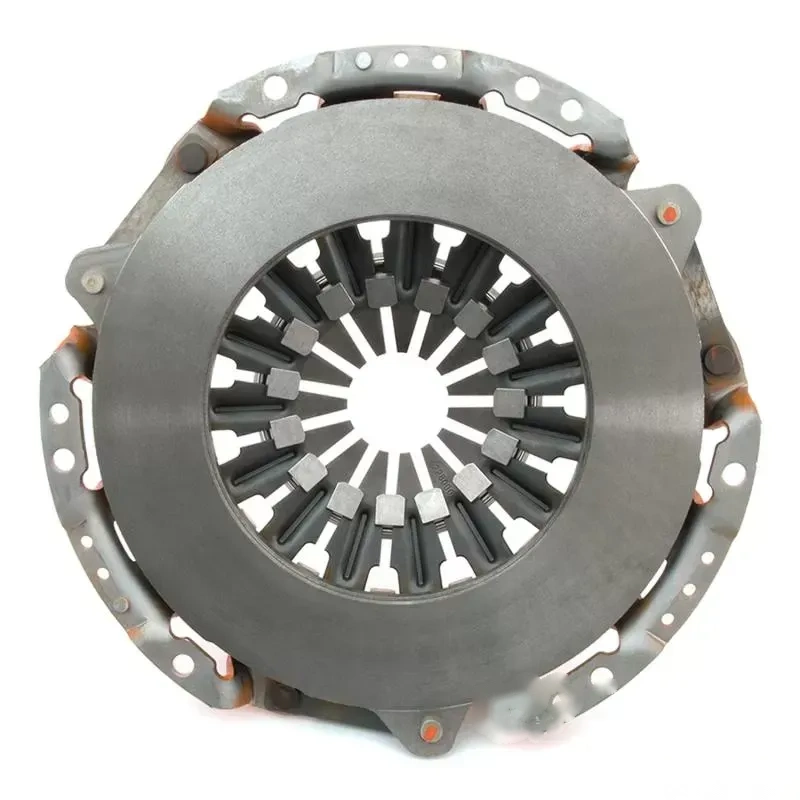

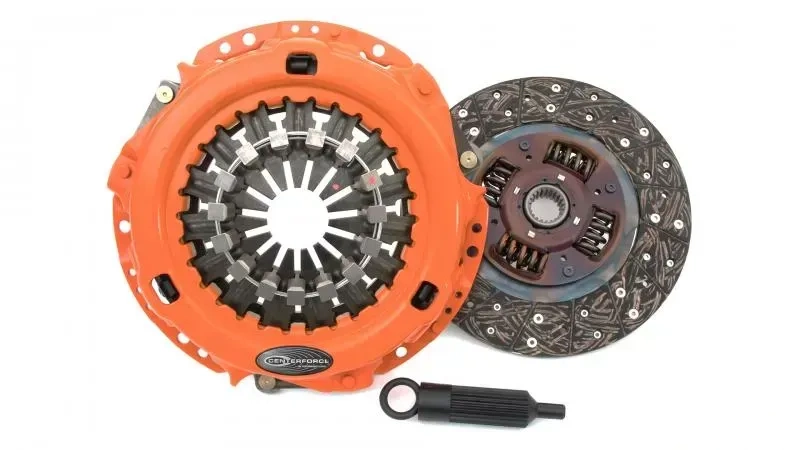

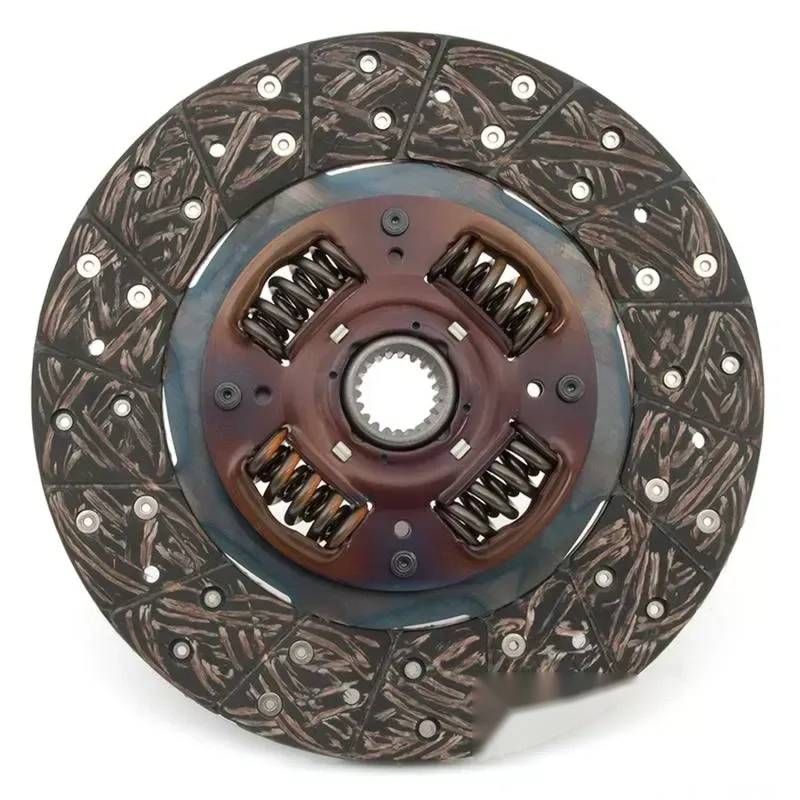

Centerforce II Clutch Pressure Plate and Disc Set - CFT505120

The Centerforce CFT505120 is engineered for those who demand reliability and performance from their clutch system. This clutch pressure plate and disc set features a full-facing design crafted from premium organic friction material, ensuring optimal grip and durability. The innovative centrifugal weights incorporated into the pressure plate enhance holding power, making it suitable for a variety of applications including street, strip, off-road, and towing.

Technical Specifications

• Clutch Bolt Pattern: 20
• Clutch Disc Diameter: 250 mm
• Counterweight Assist: Yes
• Disc Material: Organic
• Disc Type: Full face, Sprung
• Flywheel Step: 0.018 inches
• Input Shaft Diameter: 1-1/8 inches
• Input Spline Quantity: 21
• Material: Cast Iron Pressure Plate with Organic Friction
• Torque Capacity: 368 ft-lbs

Fitment

The CFT505120 is compatible with the following Toyota models:

• Toyota 4Runner (1996-2000)
• Toyota T100 (1993-1998)
• Toyota Tacoma (1995-2017)

Installation Notes

When installing the Centerforce II clutch set, ensure that all components are clean and free of contaminants to maintain optimal performance. It is advisable to follow the manufacturer's torque specifications during installation to achieve the best results.

Note: This product may expose you to chemicals known to the State of California to cause cancer, including Nickel compounds. For more information, visit www.P65Warnings.ca.gov. Wash hands thoroughly after installation.
