Centerforce II Clutch Series - CFT474898 Overview

If you're looking to amp up the performance of your Dodge Ram 2500 or Dodge Ram 3500 (1994-2005), the Centerforce II Clutch Series CFT474898 is your go-to solution. This clutch kit is designed for those who demand reliability and power, whether you're hitting the street, tackling off-road trails, or hauling heavy loads. With its innovative design and superior materials, this clutch provides the perfect balance of holding power and longevity.

Why Choose the Centerforce II Clutch?

The Centerforce II Clutch Series stands out with its unique combination of a full-facing disc made from premium friction material and a pressure plate that features centrifugal weights. This setup enhances the static clamp load thanks to patented machining processes, resulting in exceptional holding power and a longer clutch life. It's engineered to handle up to 685 ft/lbs of torque, making it ideal for both street and strip applications, as well as off-road and towing scenarios.

Key Features

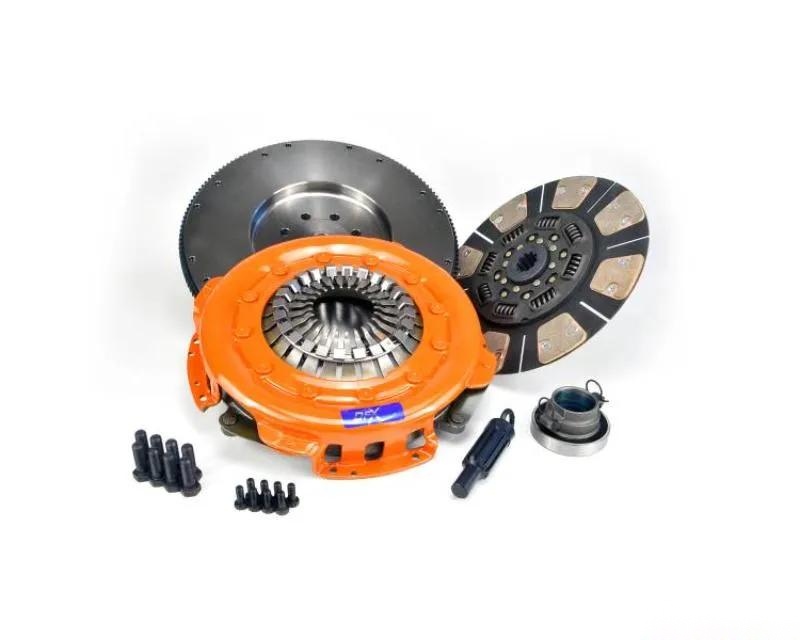

• Complete kit includes: Cover, Disc, Flywheel, and Hardware
• Diameter: 12.25 inches
• Input Shaft: 1-1/4 inches x 10 Spline
• Maximum Torque Capacity: 685 ft/lbs
• Weight: 93.15 lbs
• Disc Type: Sprung Hub with Organic Material
• 152 Tooth Ring Gear, 8 Bolt Crank, and 0 oz Counter Balance
• Centrifugally Assisted for improved performance

Technical Specifications

• Out of Package Weight: 93.15 lbs
• Material: Cast Iron Pressure Plate with Organic Friction
• Input Shaft Diameter: 1-1/4 inches
• Input Spline Quantity: 10
• Clutch Disc Diameter: 12.25 inches
• Disc Material: Organic
• Disc Type: Full Face, Sprung Solid
• Counterweight Assist: Yes
• Clutch Bolt Pattern: 22 (Refer to installation instructions)
• Type: Clutch and Flywheel Kit
• Release Bearing Included: Yes
• Mounting Hardware Included: Yes
• Made in the USA: Assembled
• Alignment Tool Included: Yes
• Tooth Quantity: 152
• Ring Gear OD: 15.625 inches
• Crankshaft Bolt Hole Quantity: 8

Fitment

• Dodge Ram 2500 Turbocharged - 5.9L (359 cid) - 5-Spd (NV4500) 1994-2005
• Dodge Ram 2500 Turbocharged - 5.9L (359 cid) - 6-Spd (NV5600) 1998-2000
• Dodge Ram 3500 Turbocharged - 5.9L (359 cid) - 5-Spd (NV4500) 1994-2005
• Dodge Ram 3500 Turbocharged - 5.9L (359 cid) - 6-Spd (NV5600) 1998-2000

Installation Instructions

• For detailed installation instructions, CLICK HERE
• For clutch bolt patterns, CLICK HERE

Note

Most items ship within 1 to 5 days, but please be aware that delays can occur. If an item cannot be shipped by the next business day, you will be notified promptly.

Upgrade your Dodge Ram with the Centerforce II Clutch Series CFT474898 and experience the difference in power and performance. It's not just a clutch; it's a commitment to driving excellence.
