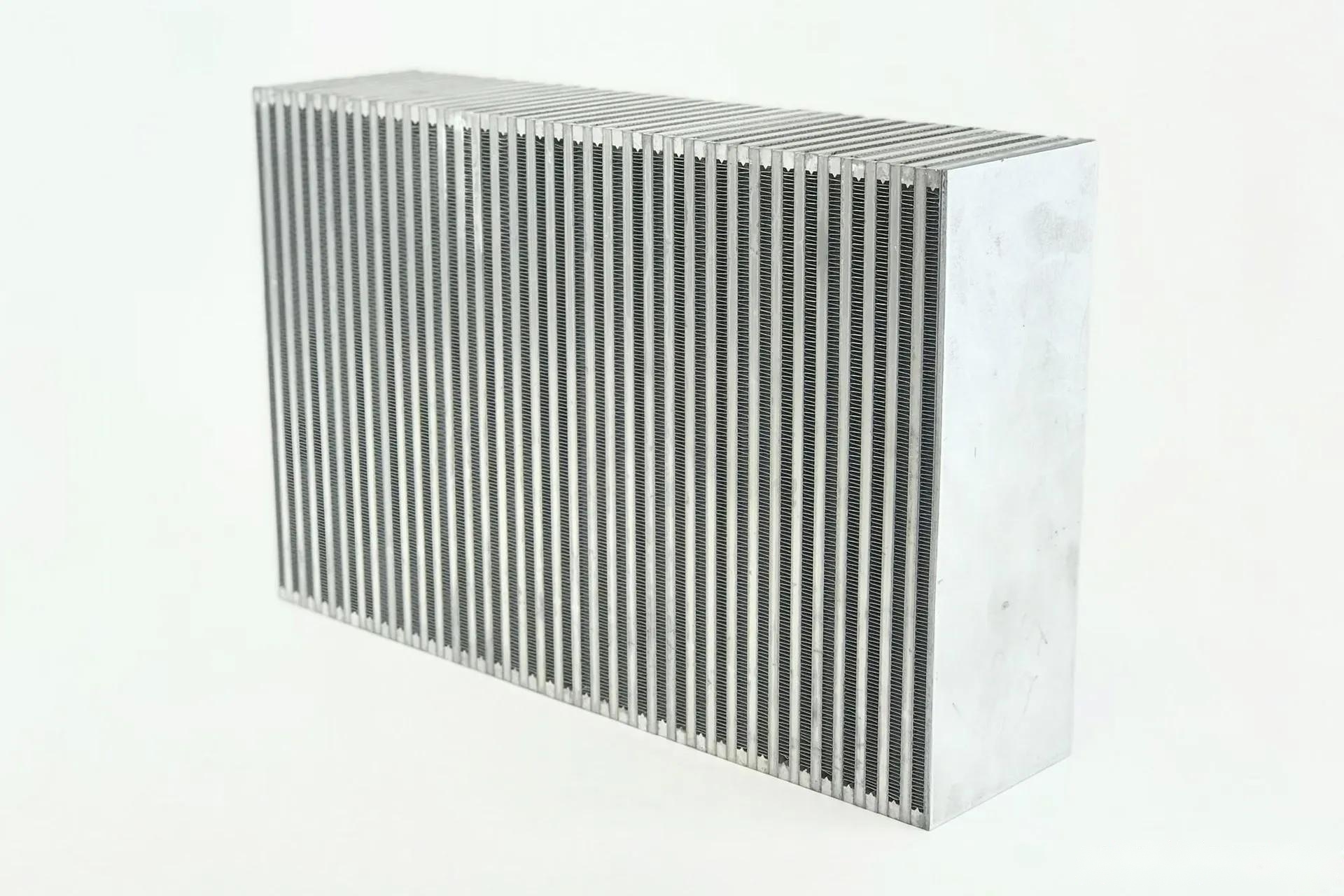

Name: CSF Cooling - Racing & High Performance Division HP Bar & Plate Intercooler Core 22Lx14Hx5.5W - Vertical Flow / R35 GT-R Fitment
Brand: CSF Radiators
SKU: csf8117W
Price: 489 USD
Availability: InStock

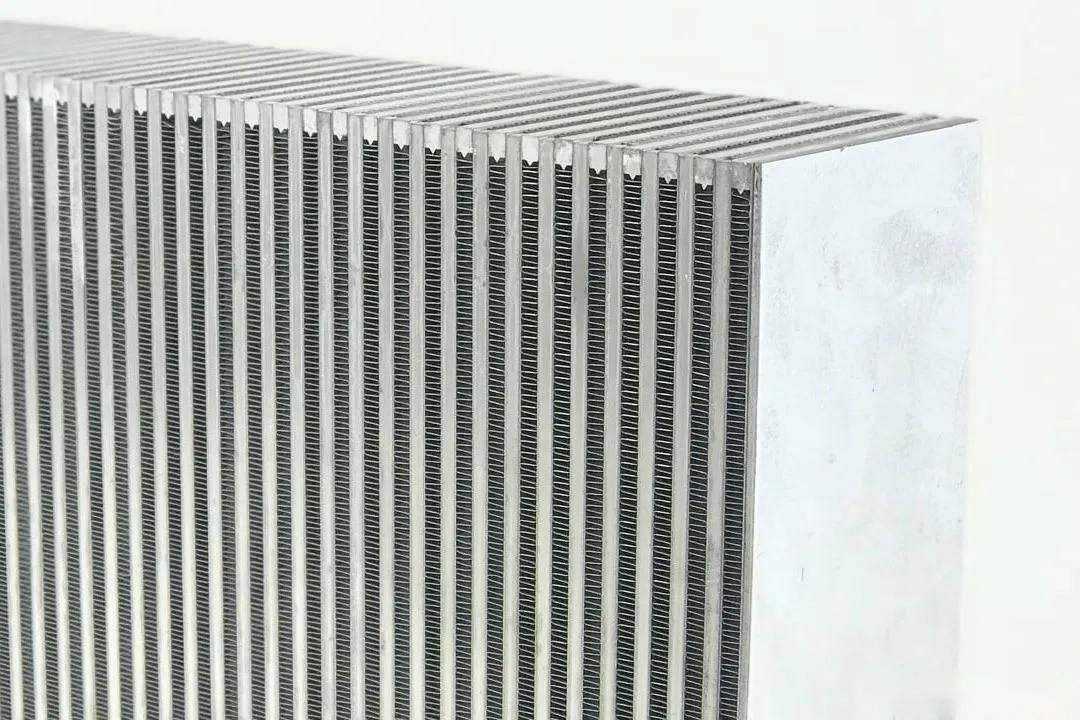

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 22" x 14" x 5.5" Vertical Flow (R35 GT-R Fitment) Core is rated for 2000+ WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Vertical Flow (R35 GT-R Fitment) Core is rated for 2000+ WHP and the perfect fit for your custom intercooler.

Heavy-Duty Bar & Plate Intercooler Cores
HP Rating: 2000
Vertical Flow (Nissan R35 GT-R Fitment)
Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding

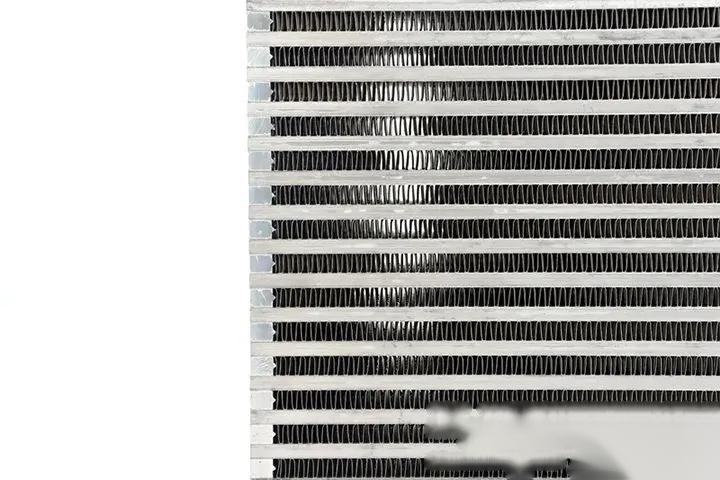

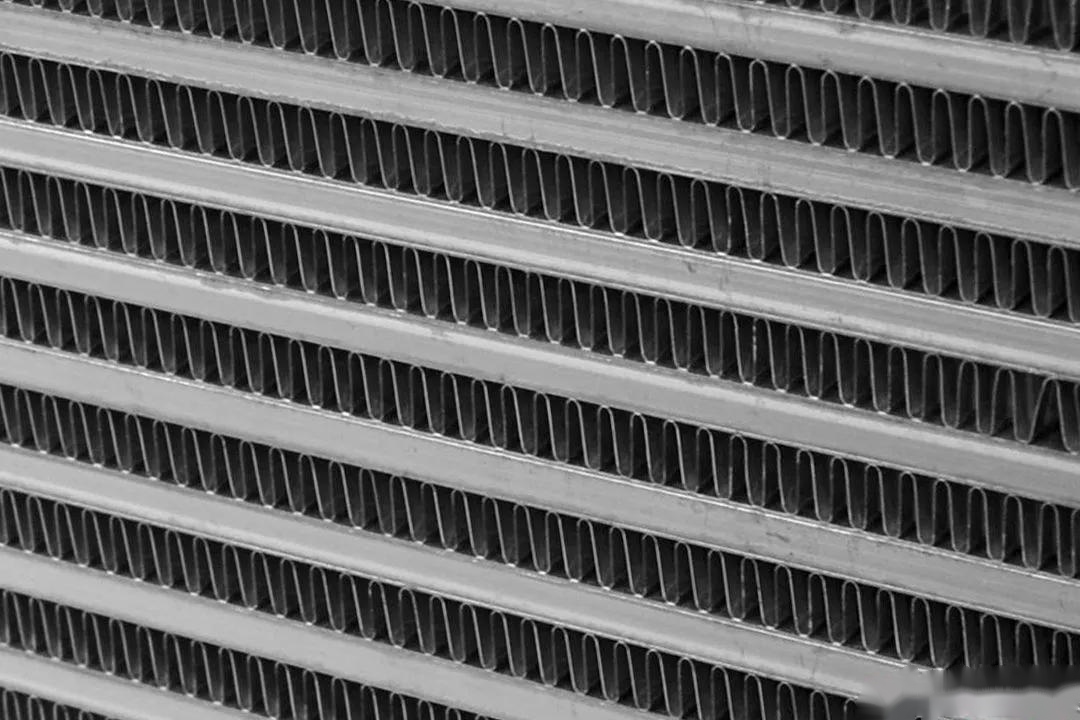

Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
Strict Quality Control and Quality Testing, Including Individual Pressure Testing
Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
Dimensions: 22"x14"x5.5" (560mm x 355mm x 140mm)

Core Material: Aluminum
Core Row Quantity: 35
Grade Type: Performance
HP Rating: 2000+ WHP
Inlet Quantity: 1
Installation Type: Universal Cooling Product
Intercooler Flow Direction: Vertical (R35 GT-R Fitment)
Intercooler Type: Air-to-Air
Length: 22 in.
Length: 560mm
Mounting Hardware Included: No
Outlet Quantity: 1
Prop 65 Yes/No: No
Tank Material: No Tanks Included
Thickness: 5.5 in.
Thickness: 140mm
Title: HP Bar & Plate Intercooler Core 22Lx14Hx5.5W - Vertical Flow / R35 GT-R Fitment
Type: Air-to-Air
Width: 14 in.
Width: 355mm
