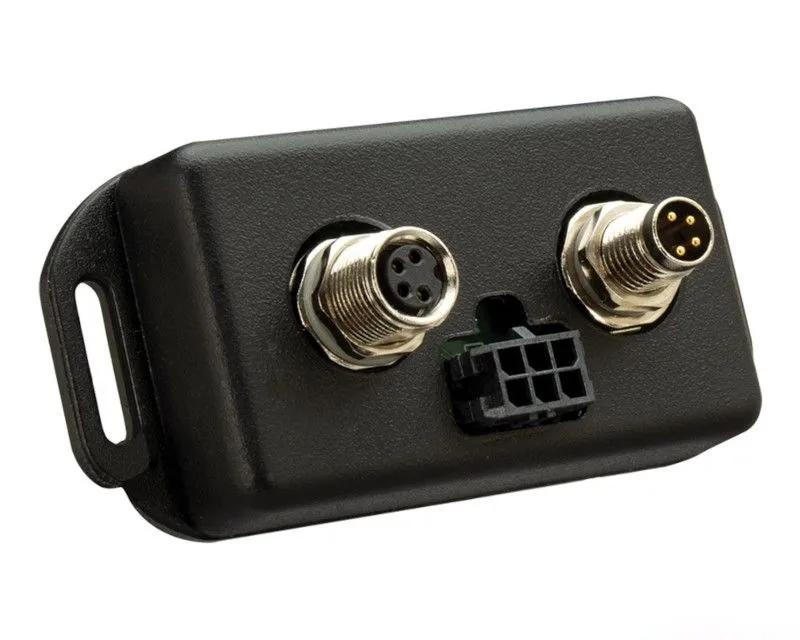

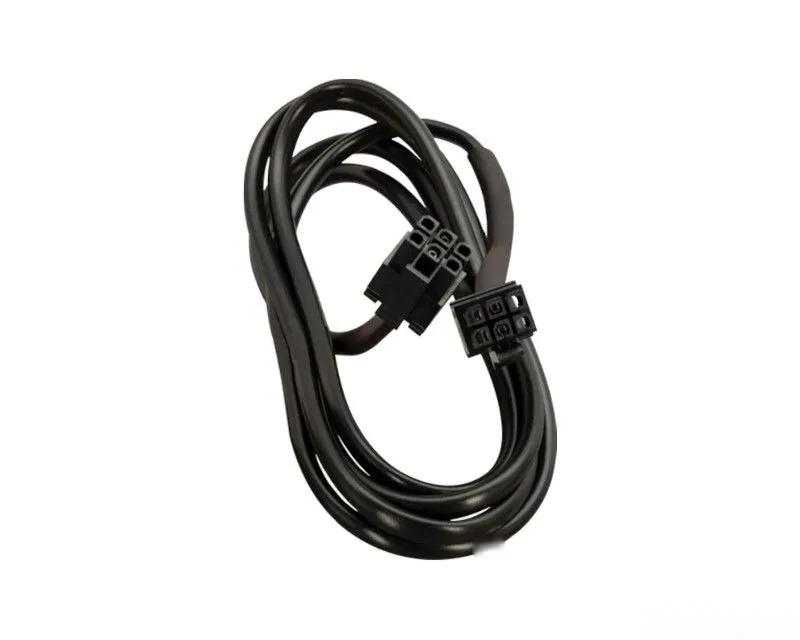

The BIM-01-2-HSN2 is designed to read the engine information from the Holley Sniper 2 EFI (Sniper 2 only). The BIM-01-2-HSN2 module is a direct plug in using the supplied harness for a simple connection to the Holley Sniper 2 EFI system.

The BIM-01-2-HSN2 will collect and output the following information to Dakota Digital Instrument Systems:

Always available:

• Tachometer
• Engine Coolant Temp
• Intake/ Manifold Temp.
• Air/ Fuel Ratio
• MAP
• Dakota Digital cannot guarantee the presence or accuracy of the available readings as this is a function of the ECM and matching functional sensors.

Compatible Dakota Digital instrument system: VHX, HDX, GRFX, RTX and VFD3 systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.

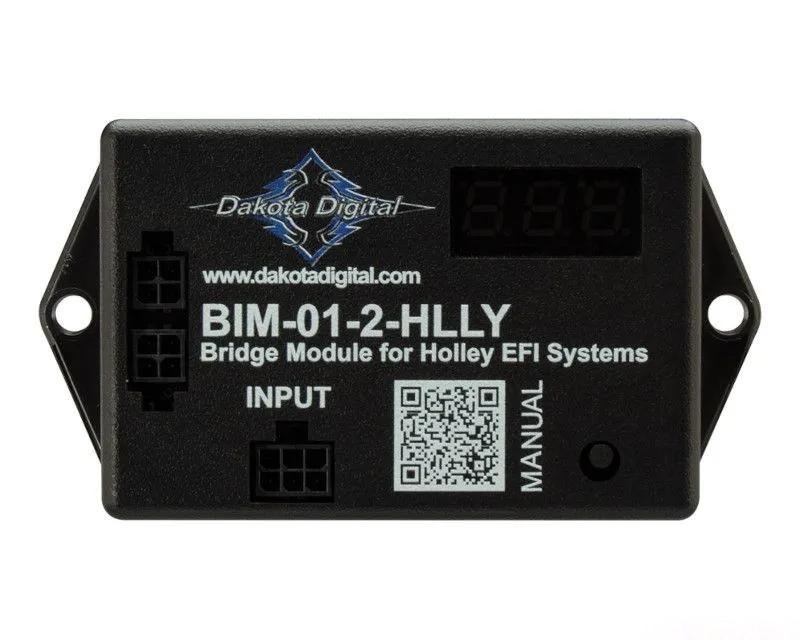

For the original Sniper EFI please order the BIM-01-2-HLLY.


Install Instruction:

• For Instructions CLICK HERE
