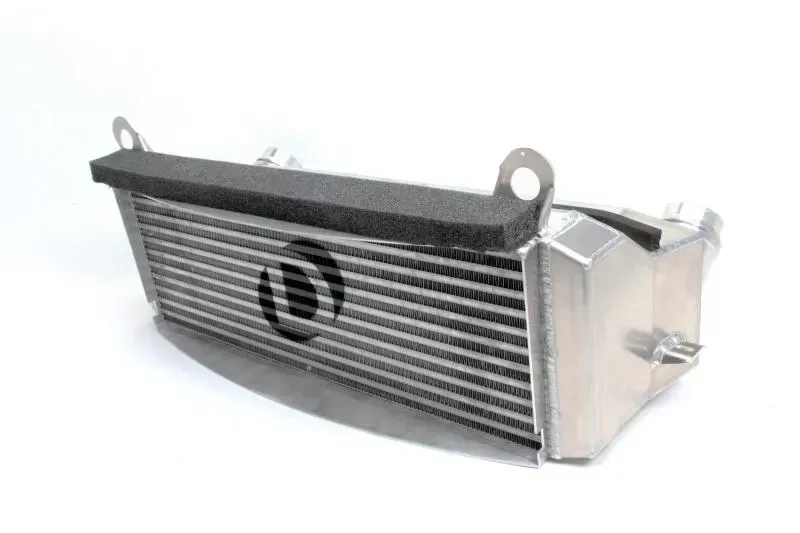

When you upgrade to a bigger turbo and crank up the boost for some serious power gains, heat can become a real challenge. Unfortunately, that extra heat can steal away some of the power you just worked hard to gain. Thankfully, a larger high-performance intercooler can step in to manage that heat, ensuring your power gains are well-protected. The Dinan dual core intercooler is a game changer, offering a whopping 278% increase in face area along with a significant boost in volume. This means it dramatically reduces pressure drop to just 0.8 psi, allowing for efficient heat exchange and more consistent output power.

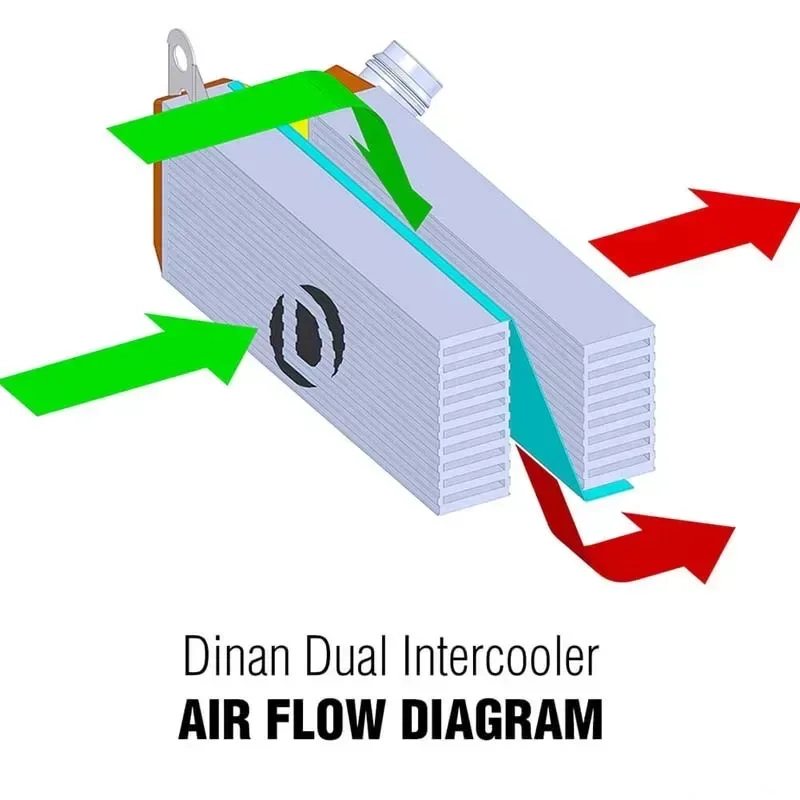

What sets Dinan apart is its unique dual core design, which features two separate cores working together seamlessly. This clever setup results in a 39% improvement in the temperature difference between charge air and ambient air (check out the diagrams below!). Plus, "cool down" times are greatly reduced, meaning your car can maintain full power even in stop-and-go traffic. Say goodbye to the worries of heat soak!

The system is designed to be a straightforward replacement for the stock unit, requiring only minor adjustments for a clean, factory-like installation. With the improved thermal efficiency of the Dinan dual core intercooler, you can also enjoy enhanced turbocharger reliability alongside your overall power boost.

• Max gains of 7 HP and 5 lb/ft of torque on a stock car.
• Face area 278% larger than the stock intercooler setup for maximum cooling efficiency to deter heat soak.
• Charge Air Pressure drop: 0.80 PSI (69% improvement over stock).
• Charge Air Temperature drop: 193°F (9% improvement over stock).
• Charge Air Temperature/Ambient Temperature Delta: 25°F @ 6250 RPM (39% improvement over stock).
• Color/Finish: Satin Silver.
• Core Depth (in): 2.75.
• Core Length (in): 7.95.
• Core Width (in): 22.8.
• Inlet Inside Diameter (in): 2.3.
• Inlet Length (in): 3.4.
• Inlet Outside Diameter (in): 2.7.
• Inlet Quantity: 1.
• Installation Time (hrs): 4.5.
• Material: Aluminum.
• Outlet Inside Diameter (in): 2.3.
• Outlet Length (in): 4.1.
• Outlet Outside Diameter (in): 2.7.
• Outlet Quantity: 1.
• Overall Height (in): 11.4.
• Overall Length (in): 11.7.
• Overall Width (in): 28.

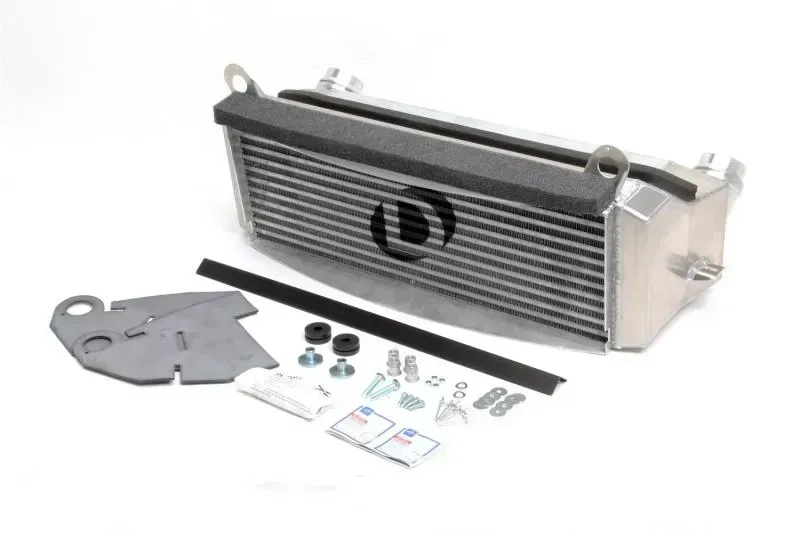

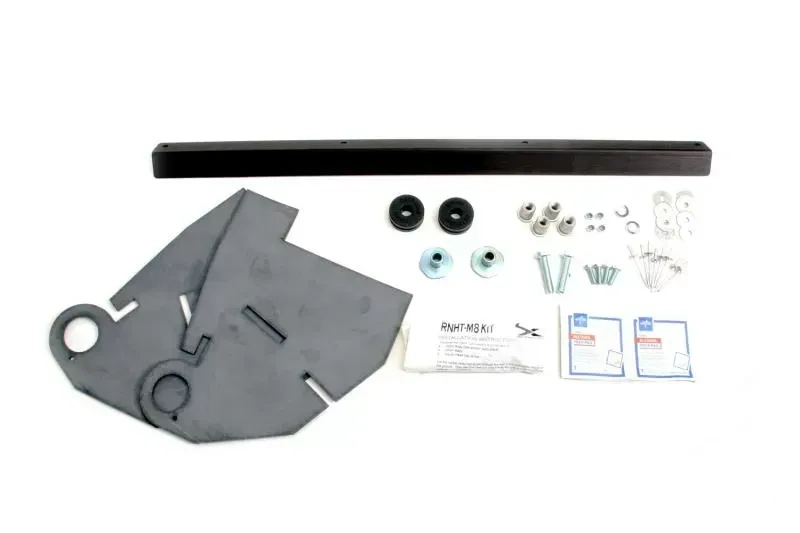

• Package Contents: Intercooler and installation hardware/instructions.
• Warranty: Factory Matching New Car Warranty (4YR/50k).

• BMW M2 F87 2016-2021.
