Subwoofers are a must have for any audio system. Some audio enthusiasts dont have alot of room for big subs, for example, in single cab trucks. Now we have a option for people craving great bass but dont have much space for it.

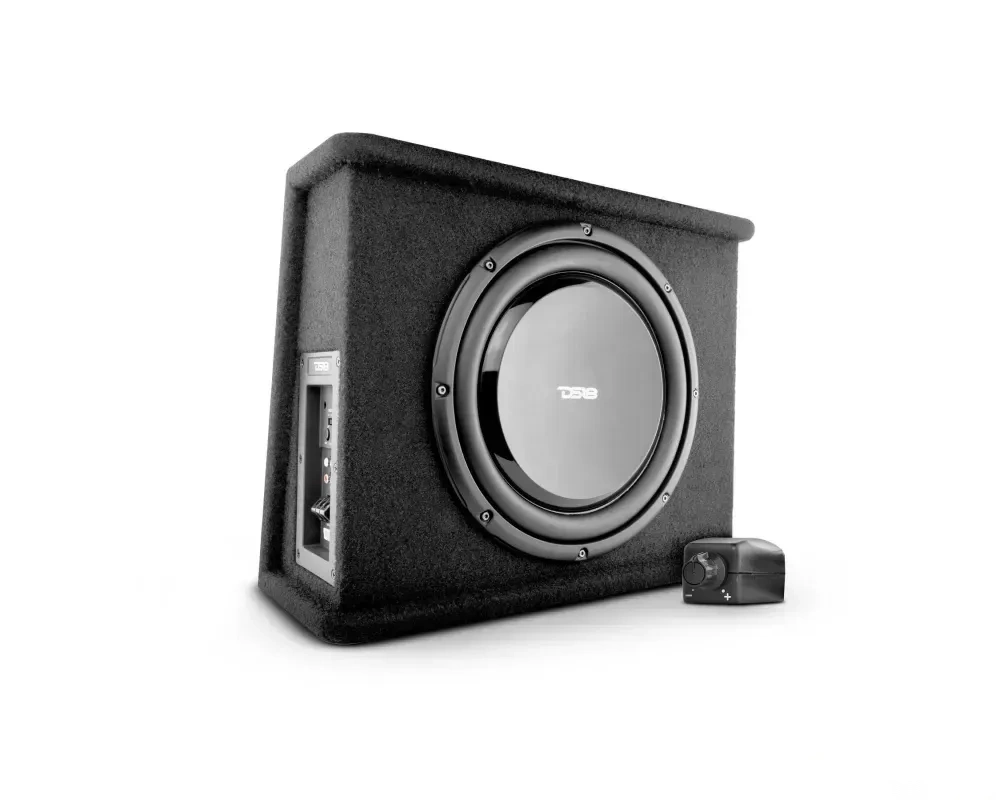

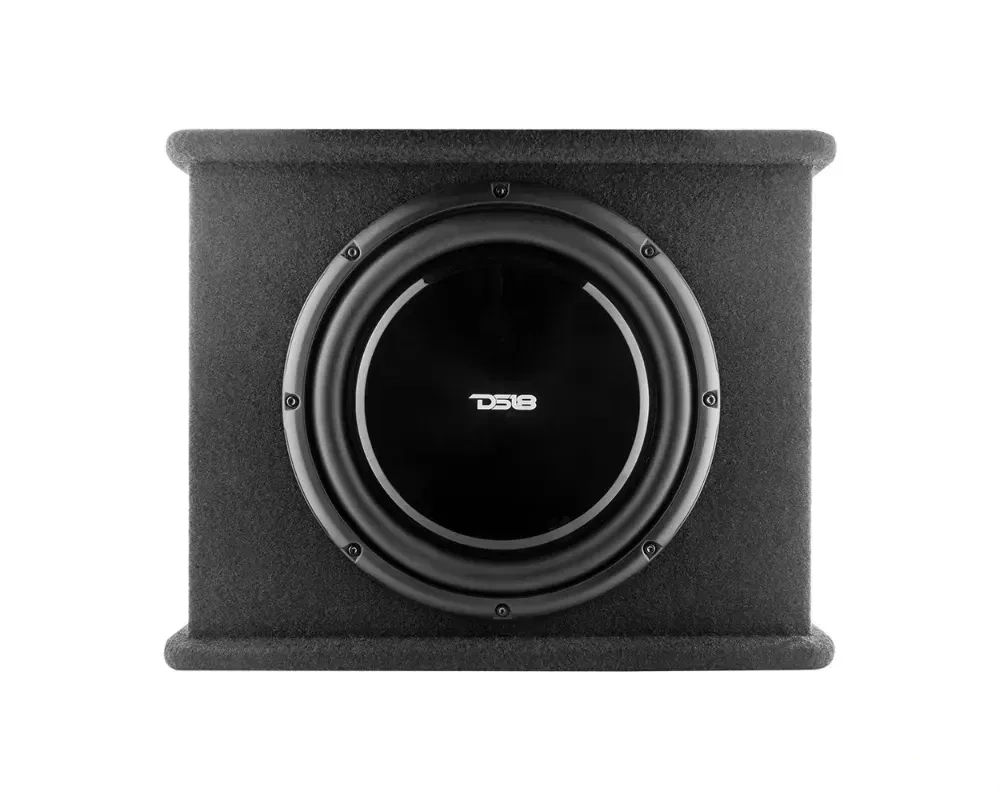

The SB10-A is a slim 10-inch subwoofer in a sealed box that is powered by a powerful, built-in 350w RMS amplifier that is sure to get the bass thumping hard in the minimal space that you have available in your vehicle.

Features:

• Strong slim 10 inch sub that is sure to bring pounding bass where there is not much space.
• Compact sealed box made of .6 inch MDF with included built in 350w RMS 700w Max high power amplifier.
• Easy to hook up and integrate with any system with the use of high level inputs or RCA jacks, whichever is easiest for you!

Technical Details

• Internal Volume: 12L / 0.42ft3
• Load Configuration: Parallel In
• Box Type: Sealed Box
• Box Material: 0.59" MDF
• Finish Material: Non-Woven fabric
• (-3bB) Dropping Point: 48Hz

MEASUREMENTS / MEDIDAS

• Height: 13.6" / 345.4mm
• Width: 16.7" / 424mm
• Depth 1: 4.82" / 122.6mm
• Depth 2: 7.9" / 201mm

SPECIFICATIONS

• Speaker Size: 10" / 261mm
• Total Impedance: 2 Ohms
• RMS Power Handling: 350W
• MAX Power Handling: 700W
• Sensitivity (1w/1m): 83dB
• Frequency Response: 38Hz-250Hz

MOTOR

• Voice Coil Diameter: 1.5" / 38.6mm
• Voice Coil Former Material: Aluminum
• Winding Material: EISV
• Cone Material: IPP
• Surround Material: Rubber
• Basket Material: SPCC
• Magnet Material: Ferrite
• Magnet Weight: 40 Oz

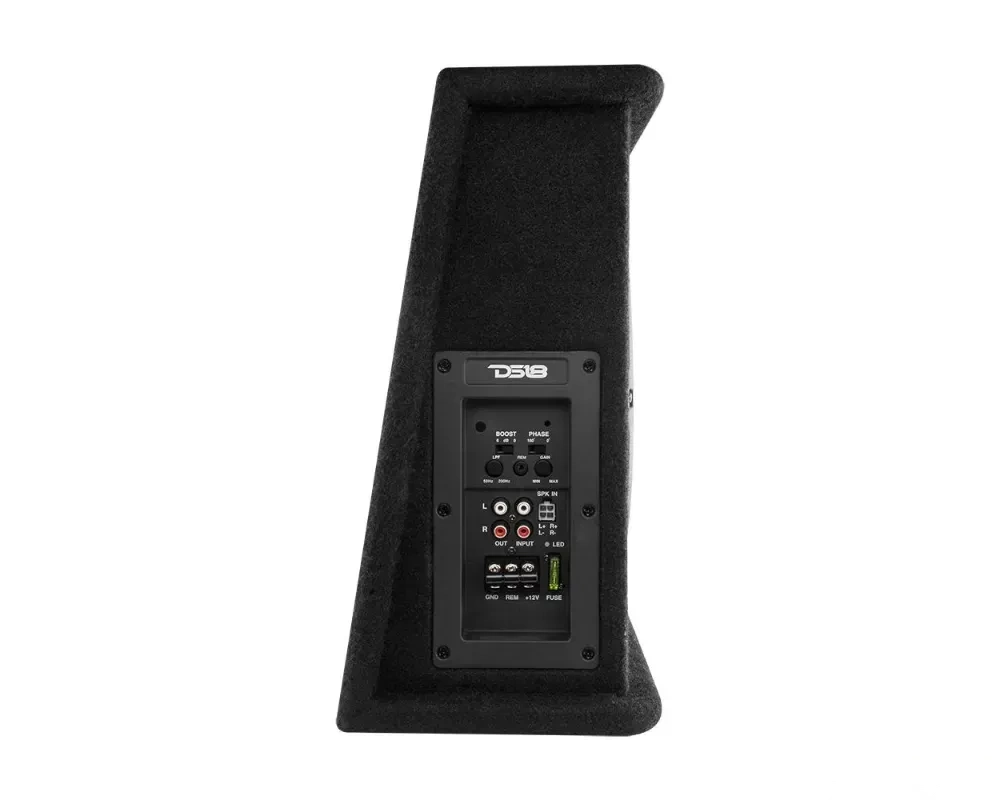

AMPLIFIER

• Amplifier Class: Digital
• Amplifier Type: Monoblock Subwoofer
• Number of Channels: 1 CH
• Minimum Impedance: 2 Ohms
• Signal to Noise Ratio: 75 dB
• Efficiency @ 4 Ohms: 75%
• Total Harmonic Distortion (T.H.D): 0.30%
• Low-Level Input Range: 0.1-0.6 V
• High-Level Input Range: Yes
• Selectable X-Over RMS a 2 OHMS: LPF Fixed
• X-Over Filter Range: 50 - 200 Hz
• Bass Boost Range: 0-6 dB
• Bass Boost Frequency: 50 Hz
• Phase Selector: 0-180°
• Led Indicator: Power-Protection
• Power Input Terminal Size: 8 GA
• Fuse Size: 30 A

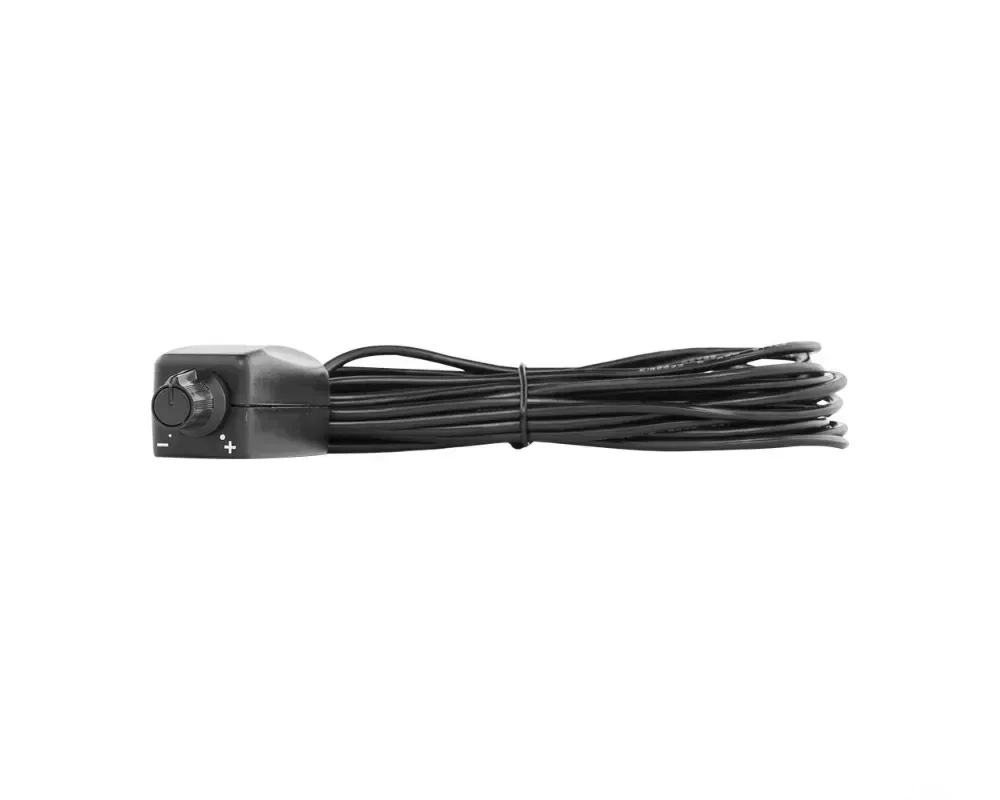

• Remote Level Control: Yes
• Thermal Protection: Yes (75°C / 167°F)
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes / Si (<8v,>16v)

Install Instructions:

• For Instructions CLICK HERE!
