Subwoofers are a must-have for any audio system. Some audio enthusiasts don't have a lot of room for big subs, for example, in single cab trucks. Now we have a option for people craving great bass but don't have much space for it.

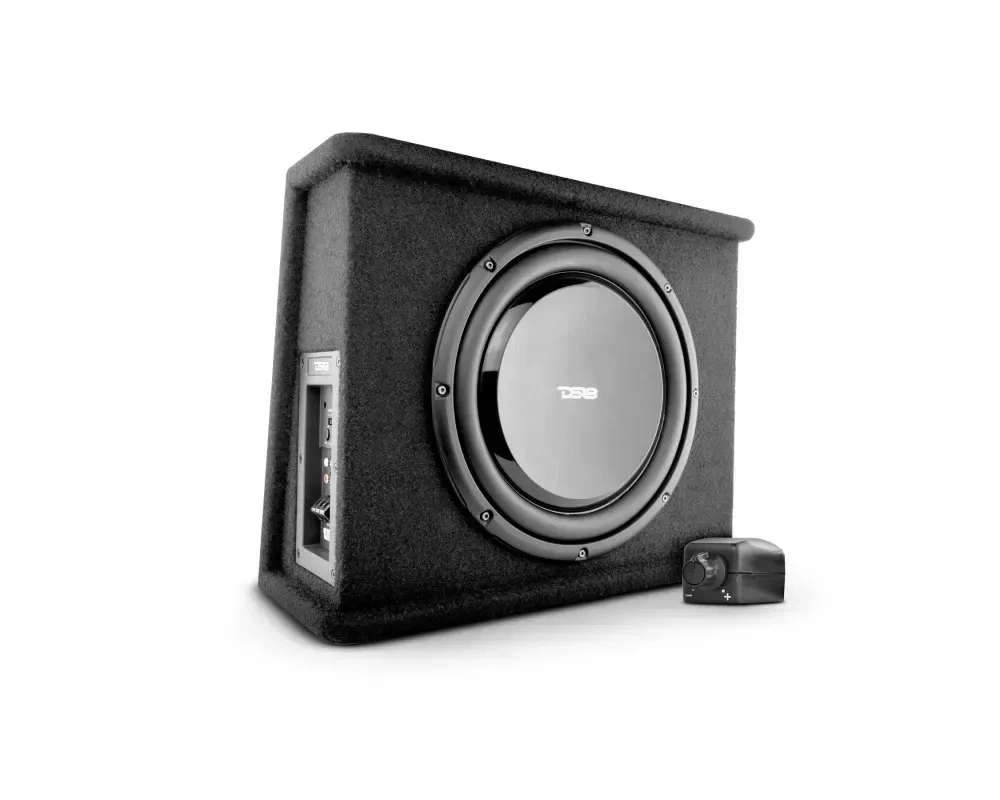

The SB12-A is a slim 12 inch subwoofer in a sealed box that is powered by a powerful, built-in 350w RMS amplifier that is sure to get the bass thumping hard in the minimal space that you have available available in your vehicle.

Features:

• Strong slim 12 inch sub that is sure to bring pounding bass where there is not much space.
• Compact sealed box made of .6 inch MDF with included built in 350w RMS 700w max high power amplifier.
• Easy to hook up and integrate with any system with the use of high level inputs or RCA jacks, whichever is easiest for you!

Technical Details

• Internal Volume: 16L / 0.56ft3
• Load Configuration: Parallel In
• Box Type: Sealed Box
• Box Material: 0.59" MDF
• Finish Material: Non-Woven fabric
• (-3dB) Dropping Point: 45Hz

MEASUREMENT

• Height: 14.96" / 380mm
• Width: 19.3" / 490mm
• Depth 1: 4.92" / 125mm
• Depth 2: 7.4" / 188mm

SPECIFICATIONS

• Speaker Size: 12" / 312mm
• Total Impedance: 2 Ohms
• RMS Power Handling: 350W
• MAX Power Handling: 700W
• Sensitivity (1w/1m): 87dB
• Frequency Response: 30-250Hz

MOTOR

• Voice Coil Diameter: 1.75" / 44.43mm
• Voice Coil Former Material: Aluminum
• Winding Material: EISV
• Cone Material: IPP
• Surround Material: Rubber
• Basket Material: SPCC
• Magnet Material: Ferrite
• Magnet Weight: 50 Oz

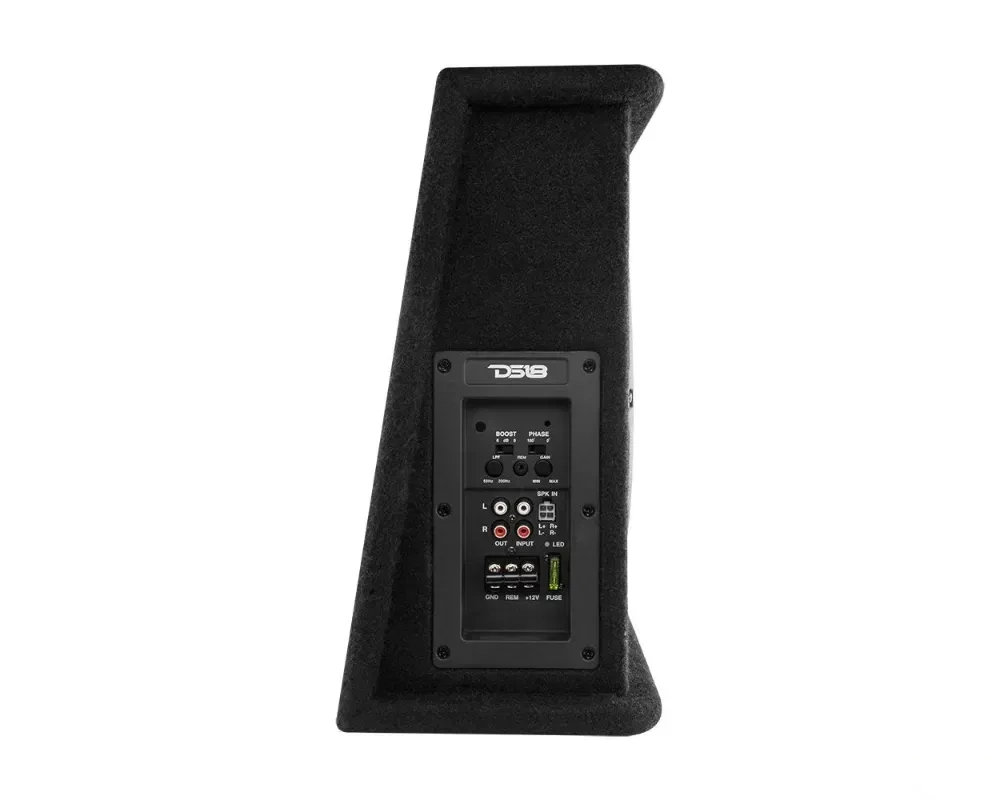

AMPLIFIER

• Amplifier Class: Digital
• Amplifier Type: Monoblock Subwoofer
• Number of Channels: 1 CH
• Minimum Impedance: 2 Ohms
• Signal to Noise Ratio: 75 dB
• Efficiency @ 4 Ohms: 75%
• Total Harmonic Distortion (T.H.D): 0.30%
• Low-Level Input Range: 0.1-0.6 V
• High-Level Input Range: Yes
• Selectable X-Over: LPF Fixed
• X-Over Filter Range: 51 - 200 Hz
• Bass Boost Range: 0-6 dB
• Bass Boost Frequency: 50Hz
• Phase Selector: 0-180°
• Led Indicator: Power-Protection
• Power Input Terminal Size: 8 GA
• Fuse Size: 30 A

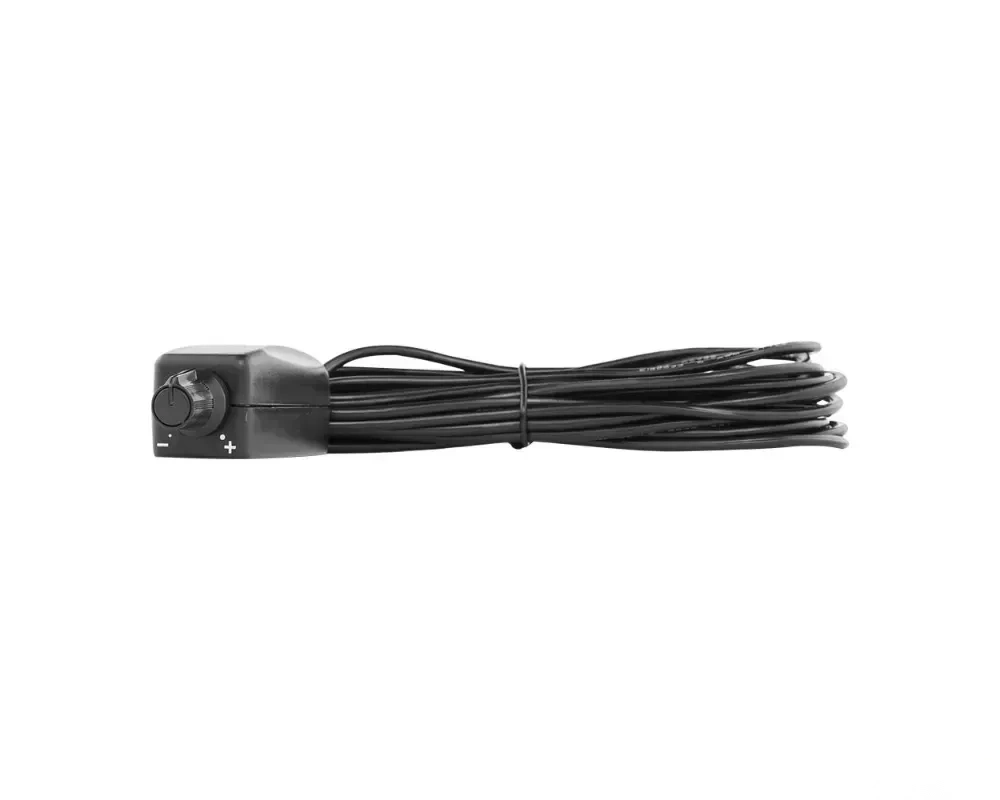

• Remote Level Control: Yes
• Thermal Protection: Yes (75°C / 167°F)
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes (<8v,>16v)

Install Instructions:

• For Instructions CLICK HERE!
