Designed to provide thumping power that shakes everyone’s mirrors, the ZXI10.2D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 2.5-inch voice coil that’s made to withstand high amounts of power with unparalleled efficiency while producing thunderous bass that’s free from distortion. Don’t get it twisted, this sub is versatile enough to play higher frequencies under 900Hz down to 20Hz with incredible clarity and accuracy!

Powerful Bass!

The majority of subs that produce this much bass usually have enormous power requirements to get to maximum XMAX and deliver crazy loud bass. The ZXI10.2D sets itself apart since it has an extremely efficient coil that handles large power with a higher dB rating than most subs at 86 dB. This sub is also conservatively rated at 800W RMS Power Handling and 1600W MAX Power Handling, making it capable of handling anything you throw at it!

Features:

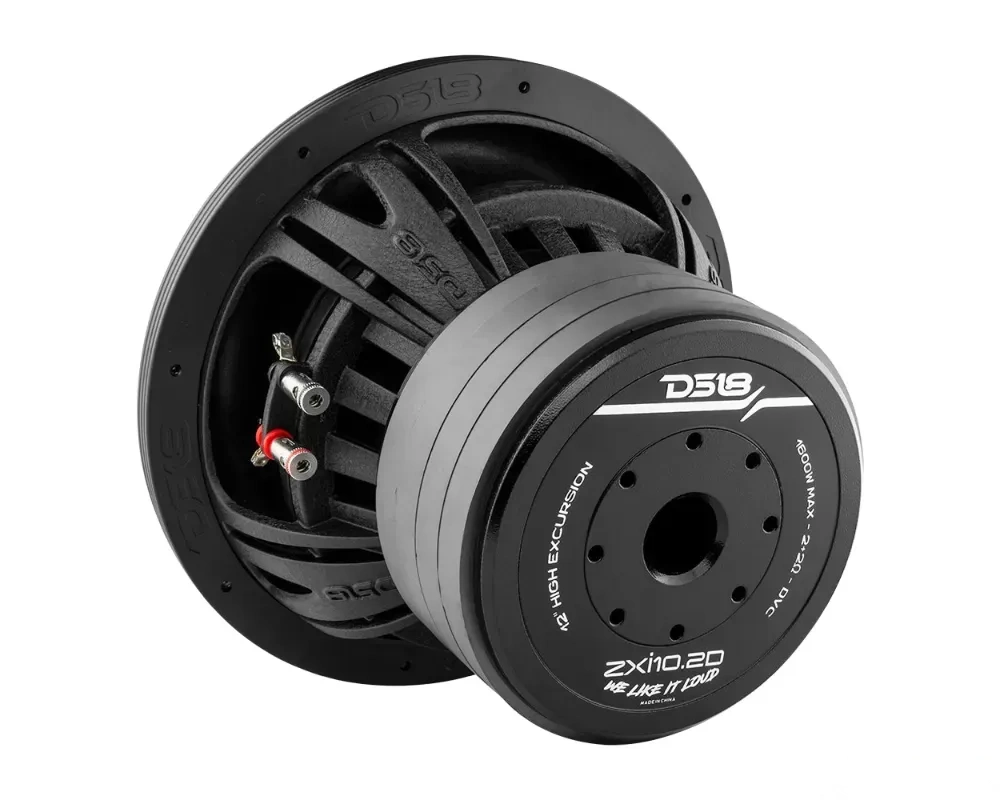

• Long ferrite motor structure allows for maximum excursion and former clearance with quad stacked magnets.
• High Excursion Surround to help produce maximum a 28.5mm (one-way) XMAX without damage to the cone and surround.
• Conservatively rated at 800W RMS Power Handling and 1600W MAX Power Handling so you can get the high-powered thunderous bass you crave.
• 2.5-inch voice coil to absorb and produce the highest heat to power ratio all while pumping out thumping head turning bass.
• Low FS of 29Hz so the sub can play ultra-low frequencies all while still retaining the versatility of a traditional subwoofer.
• Ultra-low frequency response of 20Hz-900Hz to ensure great lows and you will be able to have hard hitting bass that plays with authority.
• Great for: Car Audio, Pro Audio, Home Studio, Hi-Fi Installation, Surround Sound, DIY Projects

Technical Details

• Nominal Diameter: 10" / 254mm
• Nominal Impedance: 2 + 2 Ohms
• RMS Power Handling: 800w
• MAX Power Handling: 1600w
• Sensitivity (1w/1m): 86dB
• Frequency Response: 20Hz-900Hz
• Recommended Lo Pass Crossover: 90Hz

MOTOR

• Voice Coil Diameter: 2.5" / 63.5mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Dust Cap Material: PPI
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Sandblasted Black
• Magnet Material: Ferrite
• Magnet Weight: 196 Oz (4 x 49 oz)
• Displacement Volume: 2.23L / 0.078ft3

MEASUREMENT

• Overall Diameter: 10.96" / 278.5mm
• Overall Depth: 8.34" / 212mm
• Front Mount Baffle Cutout: 9.36" / 237.7mm
• Mounting Depth: 6.91" / 175.5mm
• Motor Diameter: 6.69" / 170mm
