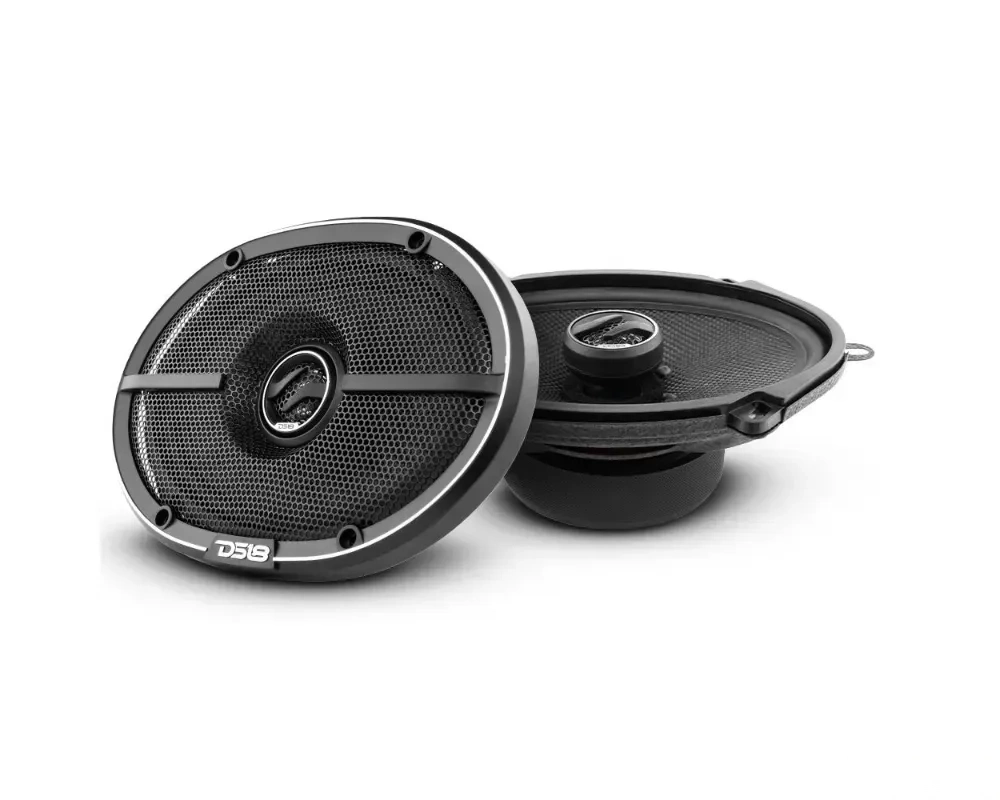

DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2 - way 5x7" takes 70w RMS and 210w Max watts and with a 91dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!

Features:

• Highly durable and extremely loud design built for the average to extreme audio systems.
• Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
• 2 - way design will bring a full range of frequencies to your ears and with great sound quality.

Technical Details

• Nominal Diameter: 5x7”
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 70 Watts
• MAX Power Handling: 210 Watts
• Sensitivity (1w/1m): 91dB
• Frequency Response: 40Hz-20KHz
• Recommended HI Pass Crossover: 60Hz
• Speaker Type: 2-Way

MOTOR

• Voice Coil Diameter: 1” / 25.5mm
• Voice Coil Former Material: KSV
• Winding Material: EISV
• Cone Material: Glass fiber
• Surround Material: Rubber
• Basket Material: Steel
• Magnet Material: Barium Ferrite
• Magnet Weight: 14.46 oz / 410g

TWEETER

• Nominal Diameter: 1" / 25.4mm
• Voice Coil Diameter: 0.8"/ ø20.4mm
• Voice Coil Former Material: KSV
• Winding Material: EISVM
• Diaphragm Material: PEI
• Magnet Material: Neodymium
• Magnet Weight: 0.3 oz / 8.5g

THIELE & SMALL PARAMETERS

• Equivalent Volume: 8.6L
• Excursion (one way): 2.7mm
• Free Air Resonance: 68Hz
• Mechanical Factor: 7.04
• Electrical Factor: 1.28
• Total Factor: 1.08
• Mechanical Mass: 16.1g
• Mechanical Compliance: 258.7mm/N
• BL Factor: 4.6
• Voice Coil Inductance: 228mH
• Cone Area: 153.5cm2
• DC Resistance: 3.5 Ohm
• Mechanical Mass w/o air: 14g

MEASUREMENTS

• Overall Diameter: 5.55x7.60” / 141x193mm
• Overall Depth: 3.07" / 78mm
• Front Mount Baffle Cutout: 4.92x7.07”/ 125x179.5mm
• Mounting Depth: 2.22” / 56.5mm
• Motor Diameter: 3.70” / 94mm

Install Instructions:

• For Instructions CLICK HERE!
