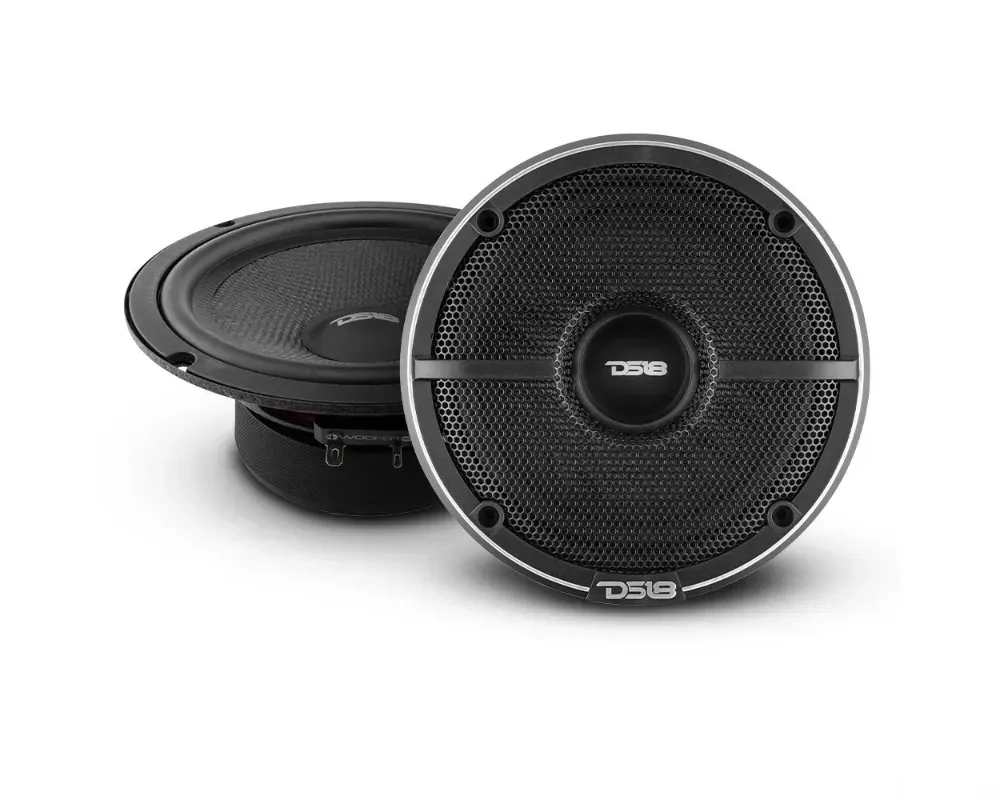

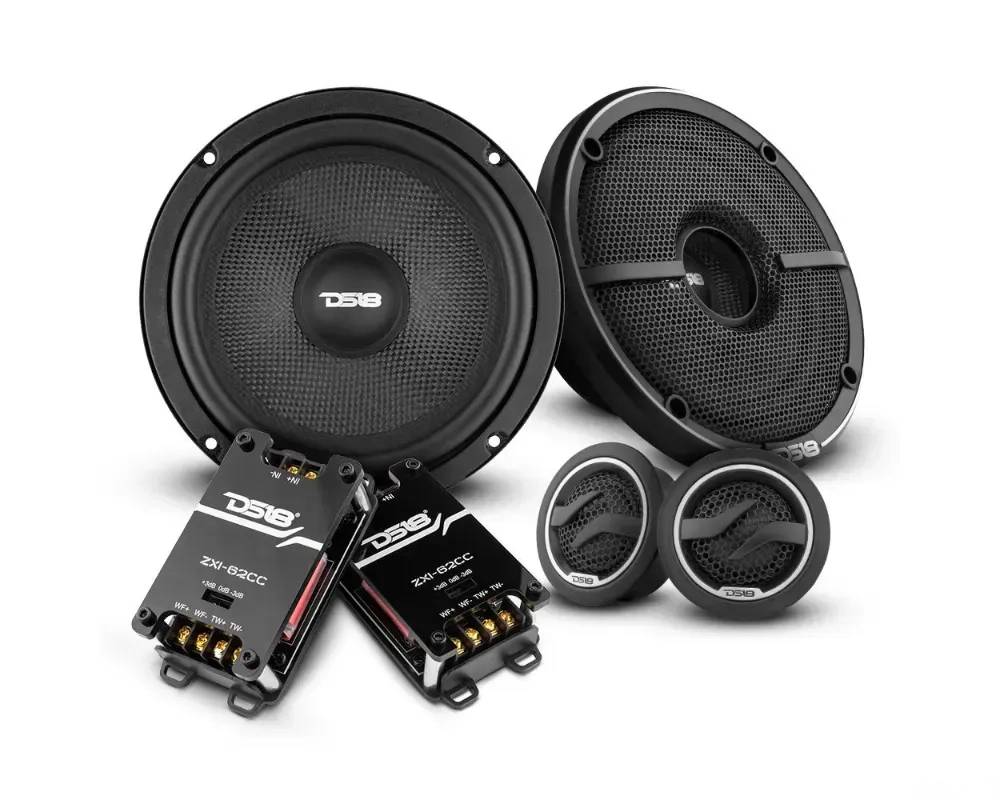

DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This component set includes a one-way 6.5" that takes 80w RMS and 240 Max watts. It has a 88 dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. Also included is a 30w RMS tweeter that can either be mounted on the grill assembly, or in another location of your choosing. The included DS18 passive crossover will get your frequency just right for the best sound available. These speakers are an amazing choice for your average every day to extreme audiophile!

Features:

• Highly durable and extremely loud design built for the average to extreme audio systems.
• Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
• Component design will bring a full range of frequencies to your ears and with great sound quality.

Technical Details

• Nominal Diameter: 6.5” / 165mm
• Nominal Impedance: 4 Ohms
• RMS Power Handing: 80W
• MAX Power Handing: 240W
• Sensitivity (1w/1m): 88dB
• Frequency Response: 40Hz - 20KHz
• Recommended HI Pass Crossover: 60Hz
• Speaker Type: 2-Way

Woofer Specifications

• Voice Coil Diameter: 1” / 25.5mm
• Voice Coil Former Material: KSV
• Winding Material: EISV
• Cone Material: Glass fiber
• Surround Material: Rubber
• Basket Material: Steel
• Magnet Material: Barium Ferrite
• Magnet Weight: 14.4 oz / 410g
• Grill Included: Yes
• Pair: Yes

Tweeter Specifications

• Nominal Diameter: 1.25" (31.7mm)
• Voice Coil Diameter: 1"(25.5mm)
• Voice Coil Former Material: ASV
• Winding Material: EISVM
• Diaphragm Material: SILK
• Magnet Material: Neodymium
• Magnet Weight: 0.46 oz / 13g
• Pair: Yes

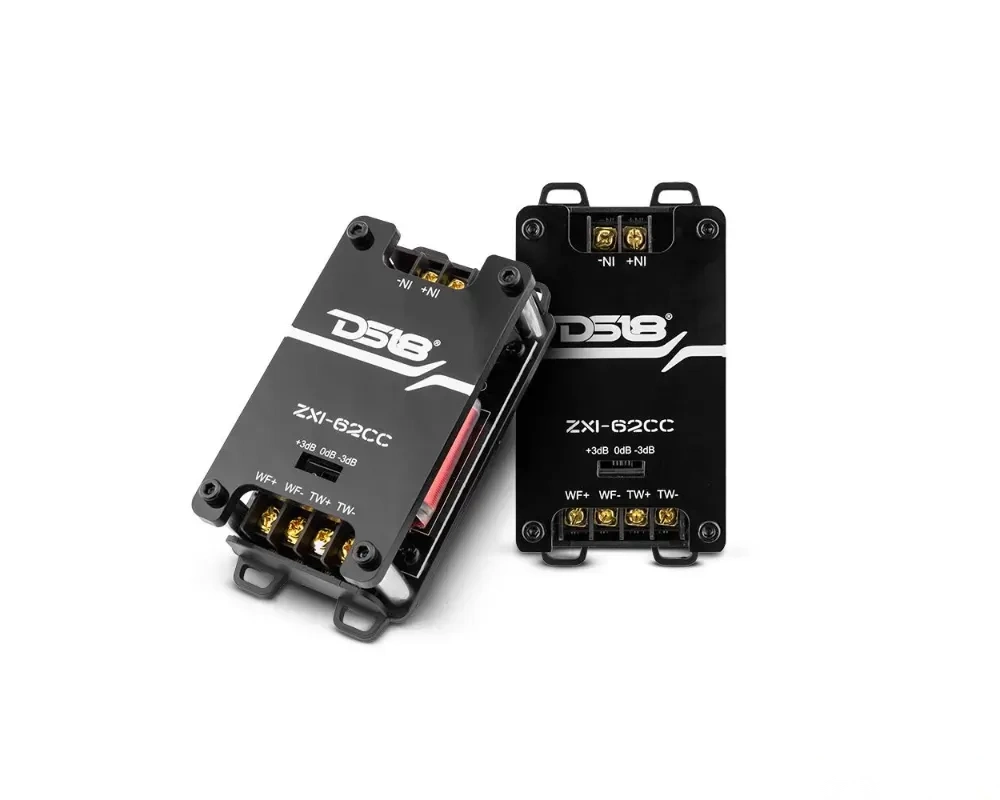

Crossover Specifications & Features

• Passive Crossover Ways: 2 Ways
• Frequency Crossover point: 3.5Khz
• Cut-Off Slope: 12 dB/Oct
• Tweeter Attenuation: (+/- 3dB)
• Capacitor Type: NP
• Coil Type: KSV
• Terminal Type: Screw-On
• Housing Material: ABS / Acrylic
• Adjustments: Tw Attenuation
• Extra Features: Pt Tw protection
• Pair: Yes

Thiele & Small Parameters

• Equivalent Volume: 10.36L
• Excursion (one way): 2.7mm
• Free Air Resonance: 64Hz
• Mechanical Factor: 9.5
• Electrical Factor: 0.85
• Total Factor: 0.78
