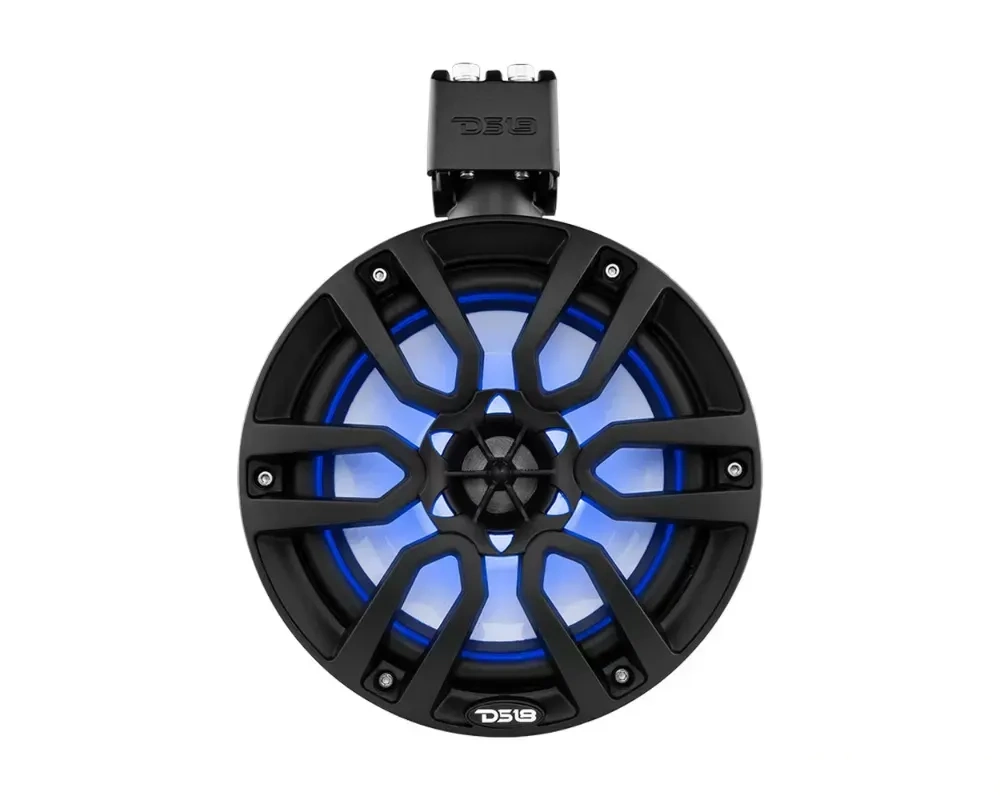

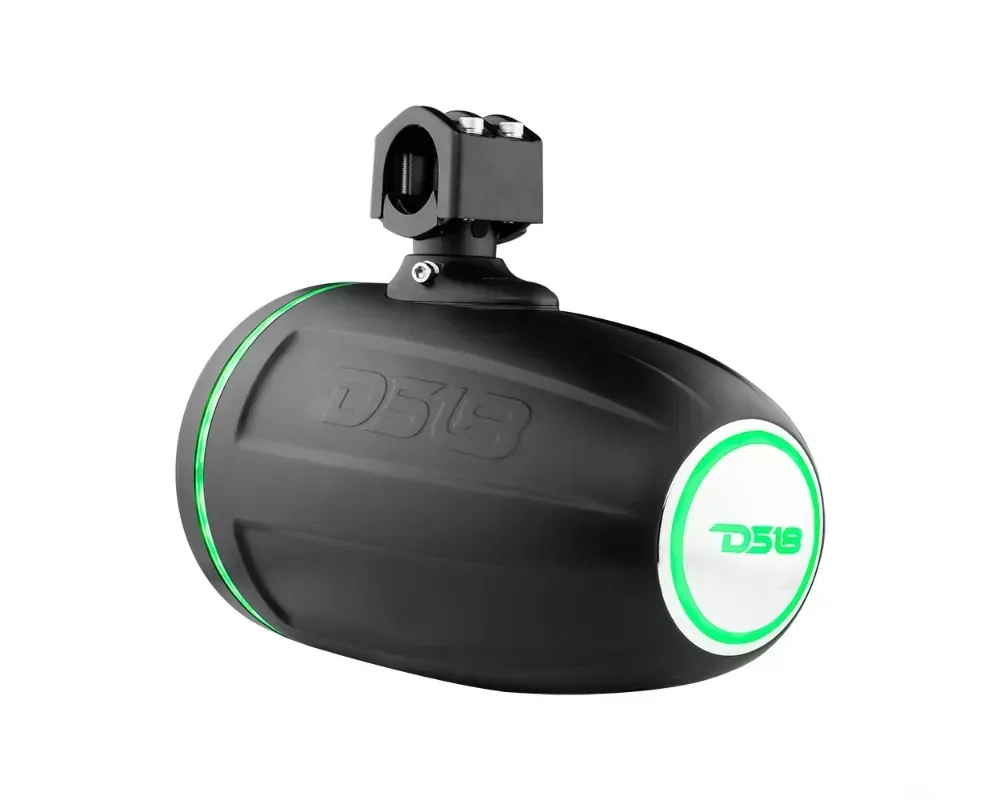

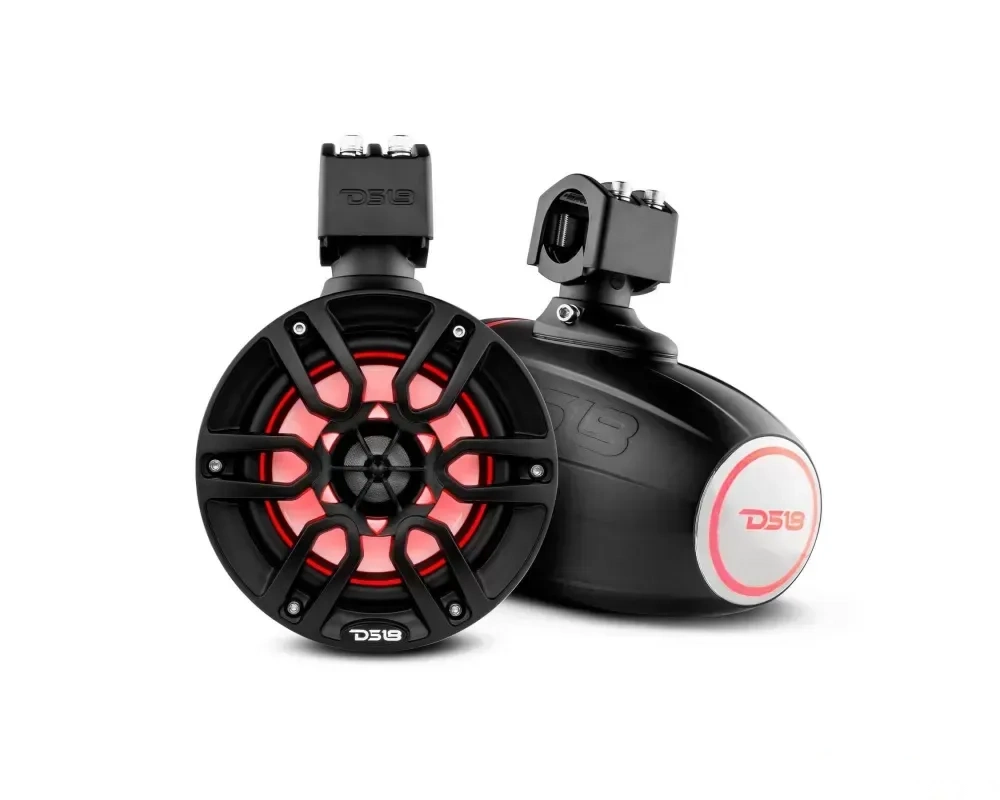

The newly redesigned NXL-X6TP tower speakers are louder and stronger than ever! The pod contains the same speaker and driver combo that everyone loves from the previous generation but now the clamping system has been reinforced for stronger grip and protection all around. Also to improve loudness and sound quality. RGB lighting is also included so you can match colors to your mood or color scheme.

Features:

• Very loud two way waterproof 6.5 inch speaker for clear loud sound in the elements.
• Redesigned clamping system and support for even more protection against vibration and off-road use.
• Integrated RGB system that shines any color you want so you can perfectly match your theme and with the use of out LED BTC can control many more illumination options from your phone.

Technical Details

• Nominal Diameter: 6.5”
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 100 w
• MAX Power Handling: 300 w
• Sensitivity (1w/1m: 91 dB
• Frequency Response: 65 Hz - 23 kHz
• Recommended Hi-Pass Crossover: 80 Hz

Body / Features

• Enclosure Material: Injection PC+ABS (BK & RD), Injection ASA (WH)
• Marine Grade Type: IP65 + UV Stable
• RGB LED: Integrated LED-RGB Speaker Lighting
• Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker
• Grill Type: ASA (Injection Grill)
• Clamps: Die-Cast adjustable (1" ~ 2")
• 360 Degree Rotation Mounting
• Buried Wire or Open Wire Mounting Optional, Included NBR Pad and Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
• Front/Rear Logo: Can be Rotated for Correct Angle Display
• Finish: Matte Black/Gloss White/Gloss Red

Woofer Specifications

• Voice Coil Diameter: 1.2"
• Cone Material: Waterproof Injection Polypropylene
• Surround Material: Butyl
• Basket Material: PC Injection Molded Composite
• Magnet Material: Ferrite + Reverse Neodymium
• Magnet Grade: Y35+N40H

Tweeter Specifications

• Voice Coil Diameter: 1"
• Type: Dome PEI Surround
• Diaphragm Material: Titanium
• Magnet Material: Neodymium
• Crossover: 6 dB/Oct

Thiele & Small Parameters

• Equivilant Volume: Vas 8.5L
• Excursion (one way): Xmax 4mm
• Free Air Resonance: Fs 65Hz
• Total Factor: Qts 0.622

Speaker Measurements

• Overall Diameter: 6.93" / 176.1mm
• Overall Depth: 11.37" / 288.8mm
• Overall Height: 10.7" / 271.7mm

Install Instructions:

• For Instructions CLICK HERE!
