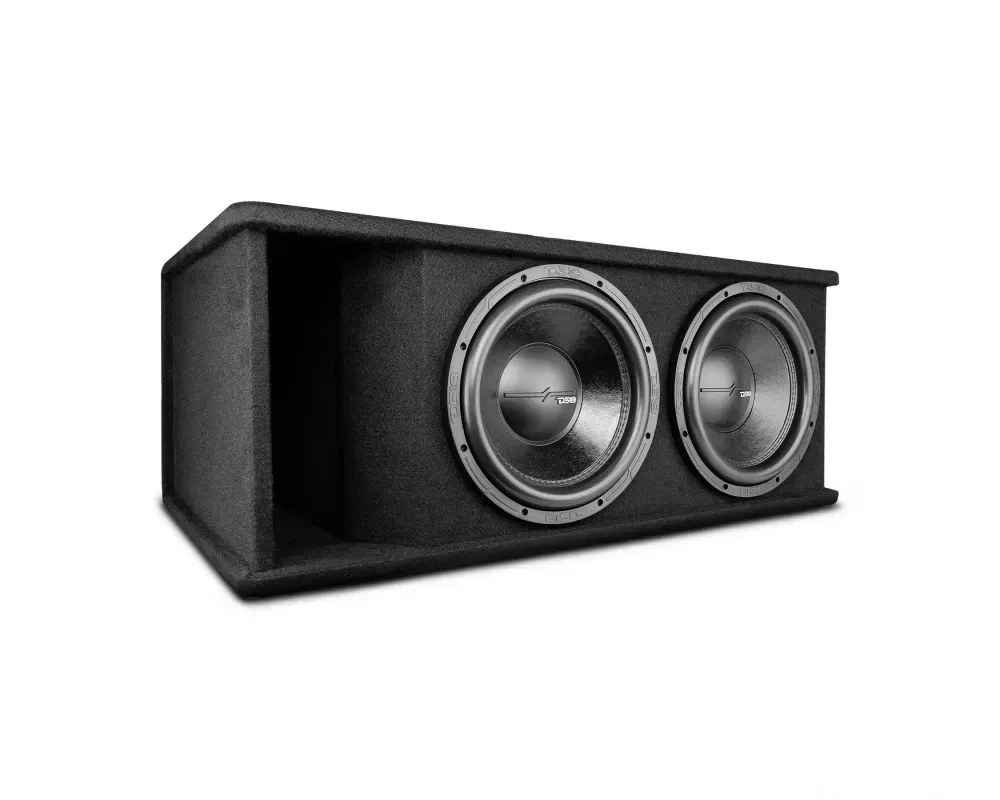

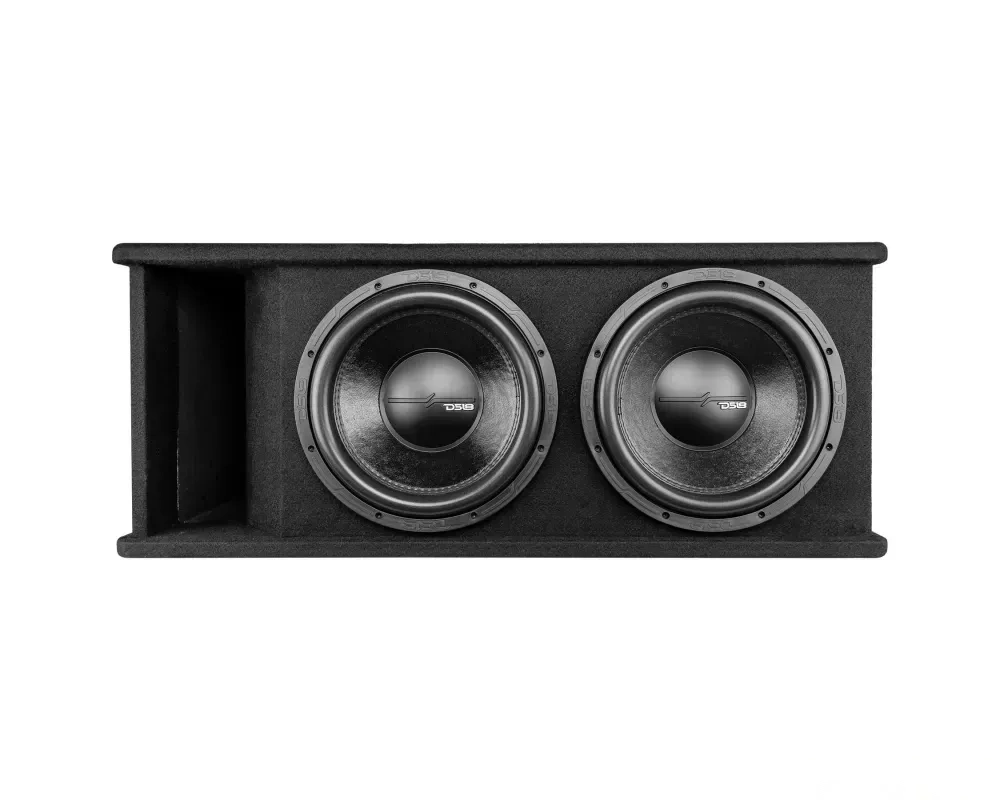

The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!

The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.

This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1500W RMS and 3000W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.

Features:

• The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass
• Dual 12 inch subwoofers with the cone area to blast great sounding bass more efficiently Subwoofers
• Two 12 inch DVC subwoofer
• Max Power Handling: 1500 watts each
• RMS Power Handling: 750 watts each
• Frequency Response: 25hz-200hz
• Voice Coil Diameter: 2.5"
• Voice Coil Material: Copper
• Impedance: Dual Voice Coil 4-Ohm
• Sensitivity: 82 DB
• Magnet Weight: 100 Oz
• Magnet Material: Ferrite
• Mounting Depth: 6.6"
• Xmax: 25mm one way
• Box Material: 3/4 inch MDF
• Box Covering: Carpet with DS18 logo
• Box Tuning: 29hz
• Box Type: Side Ported
• Internal Volume: 5.3 ft3Demensions:
• Height: 14.48"
• Width: 36.22"
• Depth 1: 19.68"
• Depth 2: 21.65"

Technical Details

• Nominal Diameter: 3" / 77.2mm
• Nominal Impedance : 4 Ohm
• AES Power Handling: 50W
• Program Power Handling: 100W
• Peak Power Handling: 200W
• Sensitivity (1w/1m) : 108dB
• Frequency Response: 1.5KHz-20KHz
• Recommended Hi Pass Crossover: 2Khz
• Pair or Single: Single

MOTOR

• Voice Coil Diameter: 1" / 25.4mm
• Voice Coil Former Material : Kapton
• Winding Material : Aluminum
• Diaphragm Material: Polyester
• Magnet Material: Neodymium
• Magnet Weight: 2 Oz
• Body Material: ABS
• Body Color / Finish: Black Matte

MEASUREMENT

• Overall Diameter: 3" / 77.2mm
• Overall Depth: 2" / 52.5mm
• Front Mount Baffle Cutout: 2.25" / 57mm
• Mounting Depth: 1.87" / 47.5mm
• Motor Diameter: 2.2" / 56mm

Install Instructions:

• For Instructions CLICK HERE!
