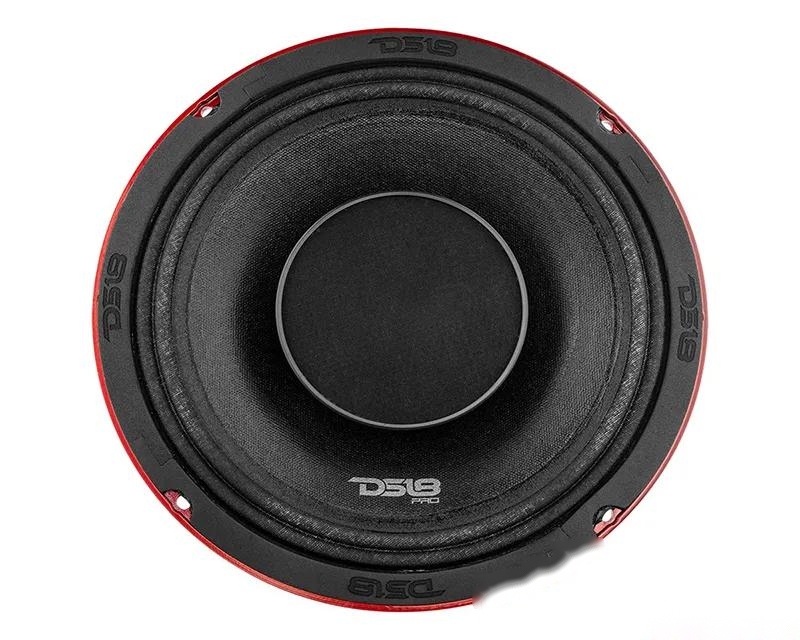

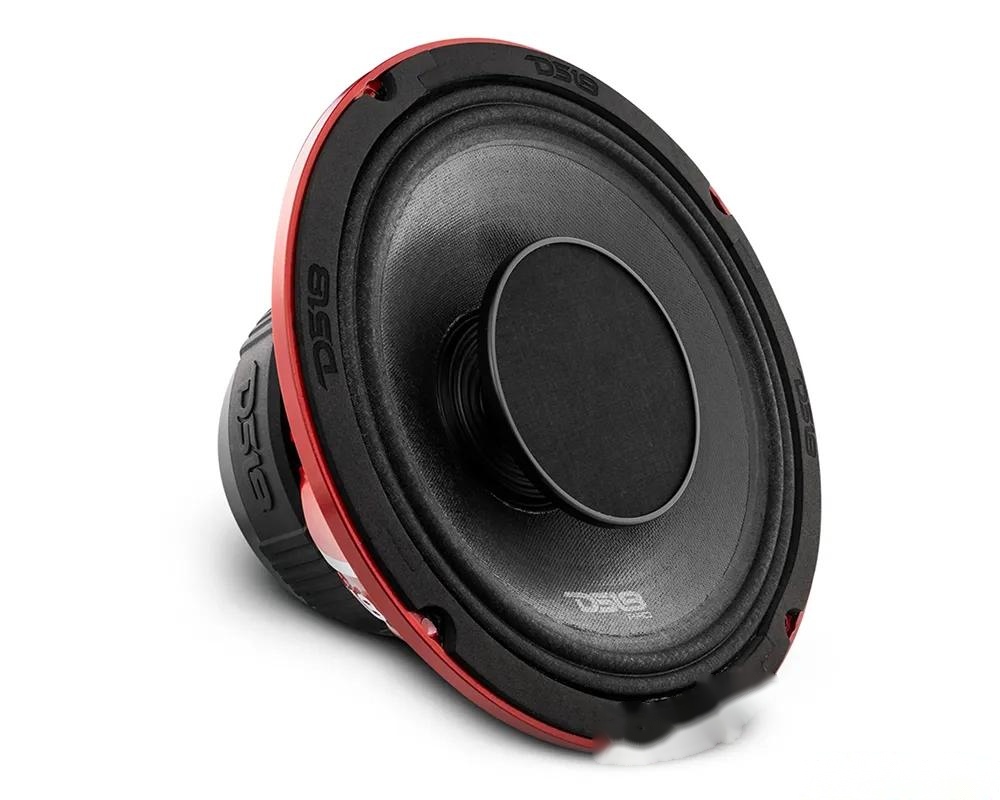

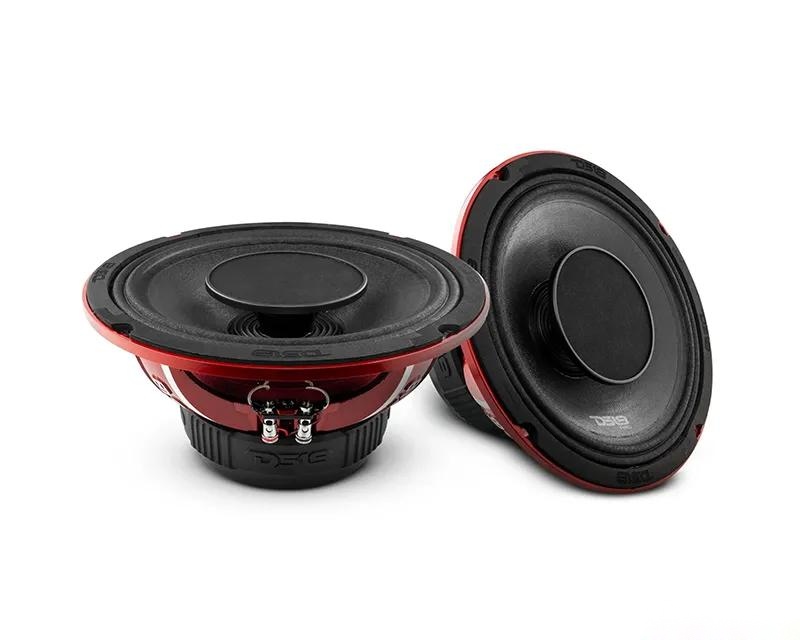

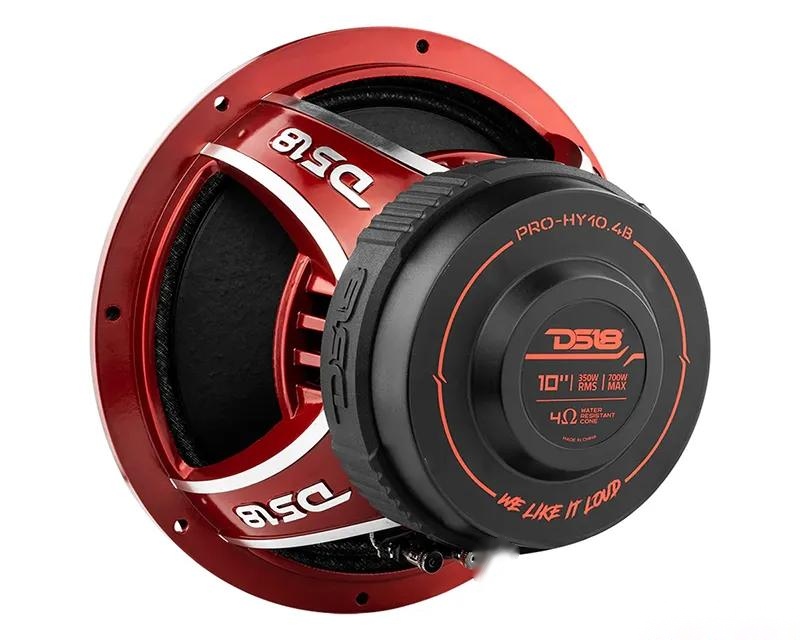

The PRO-HY10.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 10" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume. The PRO-HY10.4B features a 1.5" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound. With a maximum power handling of 700 watts and a sensitivity of 100 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound. The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY10.4B also has a nominal impedance of 4 ohms, a frequency response range of 40Hz-20KHz, and a recommended hi-pass crossover of 70Hz for improved audio performance and longevity, making it a great choice for a range of audio applications. The PRO-HY10.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.

Features :

• 10" Hybrid Coaxial Mid-Range w/Driver
• RMS Power: 350 Watts(700 Watts Peak)
• Impedance: 4 Ohm
• Ferrite & Neodymium Magnets
• Water Resistant IPX5
• 100dB

Specifications :

• Nominal Diameter : 10" / 254mm
• Nominal Impedance : 4 Ohm
• RMS Power Handling : 350W
• MAX Power Handling : 700W
• Sensitivity (1w/1m) : 100dB
• Frequency Response : 40Hz - 20KHz
• Recommended HI Pass Crossover : 70Hz
• Number of ways : 2 ways
• Pair or Single : Single
• Grill Included : Yes
• Woofer Specifications
• Voice Coil Diameter : 2" / 50.8mm
• Voice Coil Former Material : Glass Fiber
• Winding Material : CCAW
• Cone Material : Water Resistant Paper (IPx5)
• Surround Material : Cloth
• Basket Material : Aluminum
• Basket Color/Finish : Matte Black
• Magnet Material : Ferrite
• Magnet Weight : 49 Oz
• Displacement Volume : 2.86L / 0.1ft3
• Thiele & Small Parameters
• Equivalent Volume Vas : 21.8L / 0.76ft3
• Excursion (one way) Xmax : 10mm
• Free Air Resonance Fs : 95Hz
• Mechanical Factor Qms : 12.59
• Electrical Factor Qes : 0.995
• Total Factor Qts : 0.922
• Mechanical Mass Mms : 26.78g
• Mechanical Compliance Cms : 0.125 mm/N
• BL Factor BL : 6.851
• Voice Coil Inductance Le : 0.313mH
• Cone Area Sd : 352.99 Cm2
• DC Resistance Re : 3.4 ohms
• Mechanical Mass w/o air Mmd : 25g
• Driver Specifications
• Voice Coil Diameter : 1.5" / 38.6mm
• Voice Coil Former Material : Kapton
• Winding Material : CCAW
• Diaphragm Material : Titanium
• Magnet Material : Neodymium
• Horn Diameter : 4.25" / 108mm
• Speaker Measurement
• Overall Diameter : 10.3" / 261.5mm
• Overall Depth : 5.7" / 144.4mm
• Front Mount Baffle Cutout : 9" / 231mm
• Mounting Depth : 5.31" / 135mm
• Motor Diameter : 5.7" / 145mm
