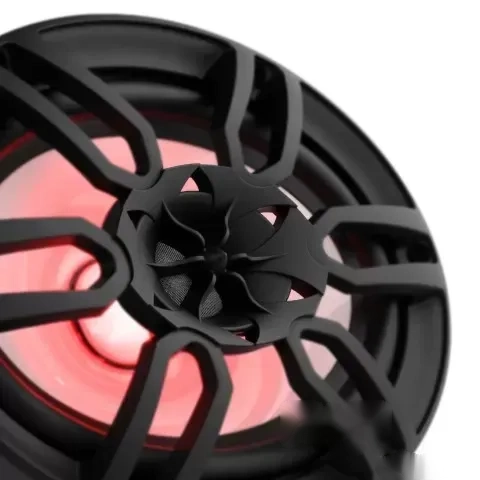

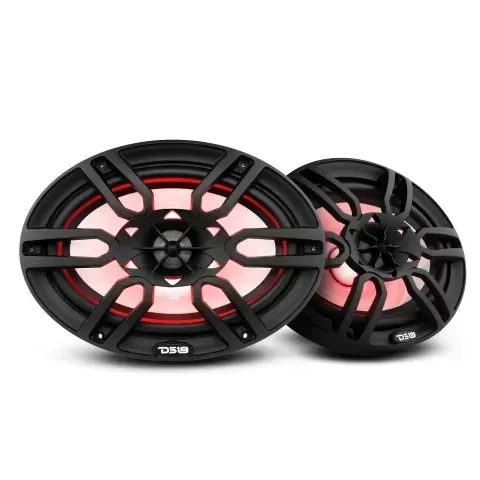

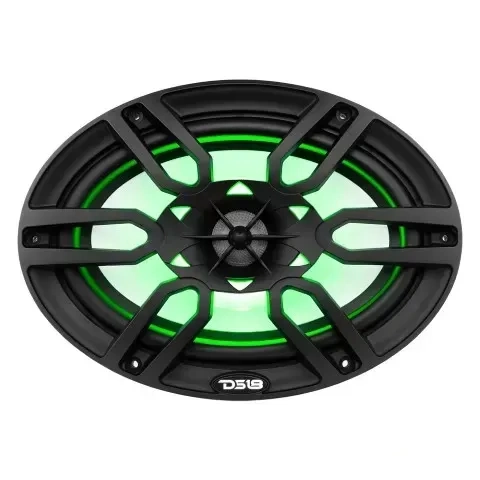

The NXL-69 is a waterproof IP-65 rated 6x9 Coaxial speaker made for extreme loudness while you are out in the elements.

This speaker boasts a power rating of 125 Watts RMS, making it capable of high volume and clarity in open air environments. This high powered marine grade speaker also has included RGB lighting easily integrated into your system for amazing looks. The powerful 6x9 cone greatly accompanies the built-in coaxial tweeters sound range. The NXL-69 has a sensitivity rating of 92 dB, meaning it does not need tons of power to get to high volume levels.

This waterproof speaker was made to last for years with huge amounts of research and development behind it. All users needing a tough, durable, and extremely loud outdoor speaker with amazing sound quality will be ecstatic about the investment they just made.

Features:

• 6x9" Waterproof Coaxial with RGB lighting
• Max Power Handling: 375 watts
• RMS Power Handling: 125 watts
• Frequency Response: 40Hz-20Khz
• Voice Coil Diameter: 1.4"
• Voice Coil Material: Kapton
• Impedance: 4-Ohm
• Sensitivity: (1W/1M) 94Db
• Magnet Weight: 24 Oz + .75 Oz
• Magnet Material: Ferrite
• Mounting Depth: 3.11"
• Great For: Marine Applications, Off Road Applications, Home Studios, Bookshelf Speakers, Satellite, Surround Sound, Hi-Fi Installation, Car Audio, DIY Projects

Technical Details

• Nominal Diameter: 6X9" / 152.4x228.6mm
• Nominal Impedance: 4 ohms
• RMS Power Handling: 125W
• MAX Power Handling: 375W
• Sensitivity (1w/1m): 92dB
• Frequency Response: 40Hz-20KHz
• Recommended HI Pass Crossover: 60Hz

BODY / FEATURES

• UV Compliant: Yes, 100% Stable
• Marine Grade Type: IP65
• RGB LED: Yes, RGB integrated
• Grill Type: Injection Molded Composite ASA with UV Protection coating
• Pair: Yes

WOOFER SPECIFICATIONS:

• Voice Coil Diameter: 1.4" / 35.5mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Injection Molded Polypropylene + UV Compliant
• Surround Material: Butyl (Rubber)
• Basket Material: High Temp Injection Molded Composite with UV Protection coating
• Magnet Material: Ferrite (Y35) + Neodymium (N35)
• Magnet Weight: 24oz + 0.75oz

TWEETER SPECIFICATIONS

• Voice Coil Diameter: 1" / 25.4mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: PEN
• Magnet Material: Neodymium (N38H)
• Magnet Weight: 0.51oz

MEASUREMENT

• Overall Diameter: 7.4"x10.2" / 189x260mm
• Overall Depth: 5.52" / 115mm
• Front Mount Baffle Cutout: 8.6"x5.9" / 220x150mm
• Mounting Depth: 3.11" / 79mm
• Motor Diameter: 4.33" / 110mm

Install Instructions:

• For Instructions CLICK HERE!
