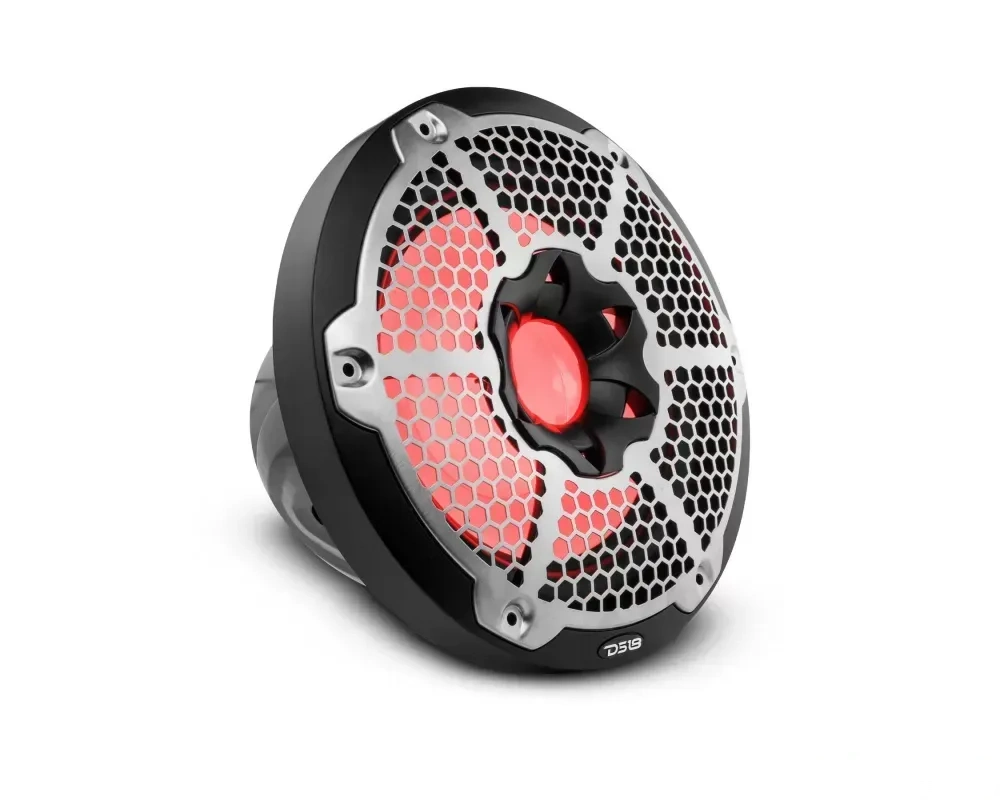

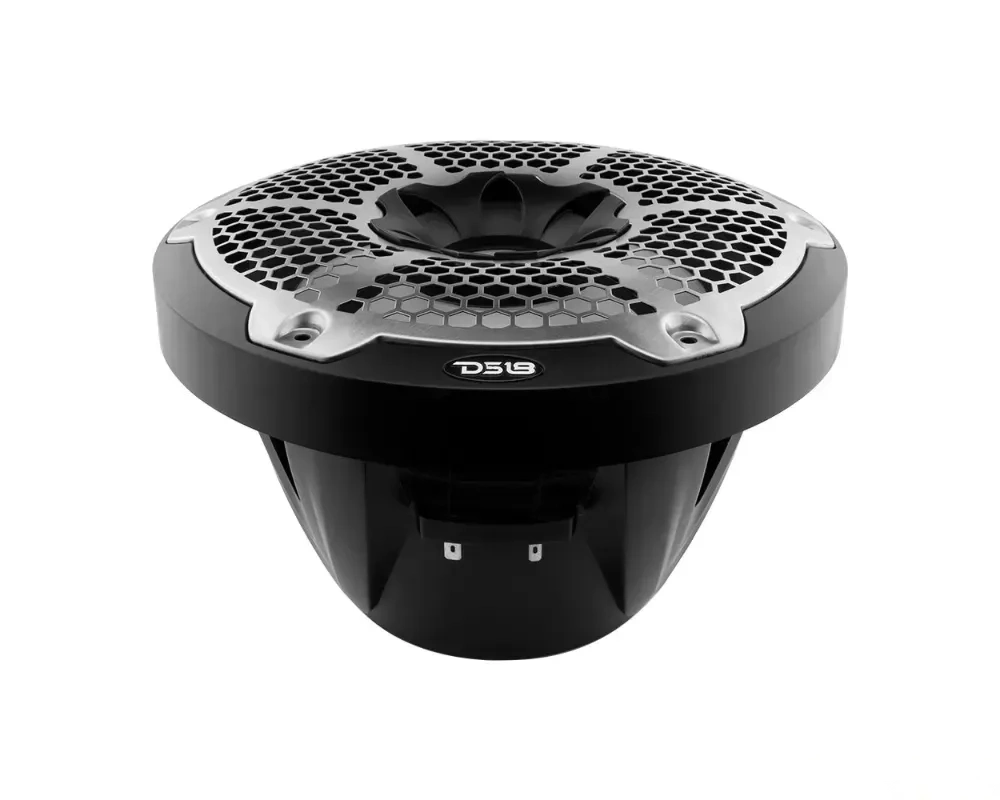

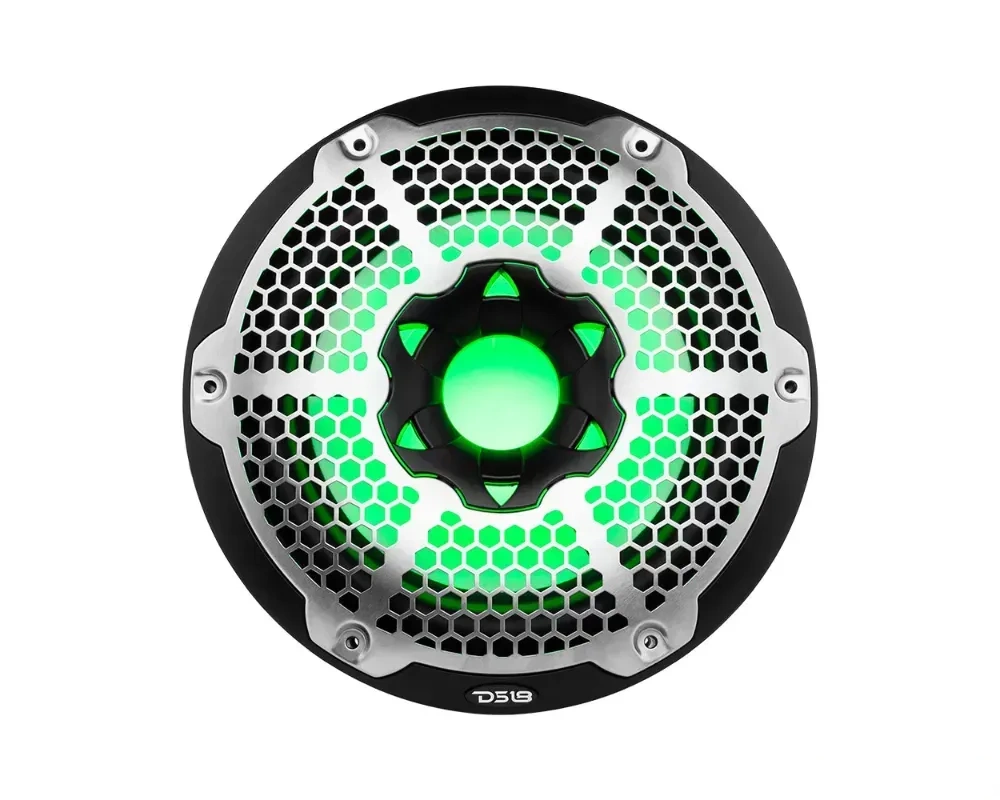

The NXL-10SUB was built from the bottom up to the the best solution to getting great sounding, bumbling bass on your boat, off-road vehicle, or any application that needs a waterproof subwoofer that will stand up to the elements.

This 10 inch subwoofer is is guaranteed to bring the BOOM to your system with very hard hitting bass in a IP65 waterproof frame. This sub also includes RGB lights that connects to any RGB 4 wire circuit for a great ambiance to match your mood or color scheme for a look that will stand out from the rest. (LED-BTC recommended)

This sub comes in a 4 Ohm single voice coil configuration which handles 300 watts RMS and 600 watts max power. These subs are best used in sealed and ported boxes for the best results.

Features:

• 10 inch IP65 waterproof subwoofer made specifically to be loud in an open space and withstand the elements.
• Single 4 Ohm 300 watts RMS 600 watts MAX power handling through the highly durable 2 inch voice coil for sustainable and loud bass.
• RGB lighting that shines brightly in low light situations which adds an amazing touch to your applications color scheme. (LED BTC recommended)

Technical Details

• Nominal Diameter: 10" / 254mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 300W
• MAX Power Handling: 600W
• Sensitivity (1w/1m): 89dB
• Frequency Response: 35-250Hz
• Recommended Low Pass Crossover: 100Hz
• UV Compliant: Yes, 100% Stable
• Marine Grade Type: IP65
• RGB LED: Yes, RGB integrated
• Grill Type: Injection Molded Composite with 316 Stainless Steel mesh
• Sold as Single: Yes
• Voice Coil Diameter: 2" / 50.8mm
• Voice Coil Former Material: Glass fiber
• Winding Material: CCAW
• Cone Material: Injection Molded Polypropylene + UV Compliant
• Surround Material: Butyl (Rubber)
• Basket Material: High Temp Injection Molded Composite with UV Protection coating
• Magnet Material: Ferrite
• Magnet Weight: 72 oz
• Overall Diameter: 10.76" / 273.3mm
• Overall Depth: 6.73" / 171mm
• Front Mount Baffle Cutout: 8.78" / 223mm
• Mounting Depth: 5" / 127.5mm
• Motor Diameter: 5.51" / 140mm

Install Instructions:

• For Instructions CLICK HERE!
