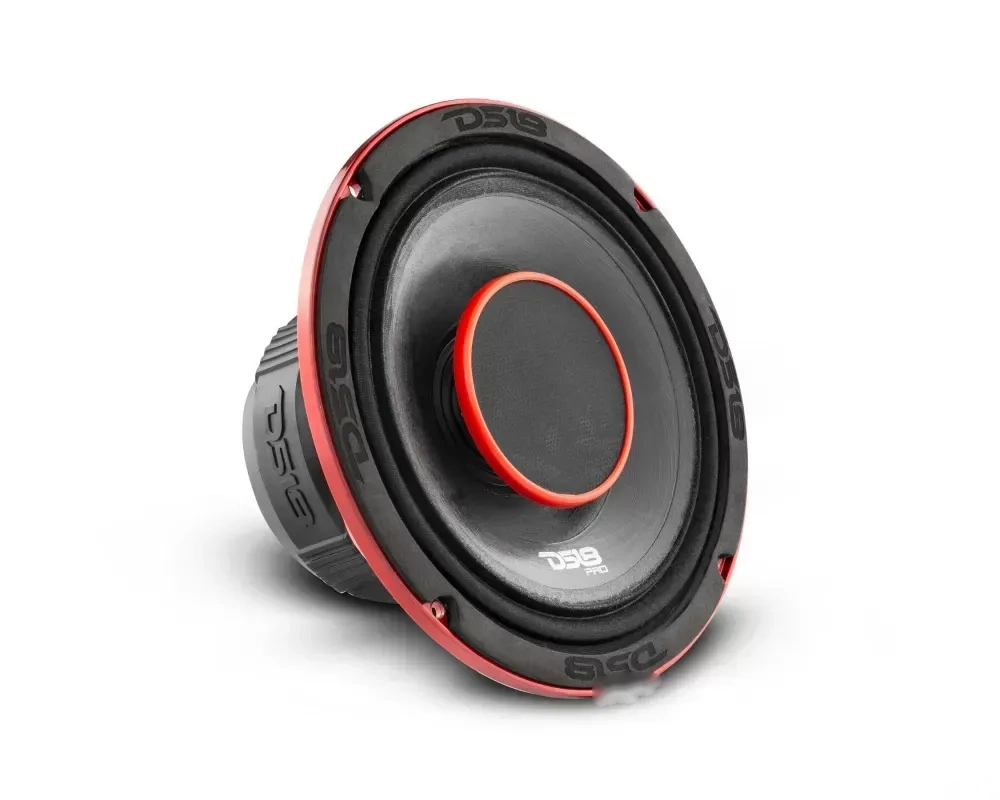

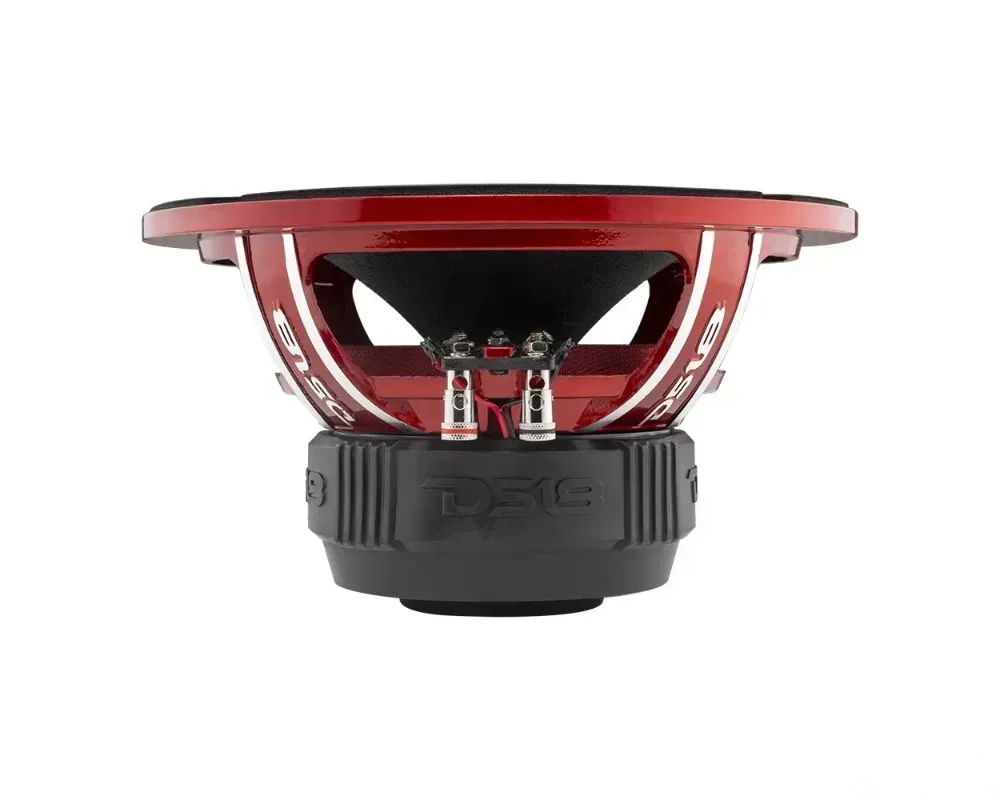

DS18's HYBRID speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered pro audio mega speaker combines both a 8" high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.

Features:

• Hybrid design combines high wattage midrange and driver together in one beautiful frame.
• High volume 8" and 1" driver rated at 250w RMS and 500 Max for crazy loud volume in a full range of frequencies.
• Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!

Technical Details

• Nominal Diameter: 8”
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 250W
• MAX Power Handling: 500W
• Sensitivity (1w/1m): 97dB
• Frequency Response: 80Hz-20KHz
• Recommended Hi Pass Crossover: 100 Hz
• Number of Ways: 2
• Pair or Single: Single

MID-RANGE SPECIFICATIONS

• Voice Coil Diameter: 1.5” / 38.6 mm
• Voice Coil Former Material: Glass Fiber
• Winding Material: CCAW
• Cone Material: Water Resistant Paper
• Surround Material: Cloth
• Basket Material: Aluminum
• Basket Color/Finish: Glossy Red
• Magnet Material: Ferrite
• Magnet Weight: 27 oz
• Displacement volume: 0.051L

THIELE & SMALL PARAMETERS

• Equivalent Volume: Vas 10.048L
• Excursion (one way): Xmax 9.2 mm
• Free Air Resonance: FS 135Hz
• Mechanical Factor: Qms 5.96
• Electrical Factor: Qes 1.321
• Total Factor: Qts 1.011
• Mechanical Mass: Mms 9.69g
• Mechanical Compliance: Cms 137.345 mm/N
• BL Factor: BL 4.58
• Voice Coil Inductance: Le 4.22mH
• Cone Area: Sd 226.98 Cm2
• DC Resistance: Re 3.4 Ohms
• Mechanical Mass w/o Air: Mmd 7.724g

DRIVER SPECIFICATIONS

• Voice Coil Diameter: 1” / 25.4 mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Titanium
• Magnet Material: Neodymium
• Horn Diameter: 3.26"

MEASUREMENTS

• Overall Diameter: 8.31" / 211mm
• Overall Depth: 4.65" / 118.2mm
• Front Mount Baffle Cutout: 7.1" / 180.3mm
• Mounting Depth: 4.29" / 109mm
• Motor Diameter: 4.59" / 116.6mm

Install Instructions:

• For Instructions CLICK HERE!
