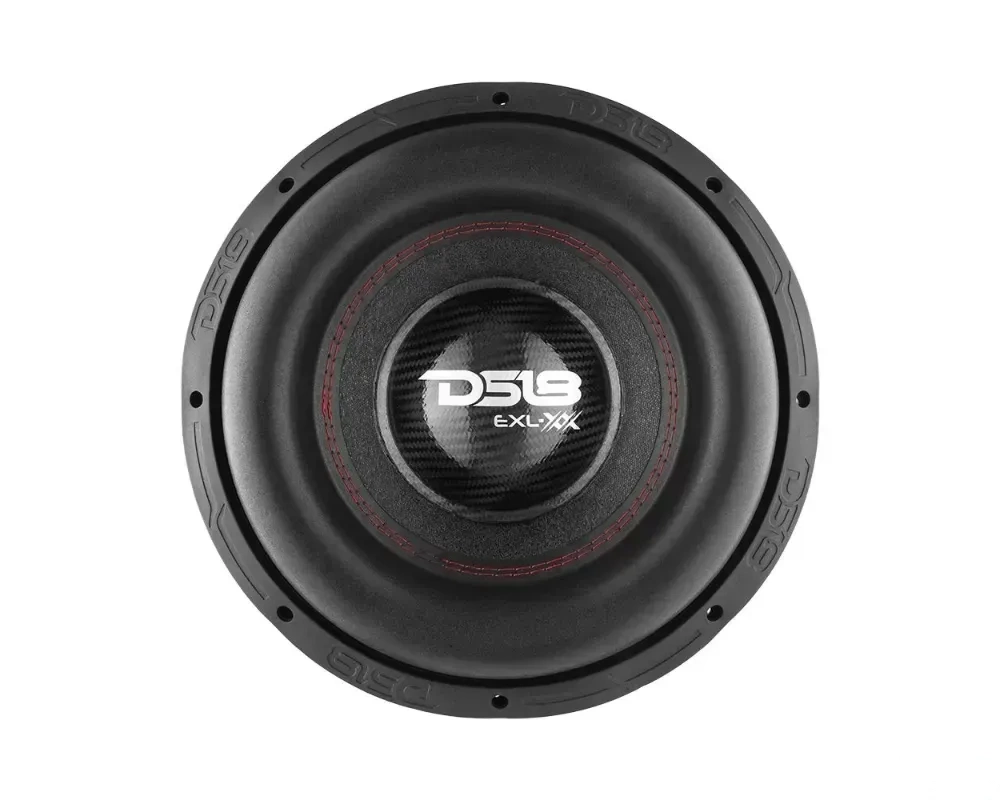

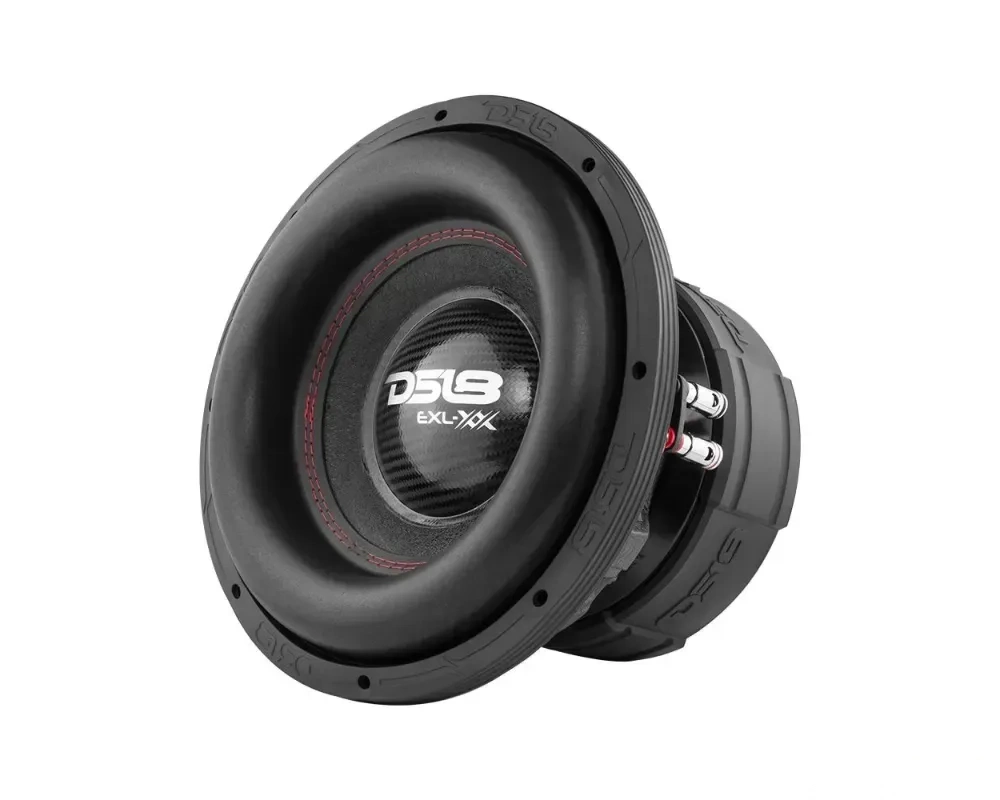

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.2HE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

Features:

• High Excursion surround for a very high amount of xmax.
• Great power handling of 2000w RMS and 4000w Max.
• Three inch black aluminum voice coil for high power handling and great efficiency.
• FS of 39 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.

Technical Details

• Nominal Diameter: 12
• Nominal Impedance: 2 + 2 Ohms
• RMS Power Handling: 2000W
• MAX Power Handling: 4000W
• Sensitivity (1w/1m): 87 dB
• Frequency Response: 20Hz - 1.3KHz
• Recommended Lo Pass Crossover: 80 Hz
• VC Diameter: 3"/ 75.6mm
• VC Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Paper
• Dust Cap Material: Glass Fiber
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Black
• Magnet Material: Ferrite
• Magnet Weight: 306 Oz
• Displacement Volume: 3.26L
• Equivalent Vol: Vas 21.986L
• Excursion(one way): Xmax 42 mm
• Free Air Resonance: Fs 39.8 Hz
• Mechanical Factor: Qms 5.128
• Electrical Factor: Qes 0.529
• Total Factor: Qts 0.468
• Moving Mass: Mms 302.158 g
• Compliance: Cms 0.025 mm/N
• Bl Factor: BL 16.523
• VC Inductance: Le 6.9 mH
• Diaphragm Area: Sd 433.74 cm²
• Dc Resistance: Re 2 + 2 Ohms
• Efficiency Bandwidth Product: EBP 75.2
• Overall Diameter: 12.6" / 321mm
• Overall Depth: 9.25" /235mm
• Front Mount Baffle Cutout: 11.1" / 282mm
• Mounting Depth: 7.87" / 200mm
• Motor Diameter: 8.89" / 226mm

Install Instructions:

• For Instructions CLICK HERE!
