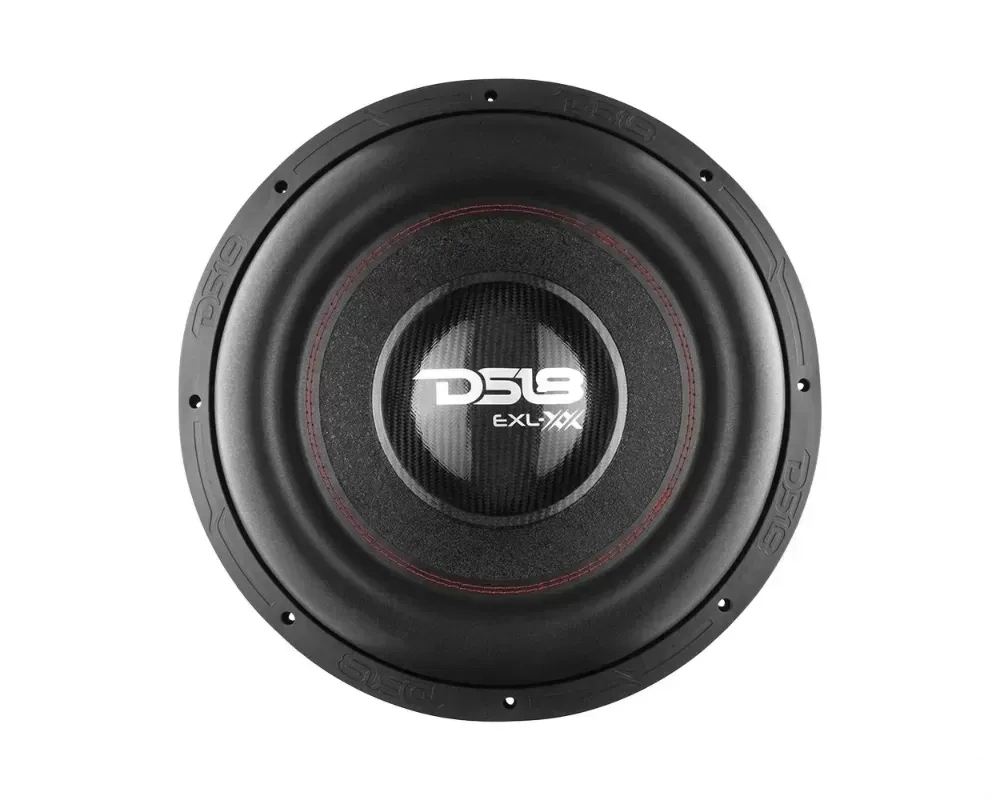

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX15.4HE is the answer to that. This subwoofer is a high teir addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibils, and loudness altogether for a real competition bass experience.

Features:

• High Excursion surround for a very high amountof XMAX.
• Great power handling of 2000w RMS and 4000w Max.
• Three inch black aluminum voice coil for high power handling and great efficiency.
• FS of 35 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.

Technical Details

• Nominal Diameter: 15
• Nominal Impedance: 4 + 4 Ohms
• RMS Power Handling: 2000W
• MAX Power Handling: 4000W
• Sensitivity (1w/1m): 88 dB
• Frequency Response: 20Hz - 1.5KHz
• Recommended Lo Pass Crossover: 80 Hz
• VC Diameter: 3" / 75.6mm
• VC Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Paper
• Dust Cap Material: Glass Fiber
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Black
• Magnet Material: Ferrite
• Magnet Weight: 306 Oz
• Displacement Volume: 3.26L
• Equivalent Vol: Vas 29.965L
• Excursion(one way): Xmax 42 mm
• Free Air Resonance: Fs 35.6 Hz
• Mechanical Factor: Qms 7.098
• Electrical Factor: Qes 0.68
• Total Factor: Qts 0.62
• Moving Mass: Mms 410.638 g
• Compliance: Cms 0.027 mm/N
• Bl Factor: BL 19.865
• VC Inductance: Le 11.25 mH
• Diaphragm Area: Sd 804.25 cm²
• Dc Resistance: Re 3.6 + 3.6 Ohms
• Efficiency Bandwidth Product: EBP 52.3
• Overall Diameter: 15.59" / 396mm
• Overall Depth: 10.24" / 260mm
• Front Mount Baffle Cutout: 13.98" / 355mm
• Mounting Depth: 8.86" / 225mm
• Motor Diameter: 8.86" / 225mm

Install Instructions:

• For Instructions CLICK HERE!
