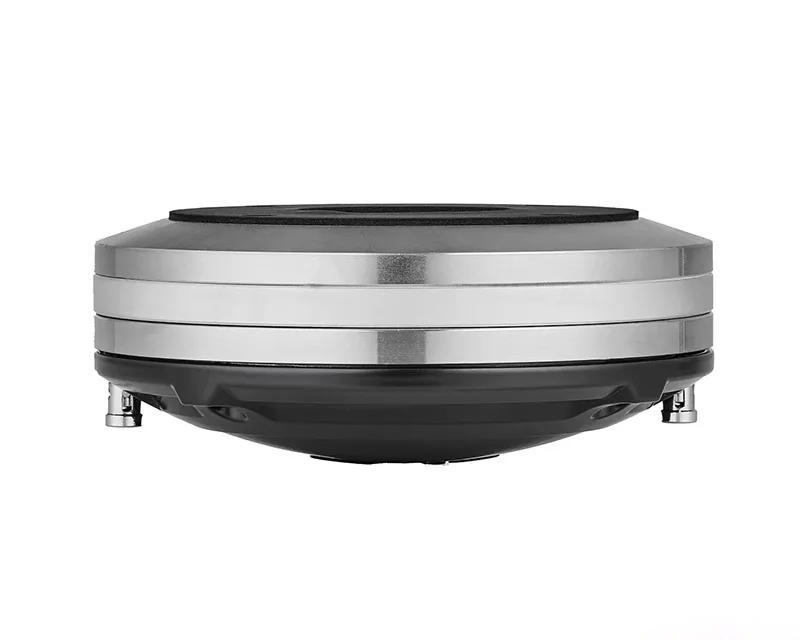

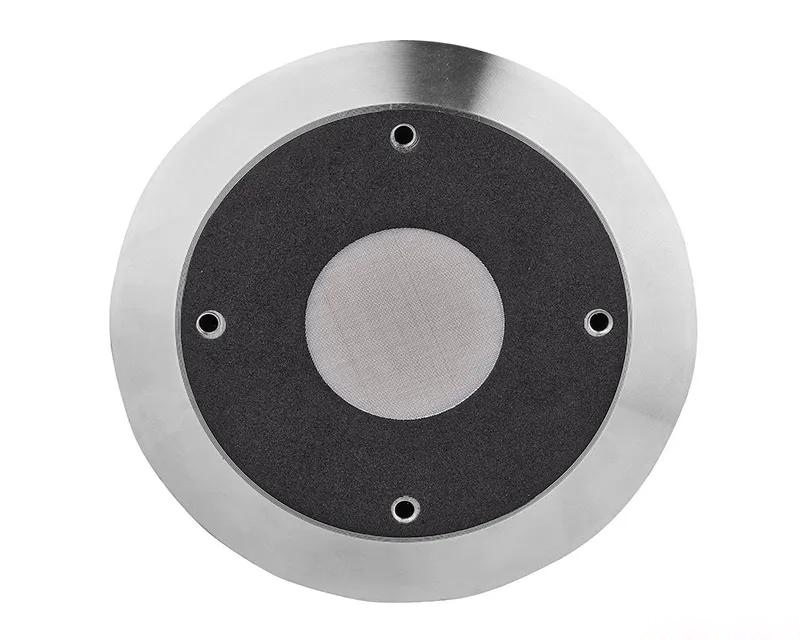

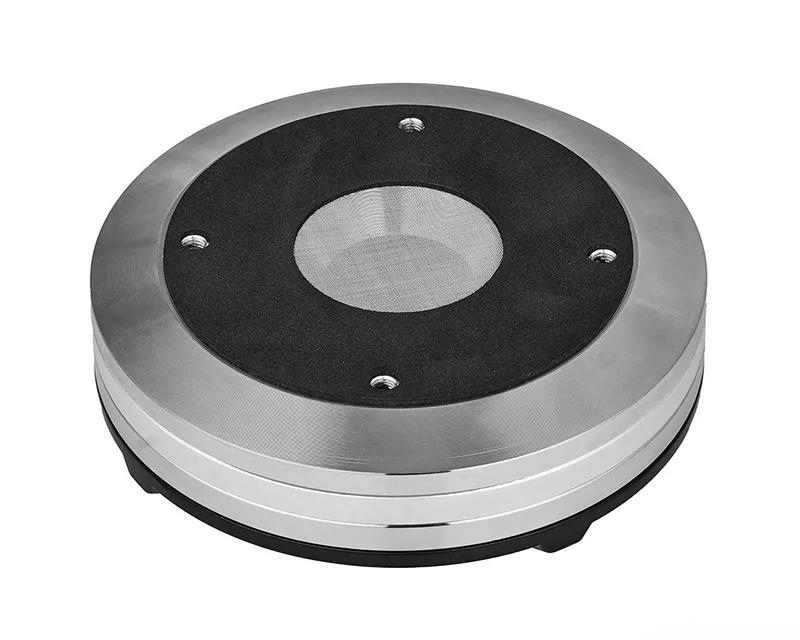

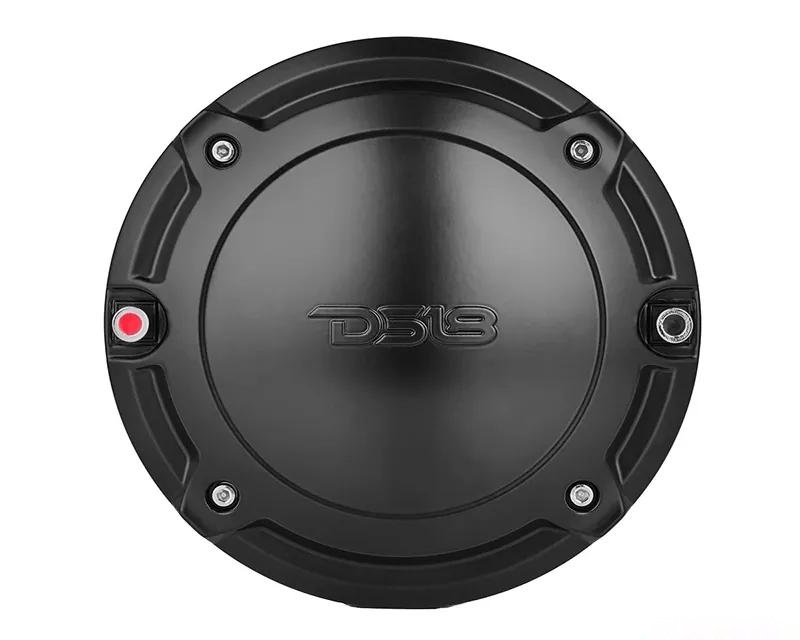

DS18's PRO-DN24Ti.8 is a screaming powerhouse designed to deliver exceptional performance and high frequency clarity. DS18's PRO-DN24Ti.8 features a 2" throat diameter, allowing for seamless integration with any existing audio system. The bolt-on installation type ensures a secure fit, and its nominal impedance of 8 Ohms guarantees compatibility with a wide range of audio setups. Featuring an AES Power Rating of 250W, a Program Power Rating of 500W, and a Peak Power Rating of 1000W, the PRO-DN24Ti.8 handles immense power with unparalleled accuracy. The PRO-DN24Ti.8's sensitivity of 109dB (1w/1m), allows it to effortlessly fill any venue with rich, immersive sound: while it's frequency response of 500Hz-20KHz ensures crystal-clear audio reproduction across the entire audible spectrum. Crafted with meticulous attention to detail, this compression driver features a 4" voice coil diameter attached to a titanium diaphragm and neodymium magnet for exceptional durability and efficiency, guaranteeing reliable performance even under demanding conditions. Experience the DS18 Difference with our PRO-DN24Ti.8 and unlock the true potential of your sound system.

Features :

• 2" Compression Driver
• RMS Power: 250 Watts(1000 Watts Peak)
• Impedance: 8 Ohm ~ 109dB
• Neodymium Magnet
• Titanium Diaphragm
• Bolt On

Specifications :

• Throat Diameter : 2" / 50.8mm
• Installation Type : Bolt-On
• Nominal Impedance : 8 Ohms
• AES Power handling : 250W
• Program Power Handling : 500W
• Peak Power handling : 1000W
• Sensitivity (1w/1m) : 109dB
• Frequency Response : 500Hz-20KHz
• Recommended Hi Pass Crossover : 600Hz
• Sold in Pair or Single : Single
• Body / Features

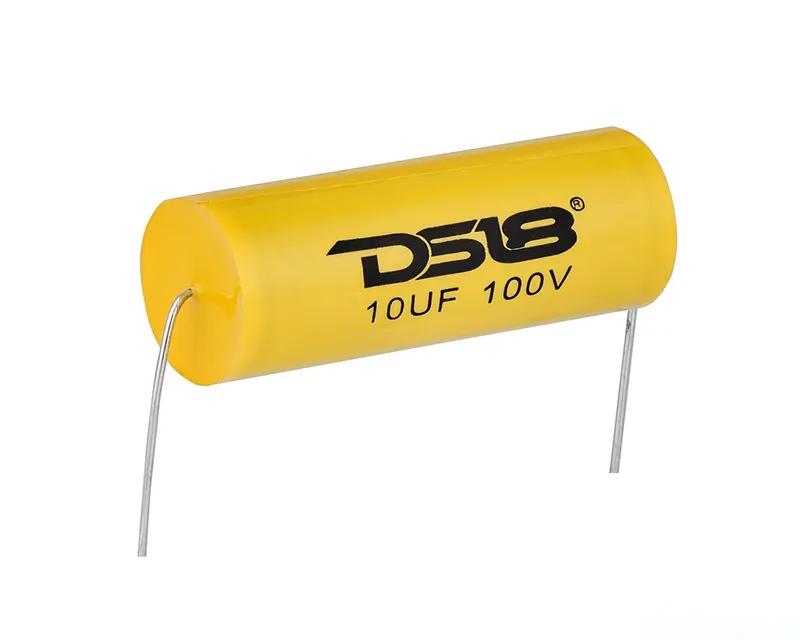

• Filter (Bass Blocker) : 10Uf/100V
• Body Material : Aluminum
• Body Color / Finish : Black / Machined
• Motor
• Voice Coil Diameter : 4" / 101.6mm
• Voice Coil Former Material : Kapton
• Winding Material : CCAW
• Diaphragm Material : Titanium
• Magnet Material : Neodymium
• Magnet Weight : 21.8oz
• Measurement
• Overall Diameter : 6.06" / 154mm
• Overall Depth : 2.56" / 65mm
• Bolt Pattern/Type : 4xM6 - 4" /102mm

Install Instructions :

• For Instructions CLICK HERE
