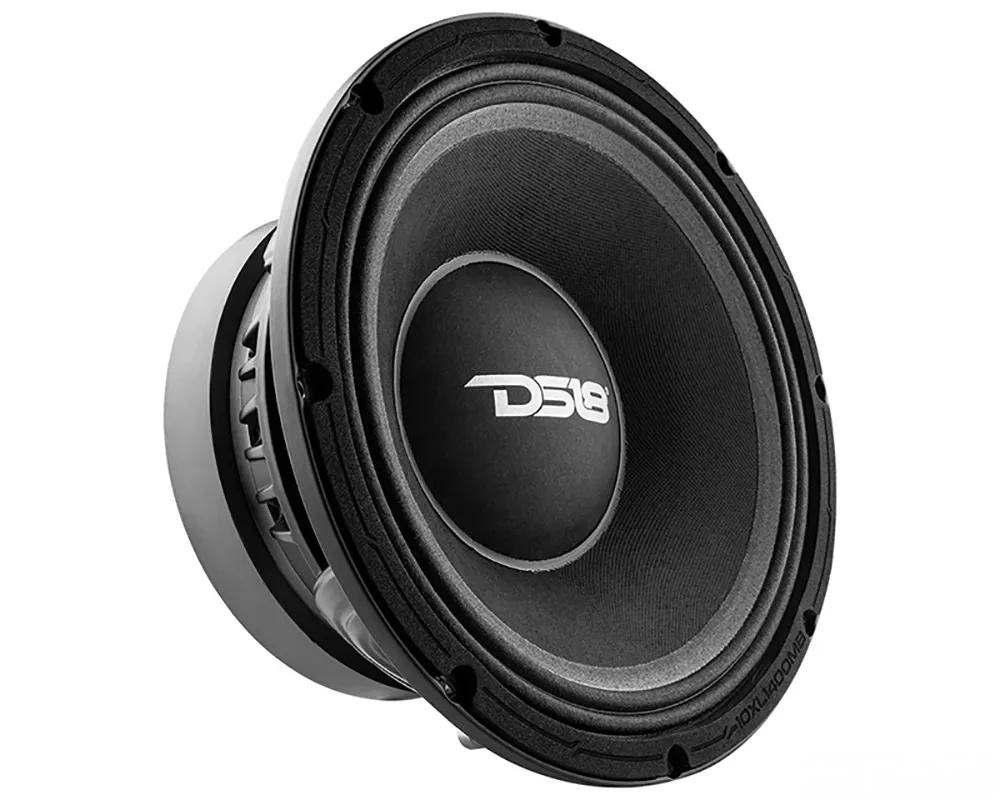

DS18's 10XL1400MB-8 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music. DS18's 10XL1400MB-8 stands head and shoulders above the midbass competition. This 10 inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup. With power handling of 700W RMS and 1400W MAX these speakers are guaranteed to blow you away. The frequency response of 40Hz-5KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98 dB guarantees crystal-clear sound reproduction, even in large venues. Crafted with precision, DS18's 10XL1400MB-8 features a 3.5" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed. Elevate your audio game with the DS18 10XL1400MB-8. Immerse yourself in the richness and clarity of your favorite music like never before.

Features :

• 10" Mid-Bass
• MAX Power: 1400 Watts
• RMS Power: 700 Watts
• Impedance: 8-Ohm
• Ferrite Magnet
• 98dB

Specifications :

• Nominal Diameter : 10" / 254mm
• Nominal Impedance : 8 Ohm
• RMS Power Handling : 700 watts
• MAX Power Handling : 1400 watts
• Sensitivity (1w/1m) : 98dB
• Frequency Response : 40Hz-5KHz
• Recommended HI Pass Crossover : 80Hz
• Sold in Pair or Single : Single
• Grill Included : No
• Motor
• Voice Coil Diameter : 3.5" / 89mm
• Voice Coil Former Material : Kapton
• Winding Material : CCAW (2 Layers IN/OUT)
• Cone Material : Non-pressed Paper
• Dust Cap Material : Paper
• Bullet Material : N/A
• Bullet Color/Finish : N/A
• Surround Material : Cloth
• Basket Material : Aluminum
• Basket Color/Finish : Satin Black
• Magnet Material : Ferrite
• Magnet Weight : 93 Oz
• Displacement Volume : 1.44L / 0.051ft3
• Thiele & Small Parameters
• Equivalent Volume Vas : 55.8L / 1.97ft3
• Excursion (one way) Xmax : 4mm
• Free Air Resonance Fs : 70Hz
• Mechanical Factor Qms : 7.14
• Electrical Factor Qes : 0.42
• Total Factor : 0.4
• Mechanical Mass Mms : 40g
• Mechanical Compliance Cms : 0.12mm/N
• BL Factor BL : 16.63
• Voice Coil Inductance Le : 0.39mH
• Cone Area Sd : 363cm²
• DC Resistance Re : 5.5 ohm
• Mechanical Mass w/o air Mmd : 45
• Measurement
• Overall Diameter : 10.3" / 261.5mm
• Overall Depth : 4.93" / 125mm
• Front Mount Baffle Cutout : 9.2" / 233mm
• Mounting Depth : 4.4" / 114mm
• Motor Diameter : 7.48" / 190mm

Install Instructions :

• For Instructions CLICK HERE
